OIK300810 VHM-Bohrer d1m7=8,100
Ordernumber
5055247
Solid carbide drill without internal cooling 3xD
Material: VHM TiAlN
Tolerance: m7
Drill bit: 140°
Shank: HA/HB/HE
Product data
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.). | VHM TiAlN |
coating [COATN] Description of coating. | PVD |
| number of edges [NOF] | 2 |
| twist direction [FHH] | R |
| cutting direction [HAND] | R |
| Schneidendurchmesser - d1 | 8.1 |
| Typ | U |
drill tip angle Specifies the angle of the drill tip. | 140 |
| Gesamtlänge - L1 | 89 |
| Nutenlänge - L2 | 47 |
Type of shank Describes the design of the shank to machine side. | HA |
| Aufnahmedurchmesser - d2 | 10 |
| Schaftlänge - L3 | 40 |
Tolerance cutting diameter Specifies the tolerance class of the cutting diameter. | m7 |
Drilling depth Specifies the permissible drilling depth. | 3 x D |
Internal coolant supply Indicates whether an internal coolant supply is available. | nein |
| Klassifizierung | DIN 6537 |

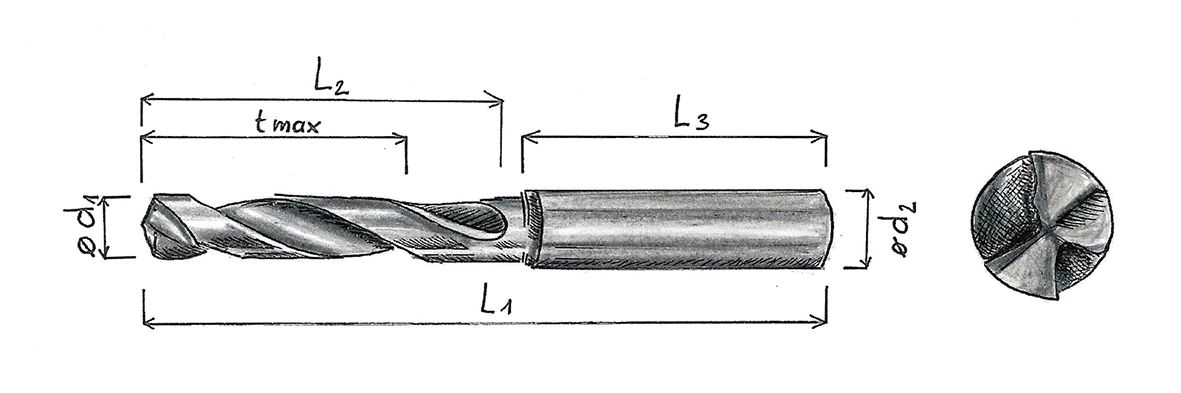

2D Drawing
