RCMX 1204MO LCP25T

Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)

Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).

The minimum delivery quantity must be fulfilled for an order.

Description of the tool system.

P – Steel, P1
Material classification:

1.0037 (S25GT)
1.0503 (C45)
1.0718 (11SMnPb30)
1.1158 (C25E)
1.1191 (C45E)
1.1203 (C55E)
1.1274 (C101E, C100S)

P – Steel, P2
Material classification:

1.2312 (40CrMnNiMoS8-6-4)
1.2714 (55NiCrMoV7)
1.3505 (100Cr6)
1.6587 (17CrNiMo6, 18CrNiMo7-6)
1.7225 (42CrMo4)
1.7361 (32CrMo12)
1.7715 (14MoV6-3)
1.8523 (39CrMoV13-9)

P – Steel, P3
Material classification:

1.2085 (X33CrS16)
1.2343 (X38CrMoV5-1)
1.2379 (X153CrMoV12)
1.2581 (X30WCrV9-3)
1.2601 (X165CrMoV12)
1.3243 (HS6-5-2-5)
1.3343 (HS6-5-2)
1.7701 (51CrMoV4)

P – Steel, P4
Material classification:

1.4006 (X12Cr13, X10Cr13)
1.4034 (X46Cr13)
1.4057 (X19CrNi17-2)
1.4510 (X3CrTi17)
1.4542 (X5CrNiCuNb16-4)
1.4747 (X80CrNiSi20)

P – Steel, P5
Material classification:

1.1120 (GS-20Mn5)
1.5419 (GS-22Mo4)
1.6571 (GS-34CrNiMo6)
1.6750 (GS-20NiCrMo3-7)
1.7231 (G42CrMo4)
1.7379 (GS-18CrMo9-10)

AExecution of indexable insert running direction

R= Indexable insert right hand cutting

L= Indexable insert left hand cutting

N= for both cutting directions

Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).

Description of coating.

Indicates the standard to which the product belongs.

M – Stainless steel, M1
Material classification:

1.4301 (X5CrNi18-10+F3:F21A3F3: F23F3:F24A3F3:F23F3:FF3:F24)
1.4305 (X8CrNiS18-9)
1.4401 (X5CrNiMo17-12-2, X4CrNiMo17-12-2, X5CrNiMo18-10)
1.4404 (X3CrNiMo17-12-2)
1.4541 (X6CrNiTi18-10)
1.4571 (X6CrNiMoTi17-12-2)
1.4841 (X15CrNiSi25-20)
1.4958 (X5NiCrAlTi31-20)

coating type CVD or PVD.

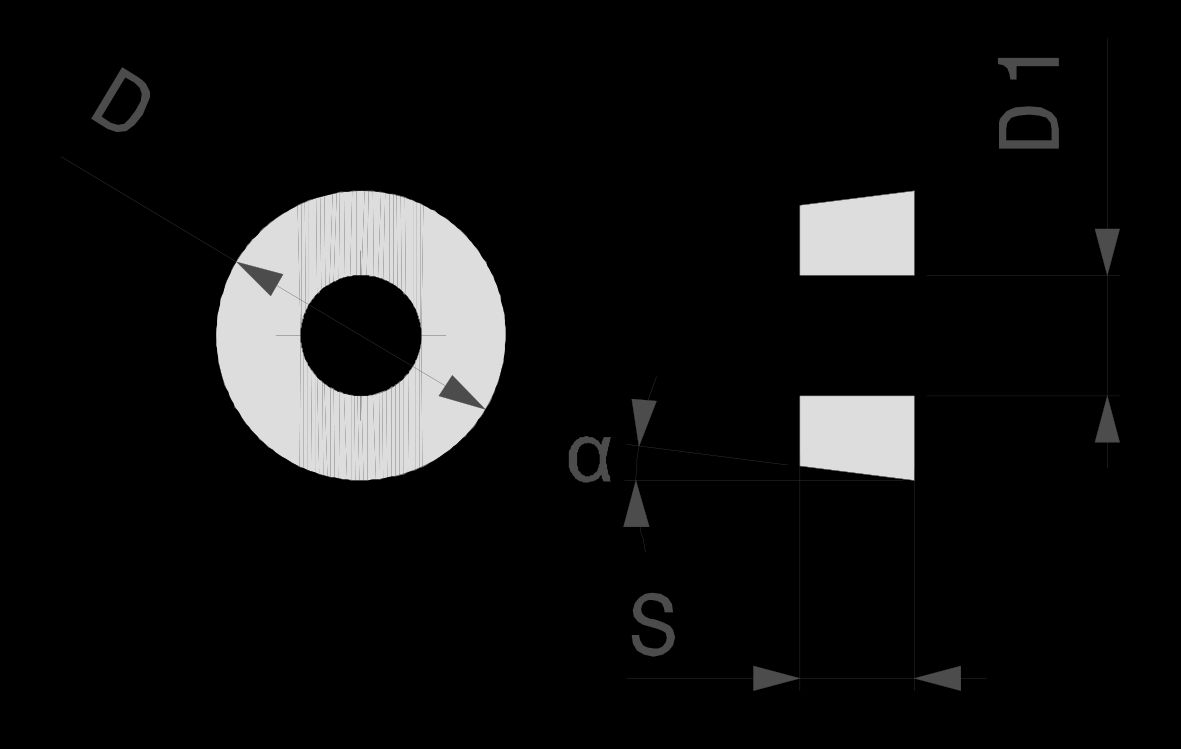

The size of the plate is specified in millimetres.

The insert-type describes the shape of the insert.
Example: CNMG, DCMT, XCMT etc.
