SCMT 09T308-BSM LCP15T

Cutting Turning Indexable inserts Turning

Ordernumber

5060194

Indexable insert for turning, internal & external

The wear-resistant grade LCP15T is particularly suitable for applications with very high cutting speeds in steel and cast materials.

BSM is a finishing geometry, especially suitable for chamfering (entire cutting edge length). Exact application details can be found in product data.

Product data

chip breaker Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)	BSM
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	LCP15T
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
name of tool system Description of the tool system.	Drehen-ISO
P1 main P – Steel, P1 Material classification: 1.0037 (S25GT) 1.0503 (C45) 1.0718 (11SMnPb30) 1.1158 (C25E) 1.1191 (C45E) 1.1203 (C55E) 1.1274 (C101E, C100S)	140 - 360
P2 main P – Steel, P2 Material classification: 1.2312 (40CrMnNiMoS8-6-4) 1.2714 (55NiCrMoV7) 1.3505 (100Cr6) 1.6587 (17CrNiMo6, 18CrNiMo7-6) 1.7225 (42CrMo4) 1.7361 (32CrMo12) 1.7715 (14MoV6-3) 1.8523 (39CrMoV13-9)	120 - 300
P3 main P – Steel, P3 Material classification: 1.2085 (X33CrS16) 1.2343 (X38CrMoV5-1) 1.2379 (X153CrMoV12) 1.2581 (X30WCrV9-3) 1.2601 (X165CrMoV12) 1.3243 (HS6-5-2-5) 1.3343 (HS6-5-2) 1.7701 (51CrMoV4)	100 - 260
P4 main P – Steel, P4 Material classification: 1.4006 (X12Cr13, X10Cr13) 1.4034 (X46Cr13) 1.4057 (X19CrNi17-2) 1.4510 (X3CrTi17) 1.4542 (X5CrNiCuNb16-4) 1.4747 (X80CrNiSi20)	90 - 200
P5 main P – Steel, P5 Material classification: 1.1120 (GS-20Mn5) 1.5419 (GS-22Mo4) 1.6571 (GS-34CrNiMo6) 1.6750 (GS-20NiCrMo3-7) 1.7231 (G42CrMo4) 1.7379 (GS-18CrMo9-10)	110 - 260

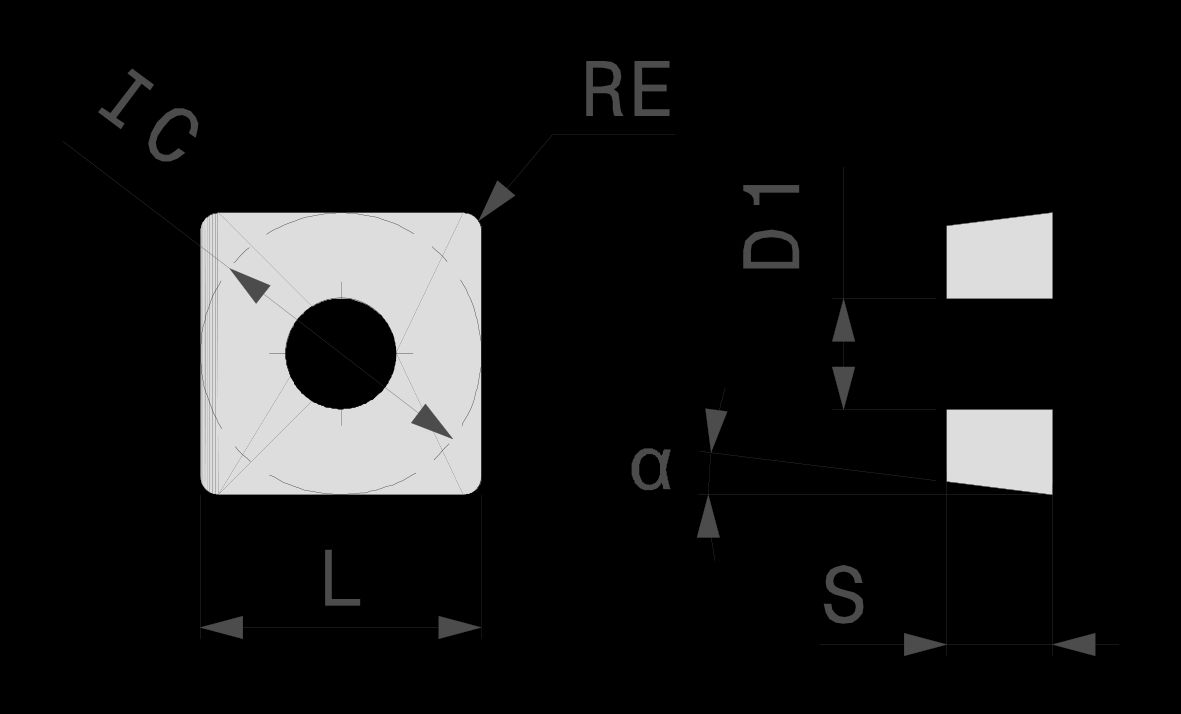

corner angles [EPSR]	90
clearance angle main cutting edge [AN]	7
length of cutting edge [L]	9.52
inner circle [IC]	9,52
cutting edge height [S]	3.97
corner radius [RE]	0.8
insert execution r/n/l [IH] AExecution of indexable insert running direction R= Indexable insert right hand cutting L= Indexable insert left hand cutting N= for both cutting directions	N
insert height [S1]	4.12
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	LCP15T
coating [COATN] Description of coating.	CVD
Norm [NSM] Indicates the standard to which the product belongs.	DIN-4000-76
K1 secondary K – Cast iron materials, K1 Material classification: 0.6010 (GG-10, GG 10) 0.6015 (GG-15, GG 15) 0.6020 (GG-20, GG 20) 0.6025 (GG-25, GG 25) 0.6030 (GG-30, GG 30) 0.6035 (GG-35, GG 35) 0.6040 (GG-40, GG 40)	170 - 320
K2 secondary K – Cast iron materials, K2 Material classification: 0.7040 (GGG-40) 0.7050 (GGG-50) 0.7060 (GGG-60) 0.7070 (GGG-70) 5.3400 (EN-GJS-800-10) 5.3403 (EN-GJS-1050-6) 5.3404 (EN-GJS-1200-3)	100 - 210
K3 secondary K – Cast iron materials, K3 Material classification: 0.8035 (GTW-35-04, EN-GJMW-350-4) 0.8040 (EN-GJMW-400-5, GTW-40-05) 0.8045 (EN-GJMW-450-7) 0.8135 (EN-GJMB 350-10) 0.8145 (EN-GJMB 450-6, GTS-45-06) 0.8155 (EN-GJMB 550-4, GTS-55-04) 0.8165 (EN-GJMB 650-2, GTS-65-02) 0.8170 (EN-GJMB 700-2, GTS-70-02)	90 - 180
coating coating type CVD or PVD.	K-alpha
insert size The size of the plate is specified in millimetres.	SCMT 09T3
edges/ insert Number of usable cutting edges per indexable insert.	4
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	SCMT
