11ILA60 LCP20T

Cutting Threading Indexable inserts Thread turning

Ordernumber

5070377

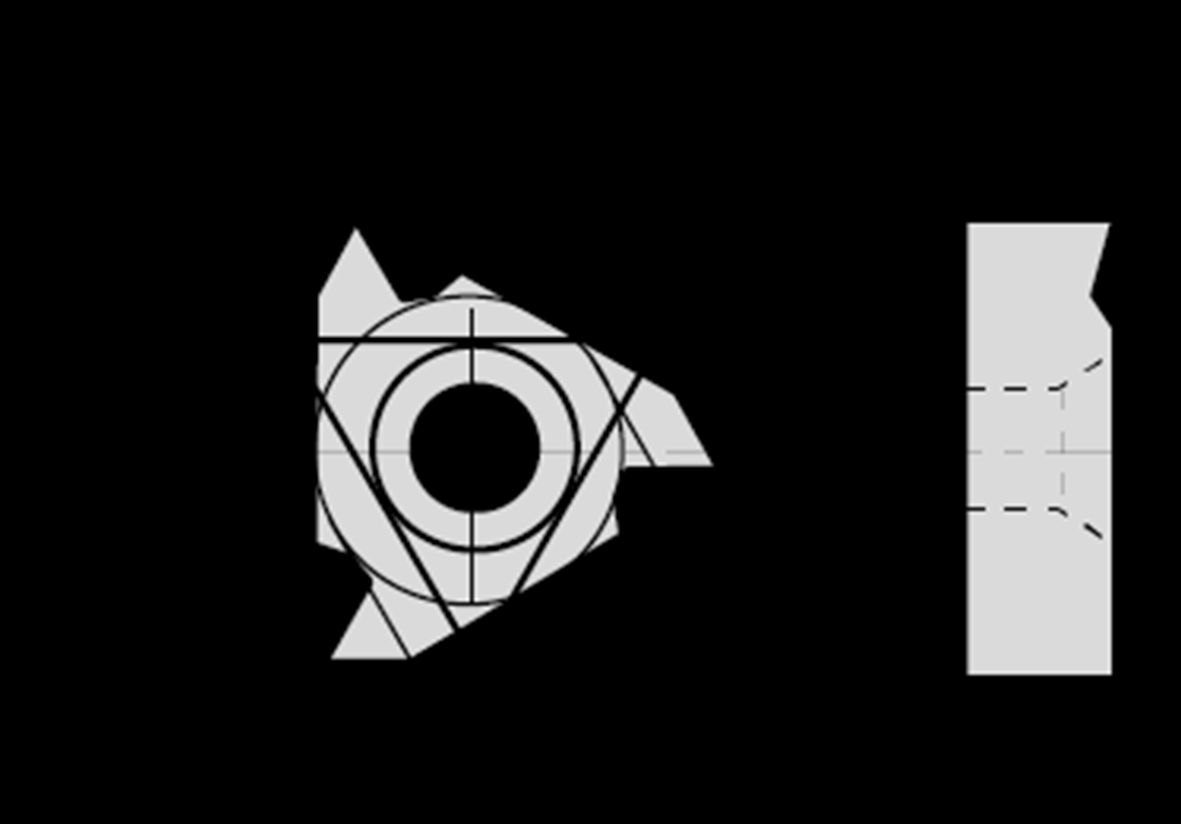

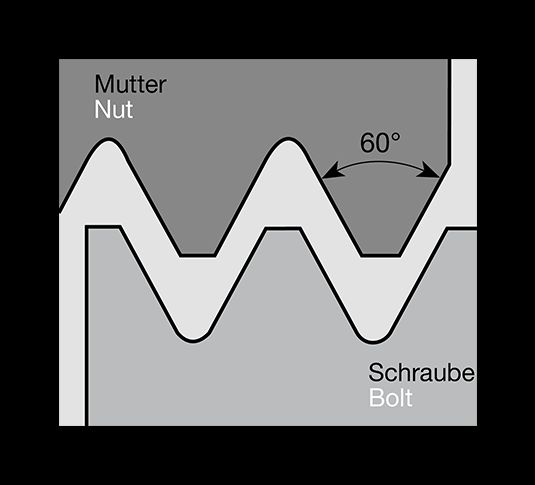

Partial Profile 60° internal threads left

Main grade for steel machining.

High breaking strength even under unfavourable conditions.

Ultra-fine-grained substrate with thin TiAIN coating.

Product data

grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	LCP20T
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
S1 main S – Super alloys, S1 Material classification: 3.7024 (Ti99.5) 3.7025x (Ti99.8) 3.7034 (Ti99.7)	25 - 65
S2 main S – Super alloys, S2 Material classification: 3.7115.1 (TiAl5Sn2.5) 3.7124 (TiCu2) 3.7164 (TiAl6V4) 3.7165 (TiAl6V4) 3.7174 (TiAl6V4Sn2)	20 - 50
S3 main S – Super alloys, S3 Material classification: 1.3912 (D1) 1.3926 (FeNi48)	30 - 70
S4 main S – Super alloys, S4 Material classification: 2.4375 (NiCu30Al3Ti) 2.4642 (NiCr30Fe) 2.4665 (NiCr22Fe18Mo) 2.4668 (NiCr19Fe19Nb5Mo3) 2.4669 (NiCr15Fe7Ti2Al) 2.4858 (NiFe30Cr21Mo3) 2.4819 (NiMo16Cr15W) 2.4856 (NiCr22Mo9Nb)	15 - 50
insert height [S1]	3
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	LCP20T
coating [COATN] Description of coating.	PVD
thread type [THFT]	M
profil angle [PNA]	60
profil angle right [PAR]	30
profil angle left [PAL]	30
tip radius [CRE]	0.05
insert execution r/n/l [IH/ HAND]	L
threading part type [TTP]	I
insert length [INSL]	11
inner circle [IC]	6.35
H1 secondary H – Hardened materials, hardened cast iron, H1 Material classification: 1.2343 52HRC (X38CrMoV5-1) 1.2767 54HRC (45NiCrMo16)	15 - 40
M1 secondary M – Stainless steel, M1 Material classification: 1.4301 (X5CrNi18-10+F3:F21A3F3: F23F3:F24A3F3:F23F3:FF3:F24) 1.4305 (X8CrNiS18-9) 1.4401 (X5CrNiMo17-12-2, X4CrNiMo17-12-2, X5CrNiMo18-10) 1.4404 (X3CrNiMo17-12-2) 1.4541 (X6CrNiTi18-10) 1.4571 (X6CrNiMoTi17-12-2) 1.4841 (X15CrNiSi25-20) 1.4958 (X5NiCrAlTi31-20)	100 - 180
M2 secondary M – Stainless steel, M2 Material classification: 1.4362 (X2CrNiN23-4 (Ally 2304)) 1.4462 (X2CrNiMoN22-5-3) 1.4501 (X2CrNiMoCuWN25-7-4) 1.4871 (X53CrMnNiN21-9) 1.4310 (X9CrNi18-8, X10CrNi18-8)	70 - 160
insert size The size of the plate is specified in millimetres.	11
edges/ insert Number of usable cutting edges per indexable insert.	3
cutting profile type	Teilprofil
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	IL
