11IR27NPT LCP20T

Cutting Threading Indexable inserts Thread turning

Ordernumber

5070434

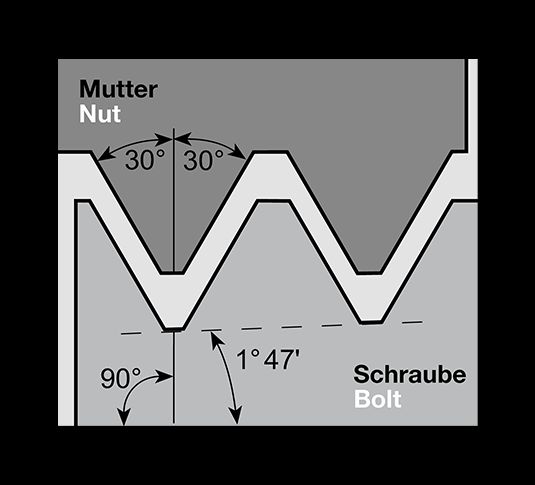

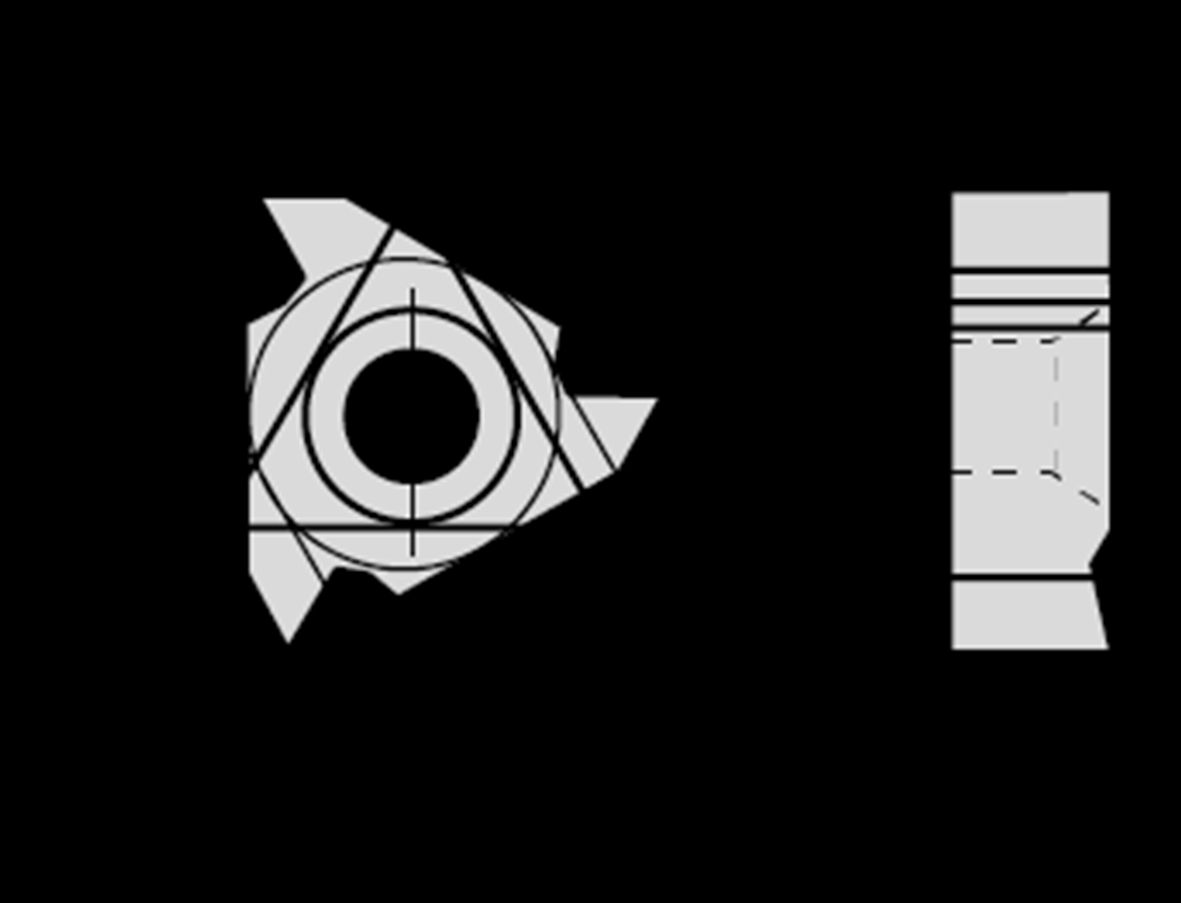

NPT Full Profile internal threads right

Main grade for steel machining.

High breaking strength even under unfavourable conditions.

Ultra-fine-grained substrate with thin TiAIN coating.

Product data

grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	LCP20T
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
M1 main M – Stainless steel, M1 Material classification: 1.4301 (X5CrNi18-10+F3:F21A3F3: F23F3:F24A3F3:F23F3:FF3:F24) 1.4305 (X8CrNiS18-9) 1.4401 (X5CrNiMo17-12-2, X4CrNiMo17-12-2, X5CrNiMo18-10) 1.4404 (X3CrNiMo17-12-2) 1.4541 (X6CrNiTi18-10) 1.4571 (X6CrNiMoTi17-12-2) 1.4841 (X15CrNiSi25-20) 1.4958 (X5NiCrAlTi31-20)	100 - 180
M2 main M – Stainless steel, M2 Material classification: 1.4362 (X2CrNiN23-4 (Ally 2304)) 1.4462 (X2CrNiMoN22-5-3) 1.4501 (X2CrNiMoCuWN25-7-4) 1.4871 (X53CrMnNiN21-9) 1.4310 (X9CrNi18-8, X10CrNi18-8)	70 - 160
insert height [S1]	3
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	LCP20T
coating [COATN] Description of coating.	PVD
thread type [THFT]	NPT
profil angle [PNA]	60
profil angle right [PAR]	30
profil angle left [PAL]	30
insert execution r/n/l [IH/ HAND]	R
threading part type [TTP]	I
insert length [INSL]	11
inner circle [IC]	6.35
S1 secondary S – Super alloys, S1 Material classification: 3.7024 (Ti99.5) 3.7025x (Ti99.8) 3.7034 (Ti99.7)	20 - 40
S2 secondary S – Super alloys, S2 Material classification: 3.7115.1 (TiAl5Sn2.5) 3.7124 (TiCu2) 3.7164 (TiAl6V4) 3.7165 (TiAl6V4) 3.7174 (TiAl6V4Sn2)	15 - 35
S3 secondary S – Super alloys, S3 Material classification: 1.3912 (D1) 1.3926 (FeNi48)	25 - 45
S4 secondary S – Super alloys, S4 Material classification: 2.4375 (NiCu30Al3Ti) 2.4642 (NiCr30Fe) 2.4665 (NiCr22Fe18Mo) 2.4668 (NiCr19Fe19Nb5Mo3) 2.4669 (NiCr15Fe7Ti2Al) 2.4858 (NiFe30Cr21Mo3) 2.4819 (NiMo16Cr15W) 2.4856 (NiCr22Mo9Nb)	15 - 40
insert size The size of the plate is specified in millimetres.	11
edges/ insert Number of usable cutting edges per indexable insert.	3
cutting profile type	Vollprofil
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	IR
