11IRA55 LCP20T

Cutting Threading Indexable inserts Thread turning

Ordernumber

5070458

Partial Profile 55° internal threads right

Main grade for steel machining.

High breaking strength even under unfavourable conditions.

Ultra-fine-grained substrate with thin TiAIN coating.

Product data

grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	LCP20T
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
P1 main P – Steel, P1 Material classification: 1.0037 (S25GT) 1.0503 (C45) 1.0718 (11SMnPb30) 1.1158 (C25E) 1.1191 (C45E) 1.1203 (C55E) 1.1274 (C101E, C100S)	120 - 250
P2 main P – Steel, P2 Material classification: 1.2312 (40CrMnNiMoS8-6-4) 1.2714 (55NiCrMoV7) 1.3505 (100Cr6) 1.6587 (17CrNiMo6, 18CrNiMo7-6) 1.7225 (42CrMo4) 1.7361 (32CrMo12) 1.7715 (14MoV6-3) 1.8523 (39CrMoV13-9)	100 - 220
P3 main P – Steel, P3 Material classification: 1.2085 (X33CrS16) 1.2343 (X38CrMoV5-1) 1.2379 (X153CrMoV12) 1.2581 (X30WCrV9-3) 1.2601 (X165CrMoV12) 1.3243 (HS6-5-2-5) 1.3343 (HS6-5-2) 1.7701 (51CrMoV4)	80 - 200
P4 main P – Steel, P4 Material classification: 1.4006 (X12Cr13, X10Cr13) 1.4034 (X46Cr13) 1.4057 (X19CrNi17-2) 1.4510 (X3CrTi17) 1.4542 (X5CrNiCuNb16-4) 1.4747 (X80CrNiSi20)	70 - 170
P5 main P – Steel, P5 Material classification: 1.1120 (GS-20Mn5) 1.5419 (GS-22Mo4) 1.6571 (GS-34CrNiMo6) 1.6750 (GS-20NiCrMo3-7) 1.7231 (G42CrMo4) 1.7379 (GS-18CrMo9-10)	80 - 190

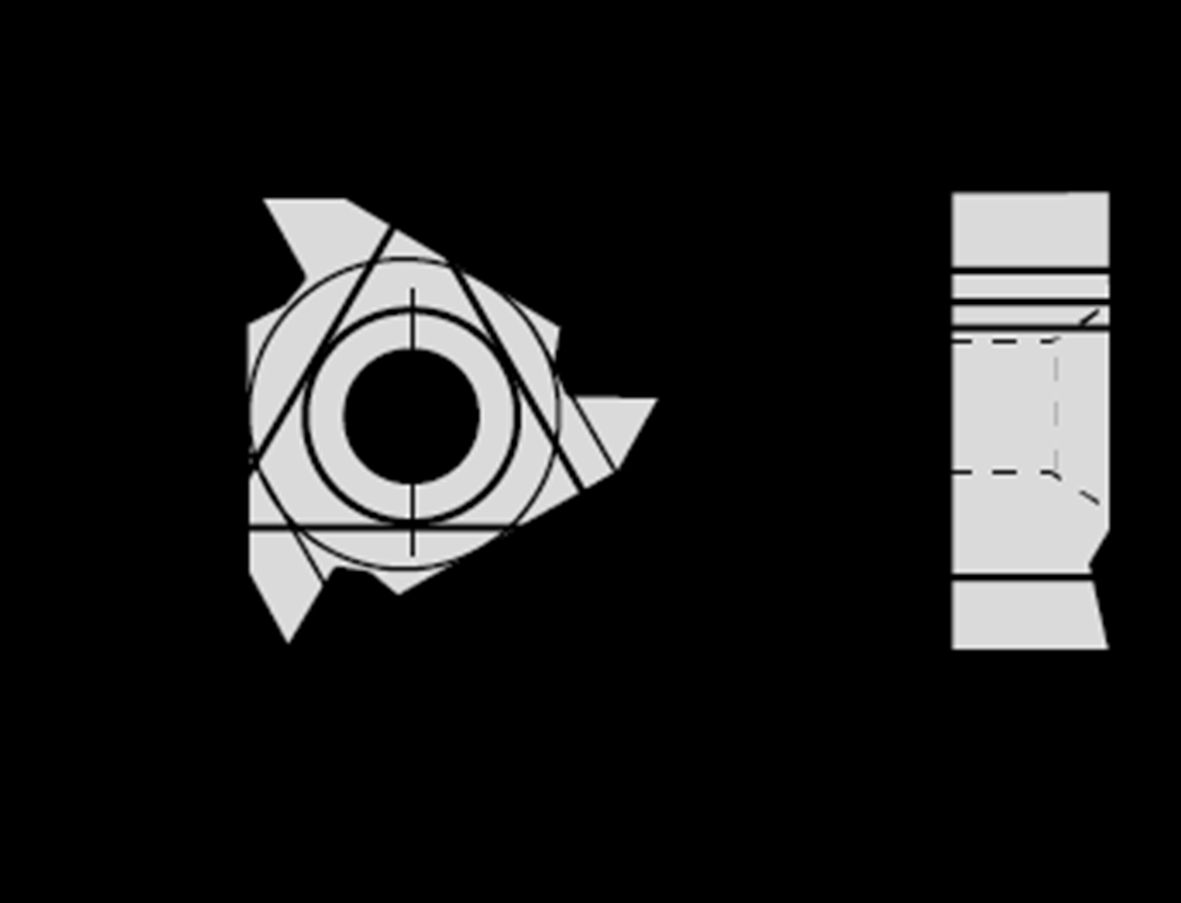

insert height [S1]	3
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	LCP20T
coating [COATN] Description of coating.	PVD
thread type [THFT]	BSP

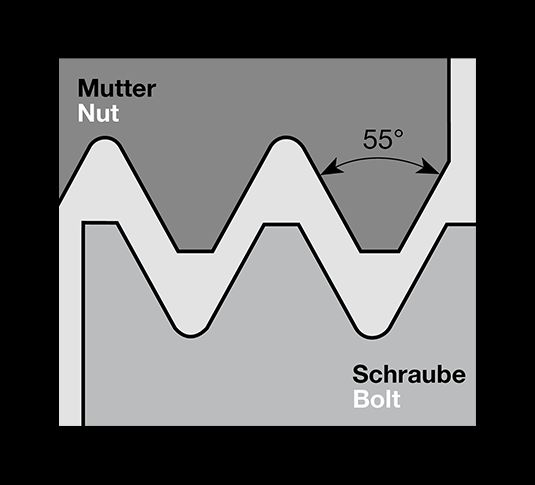

profil angle [PNA]	55
profil angle right [PAR]	27.5
profil angle left [PAL]	27.5
tip radius [CRE]	0.05
insert execution r/n/l [IH/ HAND]	R
threading part type [TTP]	I
insert length [INSL]	11
inner circle [IC]	6.35
M1 secondary M – Stainless steel, M1 Material classification: 1.4301 (X5CrNi18-10+F3:F21A3F3: F23F3:F24A3F3:F23F3:FF3:F24) 1.4305 (X8CrNiS18-9) 1.4401 (X5CrNiMo17-12-2, X4CrNiMo17-12-2, X5CrNiMo18-10) 1.4404 (X3CrNiMo17-12-2) 1.4541 (X6CrNiTi18-10) 1.4571 (X6CrNiMoTi17-12-2) 1.4841 (X15CrNiSi25-20) 1.4958 (X5NiCrAlTi31-20)	90 - 130
insert size The size of the plate is specified in millimetres.	11
edges/ insert Number of usable cutting edges per indexable insert.	3
cutting profile type	Teilprofil
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	IR
