grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	LCP20T
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
M1 main M – Stainless steel, M1 Material classification: 1.4301 (X5CrNi18-10+F3:F21A3F3: F23F3:F24A3F3:F23F3:FF3:F24) 1.4305 (X8CrNiS18-9) 1.4401 (X5CrNiMo17-12-2, X4CrNiMo17-12-2, X5CrNiMo18-10) 1.4404 (X3CrNiMo17-12-2) 1.4541 (X6CrNiTi18-10) 1.4571 (X6CrNiMoTi17-12-2) 1.4841 (X15CrNiSi25-20) 1.4958 (X5NiCrAlTi31-20)	180 - 230
M2 main M – Stainless steel, M2 Material classification: 1.4362 (X2CrNiN23-4 (Ally 2304)) 1.4462 (X2CrNiMoN22-5-3) 1.4501 (X2CrNiMoCuWN25-7-4) 1.4871 (X53CrMnNiN21-9) 1.4310 (X9CrNi18-8, X10CrNi18-8)	150 - 200
insert height [S1]	3.4
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	LCP20T
coating [COATN] Description of coating.	PVD

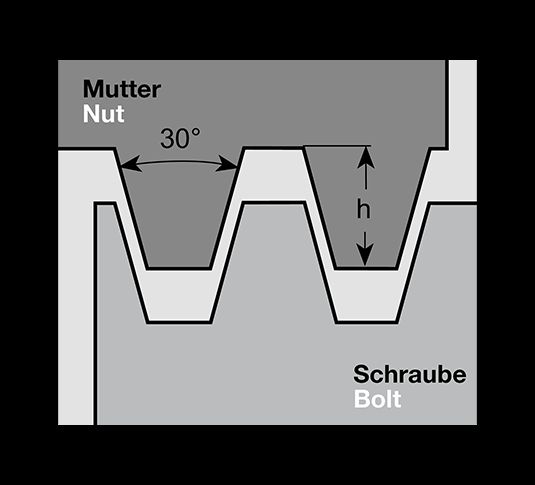

thread type [THFT]	TR
profil angle [PNA]	30
profil angle right [PAR]	15
profil angle left [PAL]	15
tip chamfer [CF]	0,75
insert execution r/n/l [IH/ HAND]	R
threading part type [TTP]	I
insert length [INSL]	16
inner circle [IC]	9.52
insert size The size of the plate is specified in millimetres.	16
edges/ insert Number of usable cutting edges per indexable insert.	3
cutting profile type	Vollprofil
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	IR

16IR3.0TR LCP20T

Product data
