22ER4.0TR LCP20T
Ordernumber
5071027

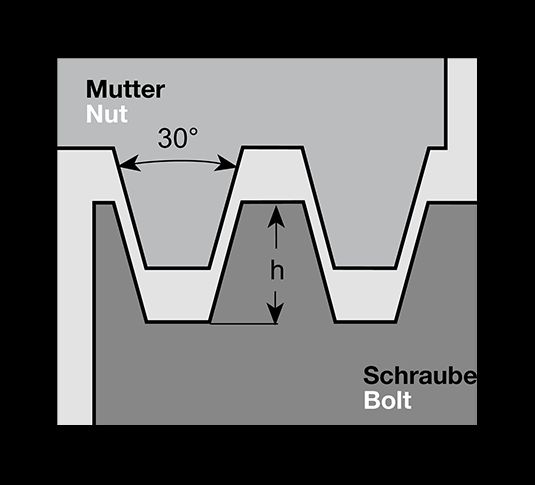

Trapezoidal DIN 103 - Full Profile external threads right
Main grade for steel machining.
High breaking strength even under unfavourable conditions.
Ultra-fine-grained substrate with thin TiAIN coating.
Product data
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.). | LCP20T |
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 10 |
| insert height [S1] | 4.6 |
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.). | LCP20T |
coating [COATN] Description of coating. | PVD |
| thread type [THFT] | TR |
| profil angle [PNA] | 30 |
| profil angle right [PAR] | 15 |
| profil angle left [PAL] | 15 |
| tip chamfer [CF] | 1 |
| insert execution r/n/l [IH/ HAND] | R |
| threading part type [TTP] | A |
| insert length [INSL] | 22 |
| inner circle [IC] | 12.7 |
insert size The size of the plate is specified in millimetres. | 22 |
edges/ insert Number of usable cutting edges per indexable insert. | 3 |
| cutting profile type | Vollprofil |
insert shape The insert-type describes the shape of the insert. | ER |
2D Drawing
