AVRC32-22LH
Ordernumber
5073995
Internal thread holder
Left-hand clamp holder for internal machining with screw clamping and coolant hole, for indexable insert form “U” and indexable insert size: 22
Product data
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
| connection diameter machine [DCONMS] | 32 |
| cutting direction [HAND] | L |
| borehole diameter [DCD] | 39 |
| total length [OAL] | 250 |
| functional range [WF] | 16 |
application type The application type indicates whether the tool is for internal or external machining | Innen |

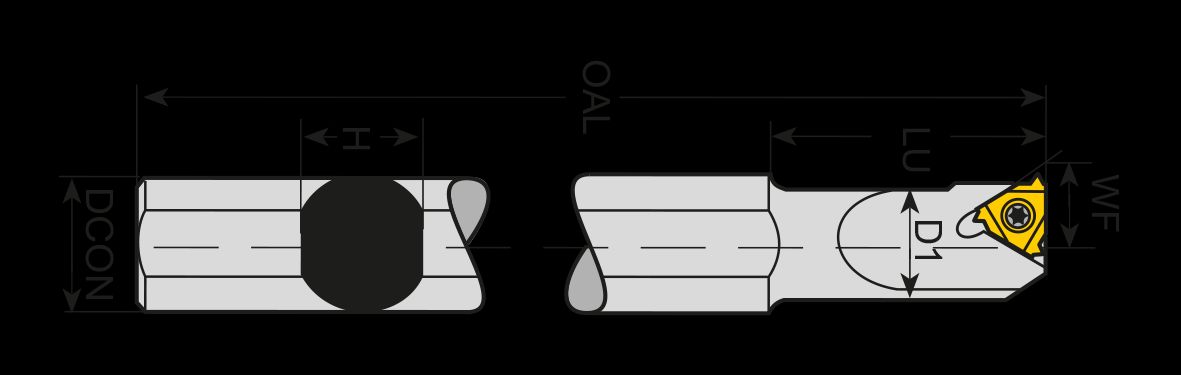

2D Drawing
Contact
Do you have any questions?
Suitable products
Turning
22IL3.5ISO LCM25T
Ordernumber
5100176

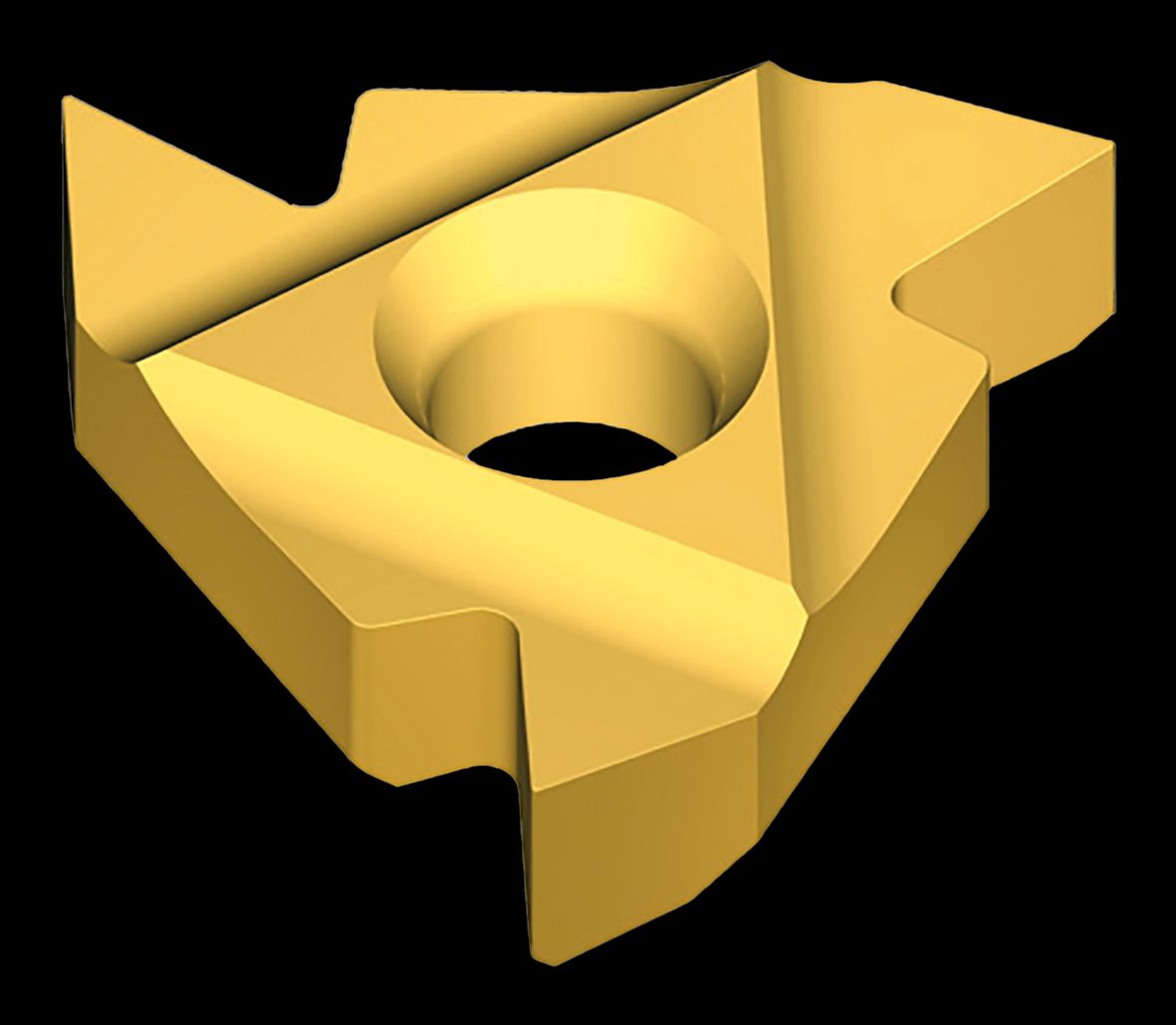

22IL4.0ISO LCP20T
Ordernumber
5071056
22IL4.0TR LCP20T
Ordernumber
5071058
22IL4.5ISO LCP20T
Ordernumber
5071060
22IL5.0TR LCP20T
Ordernumber
5071064
22IL4.0ISO LCM25T
Ordernumber
5071055
22IL N60 BCU20T
Ordernumber
5213158

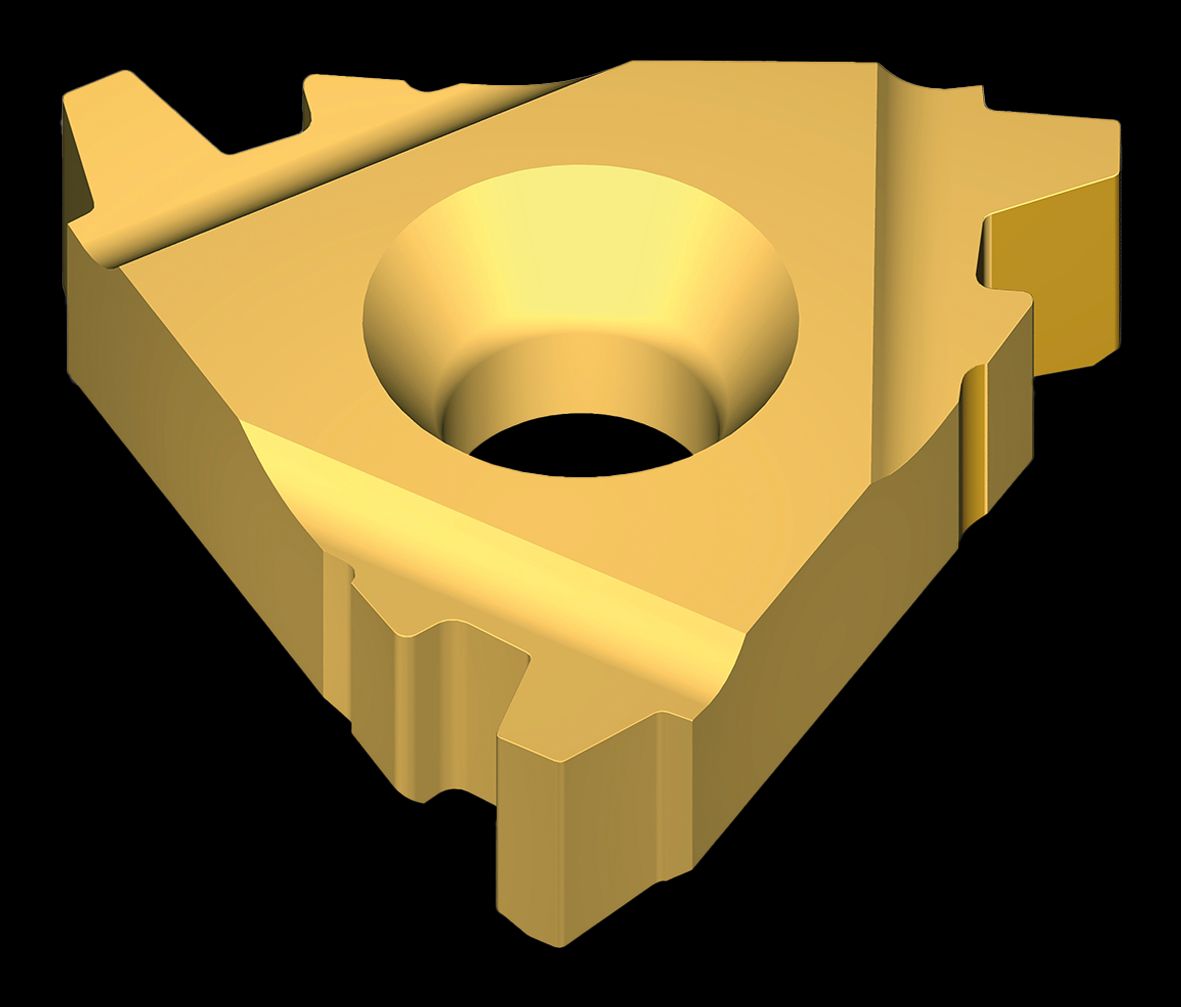

22IL 4.0TR BCU20T
