BA05 02 M4
Ordernumber
5075355
Machine tap through-hole - metric right
Universal machine tap made of particularly wear-resistant high-performance high-speed steel (HSSE) with TiN-PVD coating. Suitable for machining steel, stainless steel and cast iron materials as well as non-ferrous metals.
ISO metric right-hand thread - DIN13
Form B - Straight grooved with spiral point for through-holes
Maximum thread depth 2.5xD
Tolerance class ISO2 6H
Product data
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.). | HSS-E |
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.). | HSSE |
coating [COATN] Description of coating. | TiN B+ |
| thread diameter metric [TD] | 4 |
| thread pitch [TP] | 0.7 |
| threading part length [THL] | 12 |
| usable length [LU] | 21 |
| total length [OAL] | 63 |
| connection diameter machine [DCONMS] | 4.5 |
| shank length [LS] | 42 |
| number of edges [NOF] | 3 |
| twist direction [FHH] | N |
| cutting direction [HAND] | R |
| tool execution [BMC] | S |
| former/ drill | Maschinengewindebohrer |

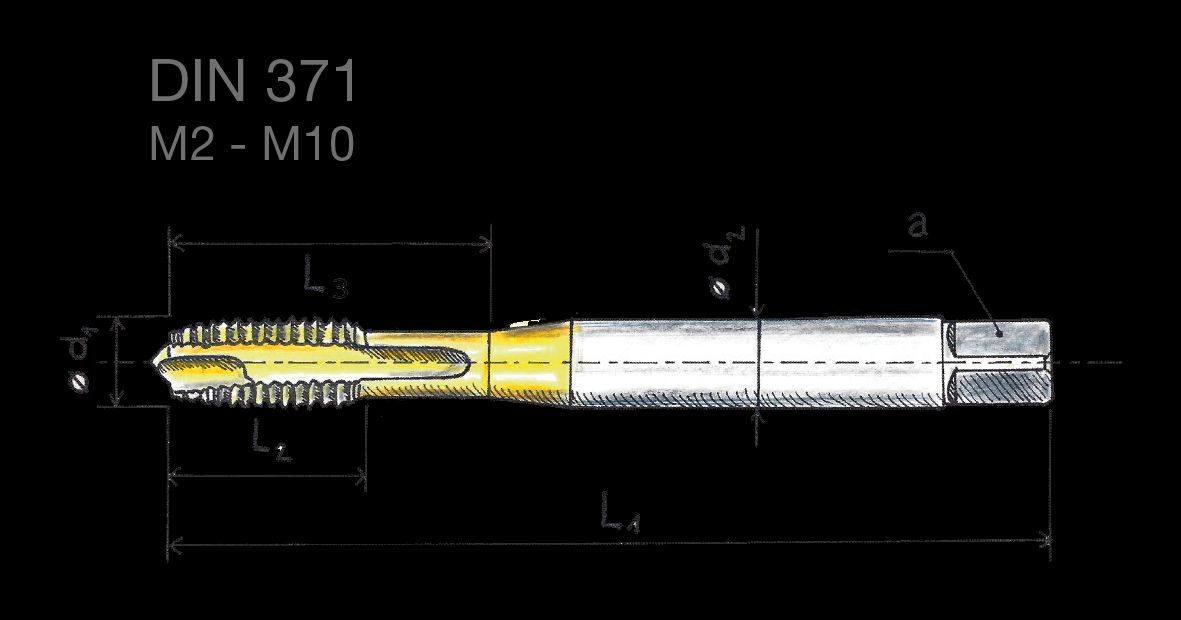

2D Drawing
