SEKW 1204 AFSN-MP BCP25M

Ordernumber

5080939

Indexable insert for face milling

Positive, 4-edged indexable insert without chip control with multi-range grade for economical dry machining of unalloyed, low-alloy, high-alloy and stainless steels under stable ambient conditions and at higher cutting speeds.

Product data

chip breaker Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)	MP
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	BCP25M
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
name of tool system Description of the tool system.	ISO 45P
P1 main P – Steel, P1 Material classification: 1.0037 (S25GT) 1.0503 (C45) 1.0718 (11SMnPb30) 1.1158 (C25E) 1.1191 (C45E) 1.1203 (C55E) 1.1274 (C101E, C100S)	210 - 290
P2 main P – Steel, P2 Material classification: 1.2312 (40CrMnNiMoS8-6-4) 1.2714 (55NiCrMoV7) 1.3505 (100Cr6) 1.6587 (17CrNiMo6, 18CrNiMo7-6) 1.7225 (42CrMo4) 1.7361 (32CrMo12) 1.7715 (14MoV6-3) 1.8523 (39CrMoV13-9)	170 - 250
P3 main P – Steel, P3 Material classification: 1.2085 (X33CrS16) 1.2343 (X38CrMoV5-1) 1.2379 (X153CrMoV12) 1.2581 (X30WCrV9-3) 1.2601 (X165CrMoV12) 1.3243 (HS6-5-2-5) 1.3343 (HS6-5-2) 1.7701 (51CrMoV4)	140 - 190
P4 main P – Steel, P4 Material classification: 1.4006 (X12Cr13, X10Cr13) 1.4034 (X46Cr13) 1.4057 (X19CrNi17-2) 1.4510 (X3CrTi17) 1.4542 (X5CrNiCuNb16-4) 1.4747 (X80CrNiSi20)	120 - 160
P5 main P – Steel, P5 Material classification: 1.1120 (GS-20Mn5) 1.5419 (GS-22Mo4) 1.6571 (GS-34CrNiMo6) 1.6750 (GS-20NiCrMo3-7) 1.7231 (G42CrMo4) 1.7379 (GS-18CrMo9-10)	140 - 200

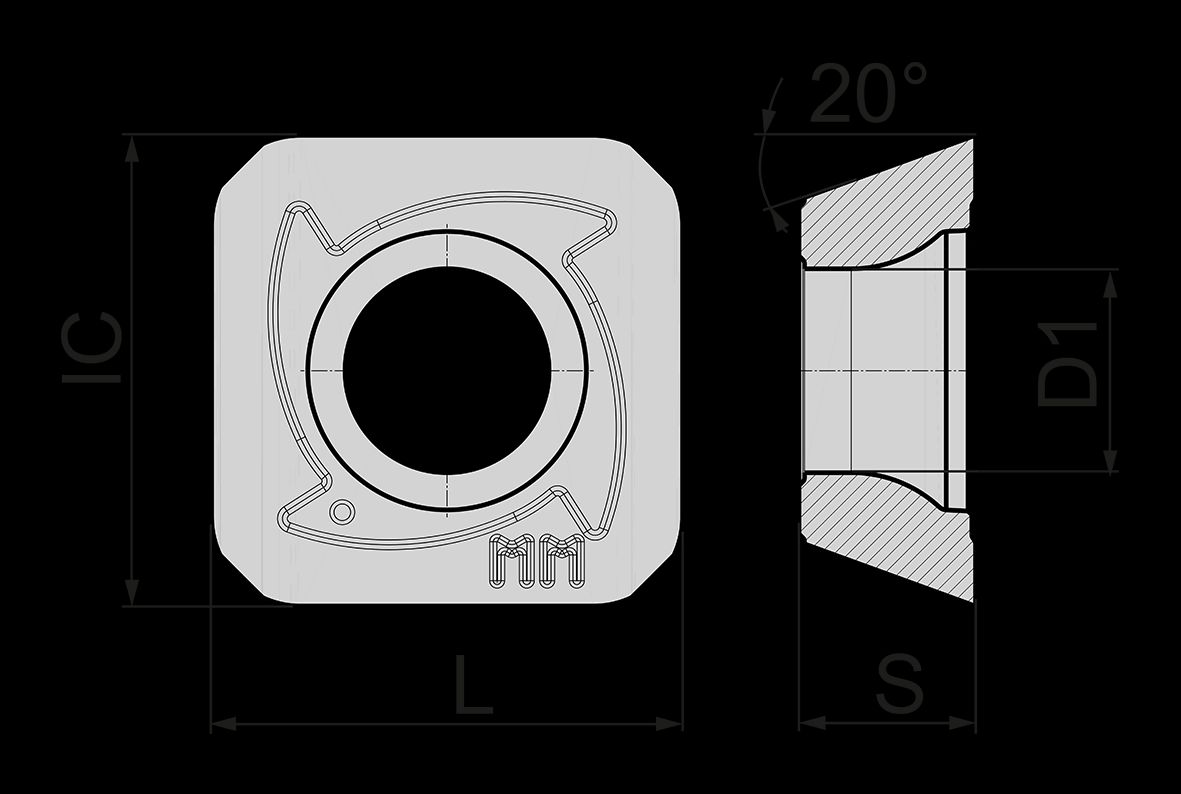

corner angles [EPSR]	90
clearance angle main cutting edge [AN]	20
length of cutting edge [L]	12.7
inner circle [IC]	12,7
cutting edge height [S]	4.76
insert execution r/n/l [IH] AExecution of indexable insert running direction R= Indexable insert right hand cutting L= Indexable insert left hand cutting N= for both cutting directions	N
insert height [S1]	4.76
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	BCP25M
coating [COATN] Description of coating.	PVD
Norm [NSM] Indicates the standard to which the product belongs.	DIN-4000-76
K1 secondary K – Cast iron materials, K1 Material classification: 0.6010 (GG-10, GG 10) 0.6015 (GG-15, GG 15) 0.6020 (GG-20, GG 20) 0.6025 (GG-25, GG 25) 0.6030 (GG-30, GG 30) 0.6035 (GG-35, GG 35) 0.6040 (GG-40, GG 40)	200 - 280
K2 secondary K – Cast iron materials, K2 Material classification: 0.7040 (GGG-40) 0.7050 (GGG-50) 0.7060 (GGG-60) 0.7070 (GGG-70) 5.3400 (EN-GJS-800-10) 5.3403 (EN-GJS-1050-6) 5.3404 (EN-GJS-1200-3)	130 - 180
K3 secondary K – Cast iron materials, K3 Material classification: 0.8035 (GTW-35-04, EN-GJMW-350-4) 0.8040 (EN-GJMW-400-5, GTW-40-05) 0.8045 (EN-GJMW-450-7) 0.8135 (EN-GJMB 350-10) 0.8145 (EN-GJMB 450-6, GTS-45-06) 0.8155 (EN-GJMB 550-4, GTS-55-04) 0.8165 (EN-GJMB 650-2, GTS-65-02) 0.8170 (EN-GJMB 700-2, GTS-70-02)	160 - 210
M1 secondary M – Stainless steel, M1 Material classification: 1.4301 (X5CrNi18-10+F3:F21A3F3: F23F3:F24A3F3:F23F3:FF3:F24) 1.4305 (X8CrNiS18-9) 1.4401 (X5CrNiMo17-12-2, X4CrNiMo17-12-2, X5CrNiMo18-10) 1.4404 (X3CrNiMo17-12-2) 1.4541 (X6CrNiTi18-10) 1.4571 (X6CrNiMoTi17-12-2) 1.4841 (X15CrNiSi25-20) 1.4958 (X5NiCrAlTi31-20)	100 - 150
M2 secondary M – Stainless steel, M2 Material classification: 1.4362 (X2CrNiN23-4 (Ally 2304)) 1.4462 (X2CrNiMoN22-5-3) 1.4501 (X2CrNiMoCuWN25-7-4) 1.4871 (X53CrMnNiN21-9) 1.4310 (X9CrNi18-8, X10CrNi18-8)	70 - 110
coating coating type CVD or PVD.	Goldlox PVD
insert size The size of the plate is specified in millimetres.	SEKW 1204
edges/ insert Number of usable cutting edges per indexable insert.	4
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	SEKW
