BA07 02 Mf 27x1,5
Ordernumber
5094448
Machine tap through-hole - metric fine right
Universal machine tap made of particularly wear-resistant high-performance high-speed steel (HSSE) with TiN-PVD coating. Suitable for machining steel, stainless steel and cast iron materials as well as non-ferrous metals.
ISO metric fine right-hand thread - DIN13
Form B - Straight grooved with spiral point for through-holes
Maximum thread depth 2.5xD
Tolerance class ISO2 6H
Product data
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.). | HSS-E |
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.). | HSSE |
coating [COATN] Description of coating. | TiN B+ |
| thread diameter metric [TD] | 27 |
| thread pitch [TP] | 1.5 |
| threading part length [THL] | 28 |
| total length [OAL] | 140 |
| connection diameter machine [DCONMS] | 20 |
| shank length [LS] | 140 |
| number of edges [NOF] | 4 |
| twist direction [FHH] | N |
| cutting direction [HAND] | R |
| tool execution [BMC] | S |
| former/ drill | Maschinengewindebohrer |

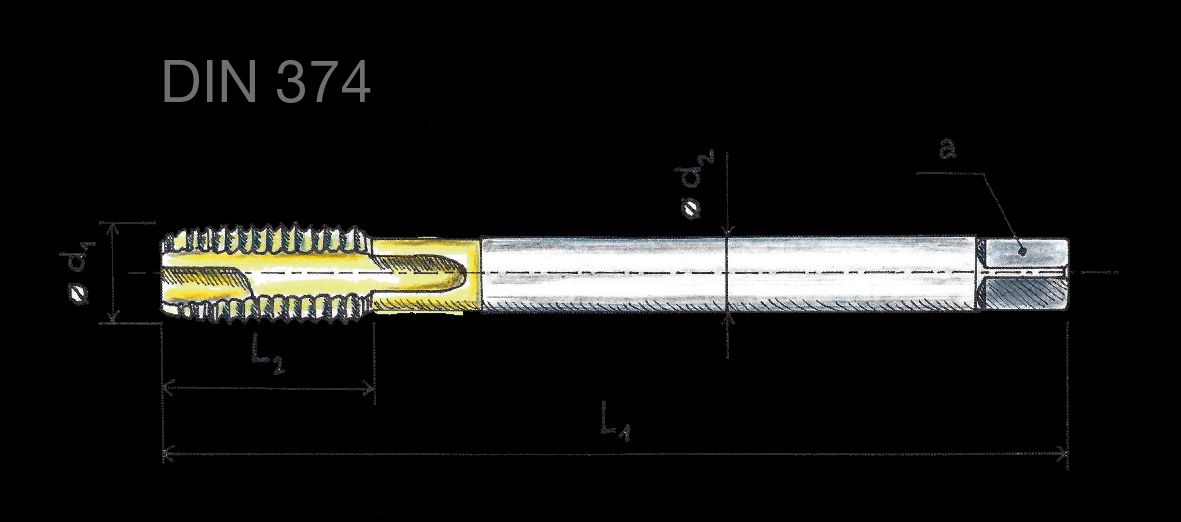

2D Drawing
