BA08 02 G 5/8"
Ordernumber
5094468
Machine tap through-hole - British standard pipe thread
Universal machine tap made of particularly wear-resistant high-performance high-speed steel (HSSE) with TiN-PVD coating. Suitable for machining steel, stainless steel and cast iron materials as well as non-ferrous metals.
British standard right-hand pipe thread - EN ISO 228
Form B - Straight grooved with spiral point for through-holes
Maximum thread depth 2.5xD
Tolerance class ISO 5969
Product data
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.). | HSS-E |
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.). | HSSE |
coating [COATN] Description of coating. | TiN B+ |
| thread diameter inch [TDIN] | 0.625 |
| thread diameter inch fraction [TDFR] | 5 |
| pitch per inch [TPI] | 14 |
| threading part length [THL] | 25 |
| total length [OAL] | 125 |
| connection diameter machine [DCONMS] | 18 |
| shank length [LS] | 125 |
| number of edges [NOF] | 4 |
| twist direction [FHH] | N |
| cutting direction [HAND] | R |
| tool execution [BMC] | S |
| former/ drill | Maschinengewindebohrer |

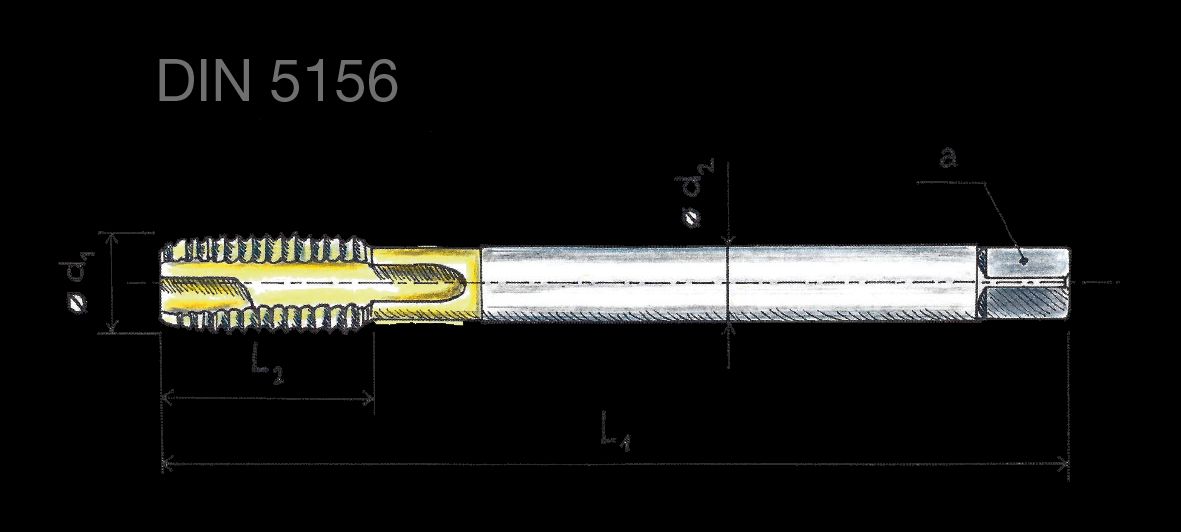

2D Drawing
