BEH90 AP10.025 Z02 037

Cutting Milling Edge milling ISO 90P

Ordernumber

5106983

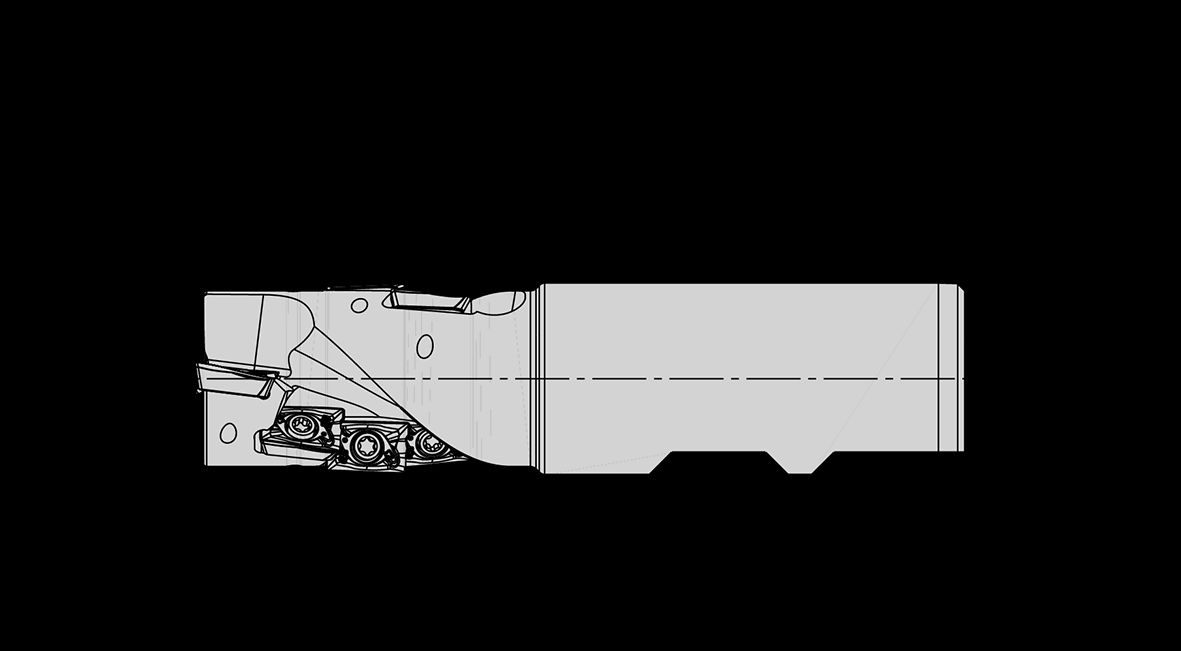

End milling cutter ISO 90P

Steel base body in a helical porcupine cutter execution with shaft and weld-on clamping surface for holding indexable inserts from the ISO 90P system in system size 10.

Product data

delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	1
name of tool system Description of the tool system.	ISO 90P
connection diameter machine [DCONMS]	25
shank length [LS]	56
cutting direction [HAND]	R
cutting diamter [DC]	25
total length [OAL]	105
head length [LH]	49
number of edges usable, circumference [ZEFP] Number of edges usable, circumference.	2
number of edges usable, face side [ZEFF] number of edges usable, face side.	2
cutter type A distinction is made between the following milling cutter types: End milling cutter Face milling cutter Screw on type	Schaftfräser
