SpiBo_Dm8,8_HSS_DIN338
Ordernumber
5108158
HSS-Drill DIN 338
Material: HSS - Co
Drill grind: Cross cut
Type: N
Product data
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.). | HSS - Co |
| number of edges [NOF] | 2 |
| twist direction [FHH] | R |
| cutting direction [HAND] | R |
| Schneidendurchmesser - d1 | 8.8 |
| Typ | N |
drill tip angle Specifies the angle of the drill tip. | 118 |
| Gesamtlänge - L1 | 81 |
Type of shank Describes the design of the shank to machine side. | HA |
| Aufnahmedurchmesser - d2 | 125 |
Internal coolant supply Indicates whether an internal coolant supply is available. | nein |
| Klassifizierung | DIN 338 |

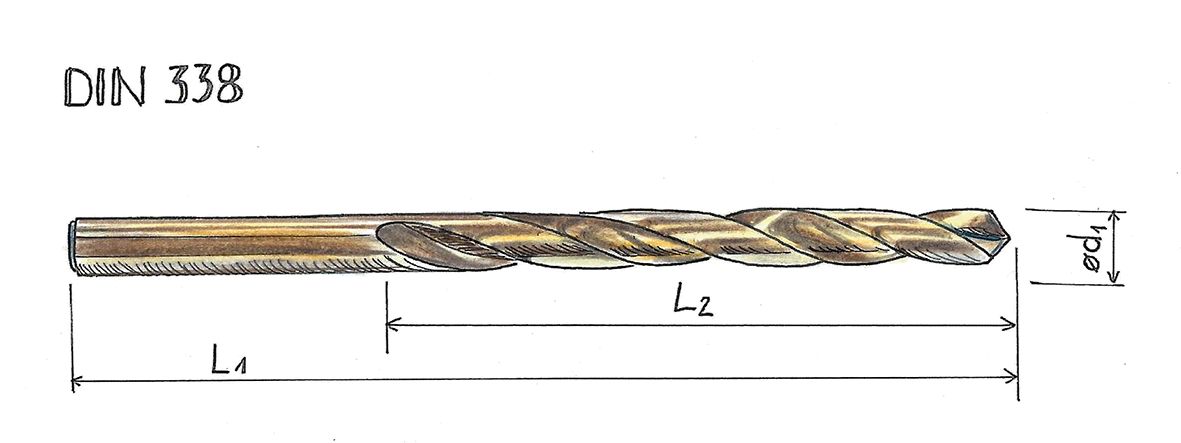

2D Drawing
