SpiBo_Dm52_HSS_MK5
Ordernumber
5109738
HSS-Drill DIN 345
Material: HSS
Drill grind: Cross Cut
Type: N
Morse taper: 5
Product data
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.). | HSS |
| number of edges [NOF] | 2 |
| twist direction [FHH] | R |
| cutting direction [HAND] | R |
| Schneidendurchmesser - d1 | 52 |
| Typ | N |
drill tip angle Specifies the angle of the drill tip. | 118 |
| Gesamtlänge - L1 | 225 |
Type of shank Describes the design of the shank to machine side. | Morsekonus |
| Aufnahmedurchmesser - d2 | 412 |
Morse taper Size specification of the Morse taper. | MK5 |
Internal coolant supply Indicates whether an internal coolant supply is available. | nein |
| Klassifizierung | DIN 345 |

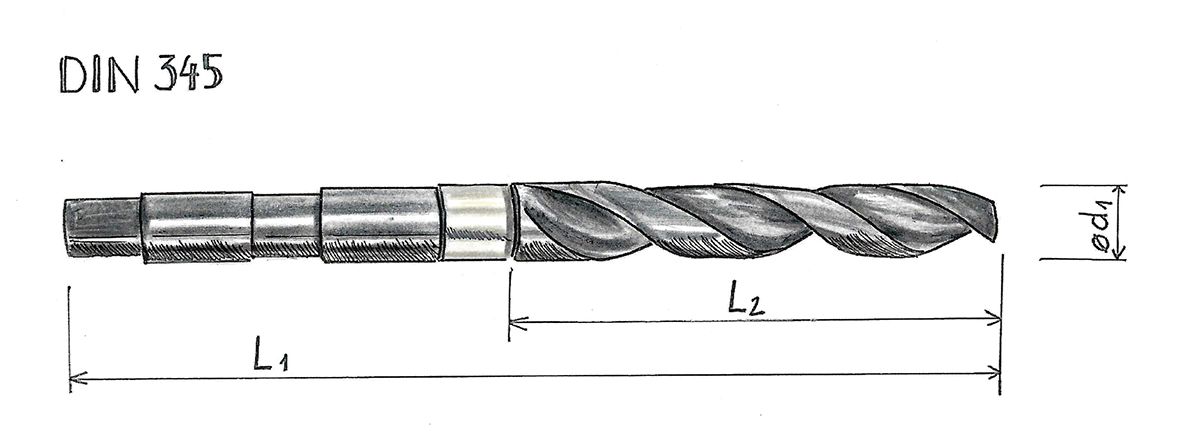

2D Drawing
