BSB00 RD10.042 Z06 M16

Ordernumber

5116917

Screw on type ISO 00P

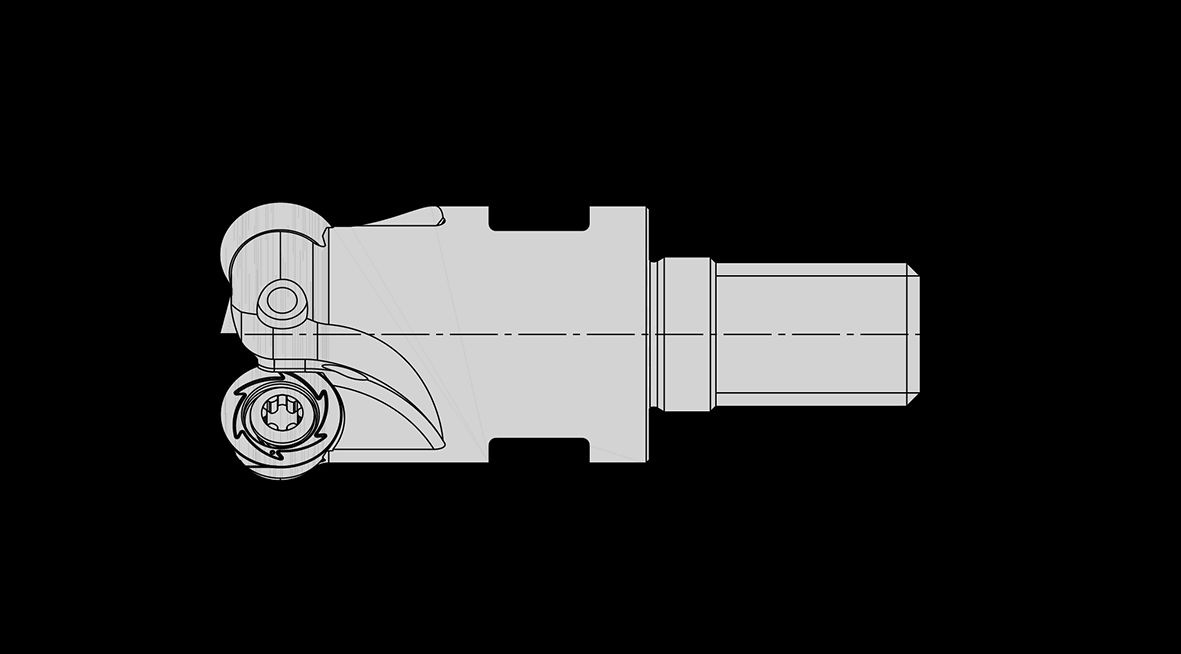

Steel base body with M16 connection thread and cylindrical functional length for holding indexable inserts from the ISO 00P system in system size 10.

Product data

delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	1
name of tool system Description of the tool system.	ISO 00P
connection diameter machine [DCONMS]	16
cutting direction [HAND]	R
cutting diamter [DC]	42
head length [LH]	43
number of edges usable, circumference [ZEFP] Number of edges usable, circumference.	6
number of edges usable, face side [ZEFF] number of edges usable, face side.	6
cutter type A distinction is made between the following milling cutter types: End milling cutter Face milling cutter Screw on type	Einschraubfräser
