BSB00 RD12.035 Z03 M16
Ordernumber
5116926
Screw on type ISO 00P
Steel base body with M16 connection thread and cylindrical functional length for holding indexable inserts from the ISO 00P system in system size 12.
Product data
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
name of tool system Description of the tool system. | ISO 00P |
| connection diameter machine [DCONMS] | 16 |
| cutting direction [HAND] | R |
| cutting diamter [DC] | 35 |
| head length [LH] | 43 |
number of edges usable, circumference [ZEFP] Number of edges usable, circumference. | 3 |
number of edges usable, face side [ZEFF] number of edges usable, face side. | 3 |
cutter type A distinction is made between the following milling cutter types:
| Einschraubfräser |

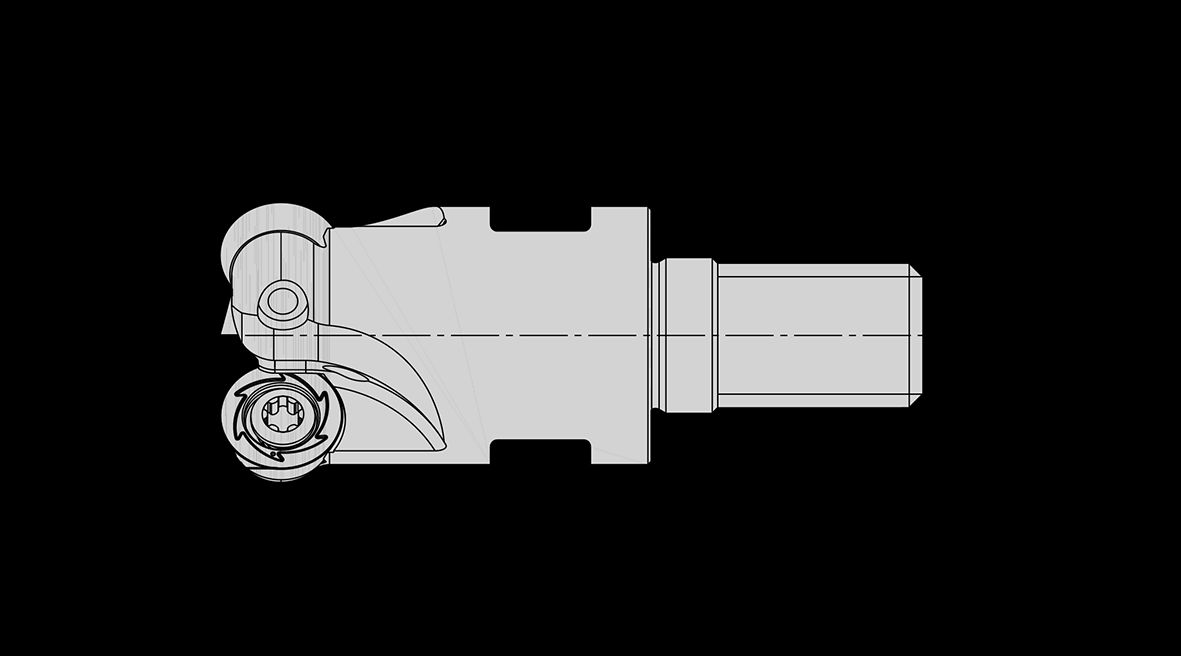

2D Drawing
