BEB00 BE20.020 Z02 104

Cutting Milling 3D Milling BALLtec

Ordernumber

5117315

End milling cutter BALLtec

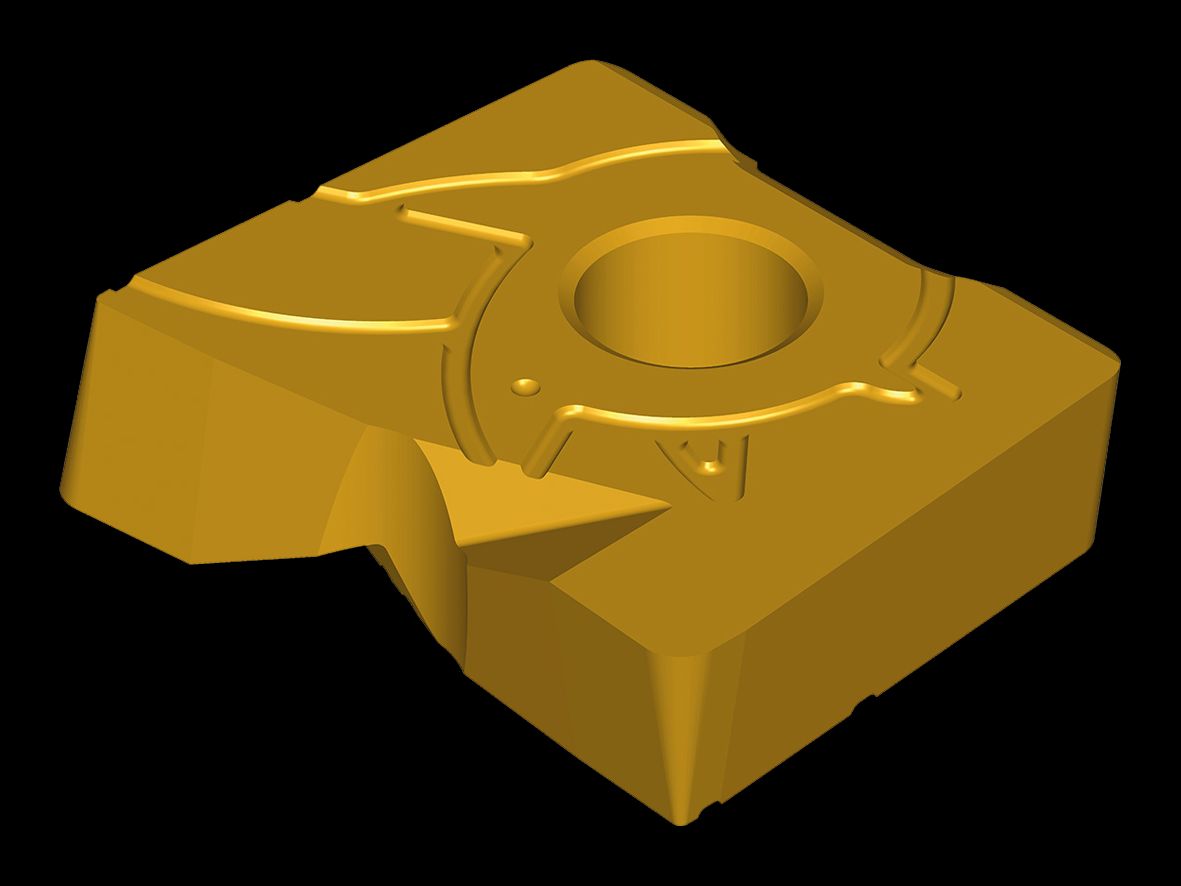

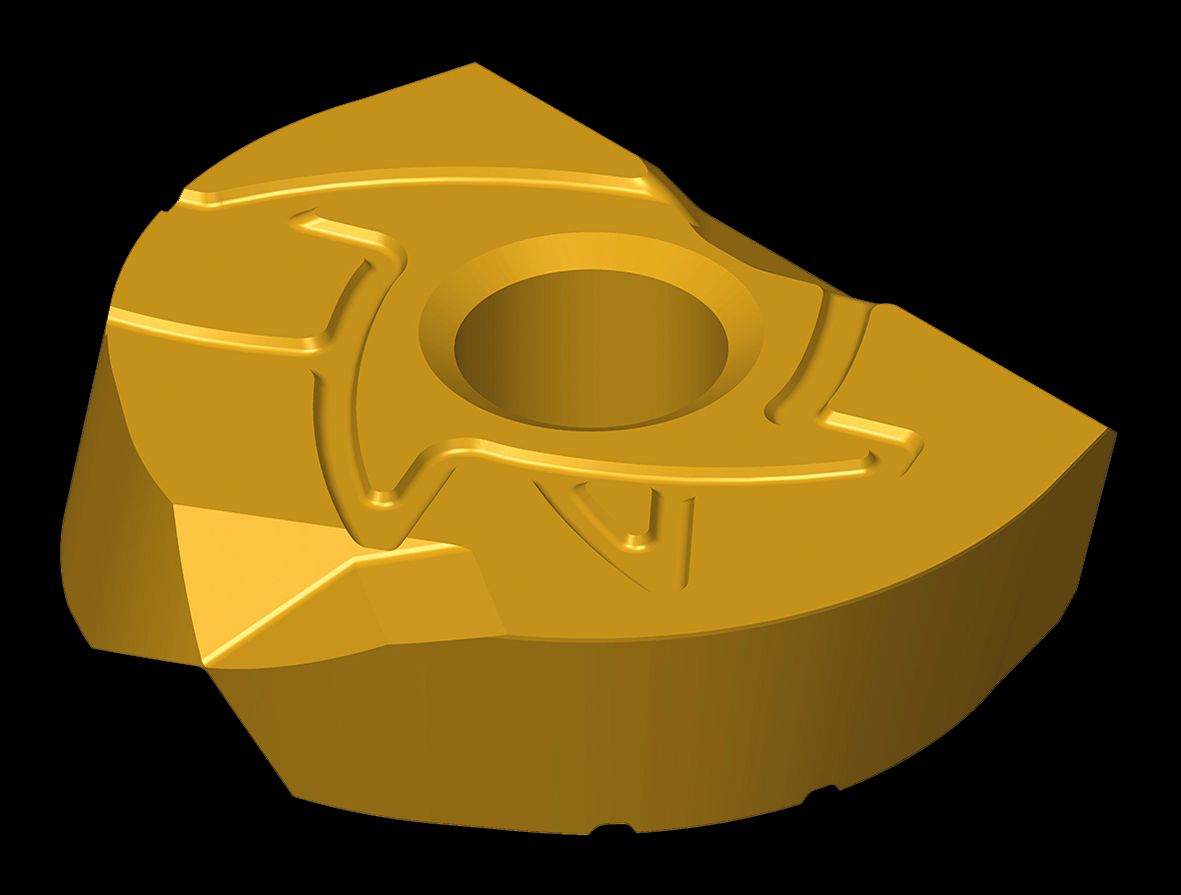

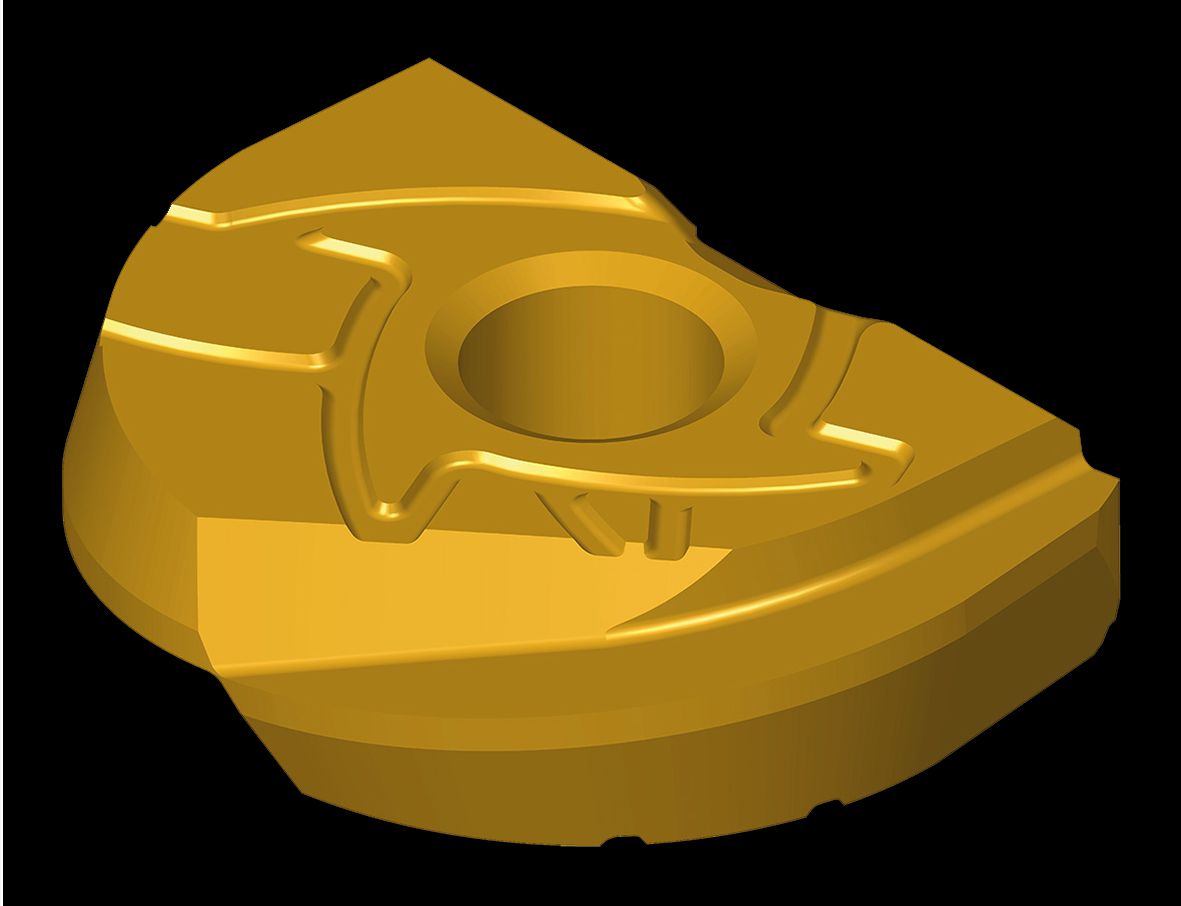

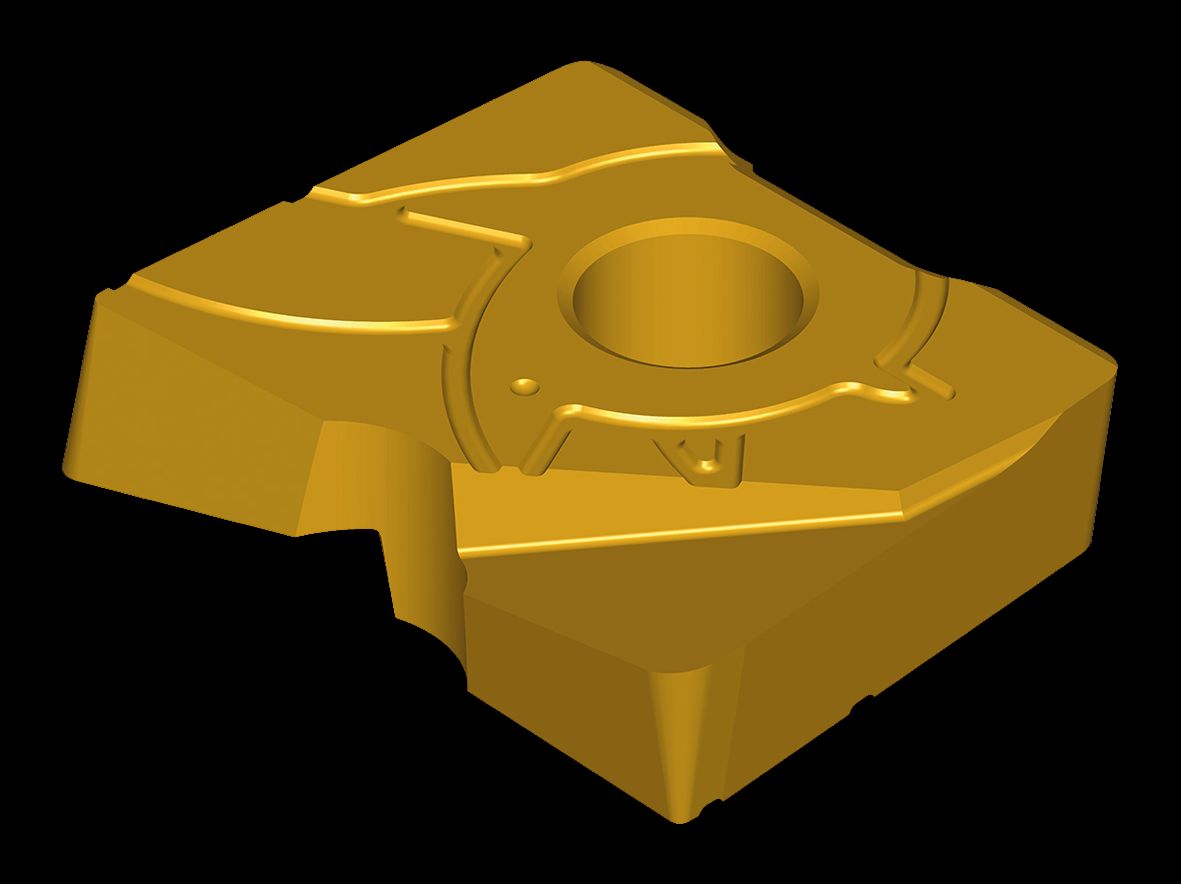

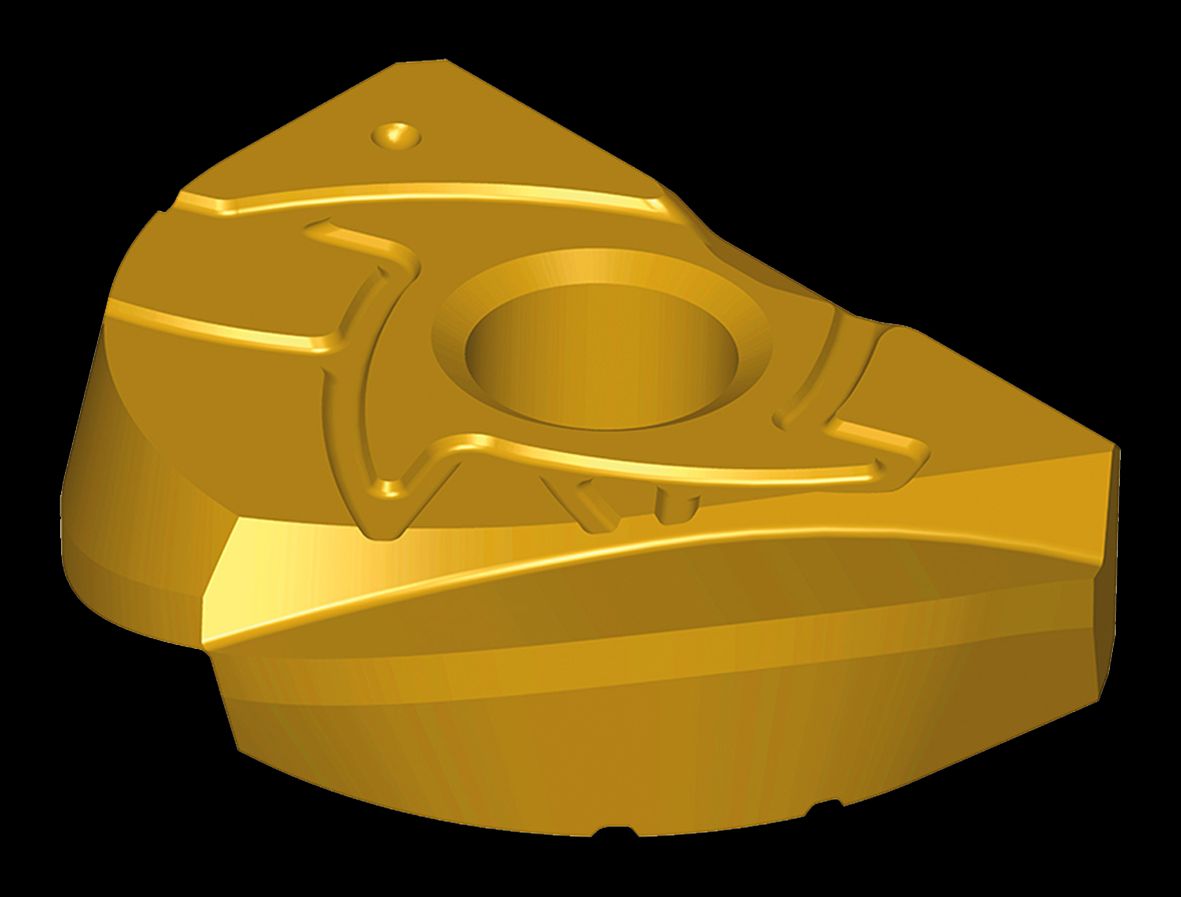

Multifunctional steel base body with smooth shaft and cylindrical functional length, for holding indexable inserts from the BALLtec/TORROtec system in system size 20.

Product data

delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	1
name of tool system Description of the tool system.	BALLtec
connection diameter machine [DCONMS]	20
shank length [LS]	66
cutting direction [HAND]	R
cutting diamter [DC]	20
total length [OAL]	104
head length [LH]	38
number of edges usable, circumference [ZEFP] Number of edges usable, circumference.	2
number of edges usable, face side [ZEFF] number of edges usable, face side.	2
cutter type A distinction is made between the following milling cutter types: End milling cutter Face milling cutter Screw on type	Schaftfräser
