BS95 CD06.025 Z03 M12
Ordernumber
5117385
Screw on type RHOMBICtec 95P
Steel base body with M12 connection thread for holding indexable inserts from the RHOMBICtec 95P system in system size 06.
Product data
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
name of tool system Description of the tool system. | RHOMBICtec |
| connection diameter machine [DCONMS] | 12 |
| cutting direction [HAND] | R |
| cutting diamter [DC] | 25 |
| head length [LH] | 35 |
number of edges usable, circumference [ZEFP] Number of edges usable, circumference. | 3 |
number of edges usable, face side [ZEFF] number of edges usable, face side. | 3 |
cutter type A distinction is made between the following milling cutter types:
| Einschraubfräser |

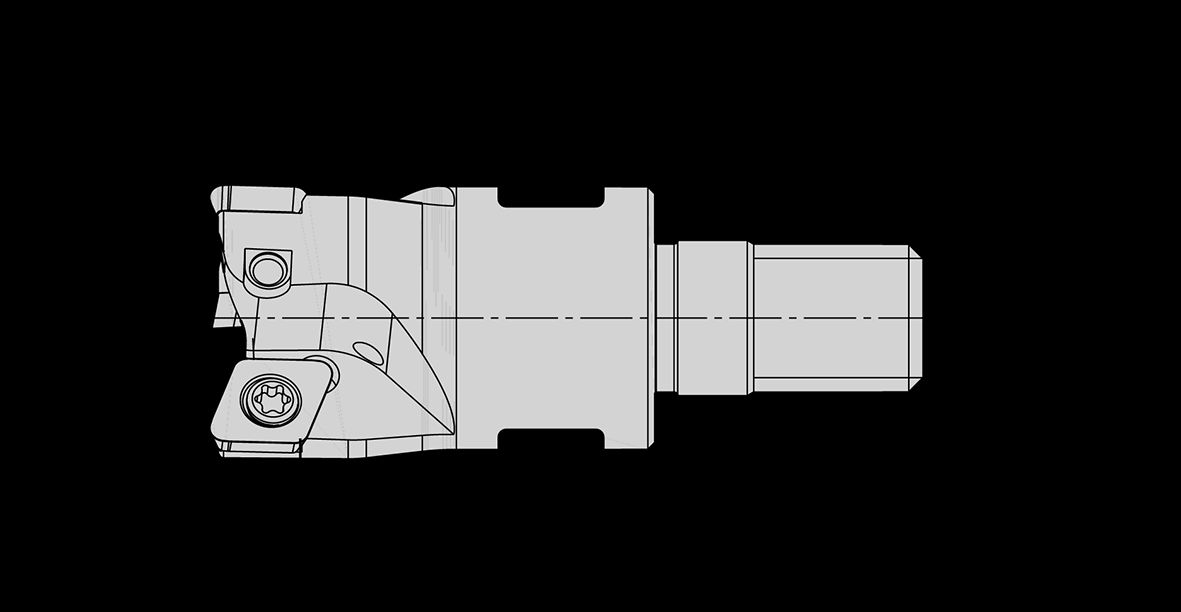

2D Drawing
