RDHW 0501 MOS-FH BCH03M

Ordernumber

5117408

Indexable insert for 3D and face milling

Positive, peripherally ground indexable insert with extremely dense, microcrystalline and temperature-stable PVD coating without chip control, for finishing in die and mould making of materials up to max. 65 HRC under very stable ambient conditions.

Product data

chip breaker Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)	FH
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	BCH03M
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
name of tool system Description of the tool system.	ISO 00P
H1 main H – Hardened materials, hardened cast iron, H1 Material classification: 1.2343 52HRC (X38CrMoV5-1) 1.2767 54HRC (45NiCrMo16)	120 - 240
H2 main H – Hardened materials, hardened cast iron, H2 Material classification: 1.2714 60HRC (55NiCrMoV7) 1.2842 58HRC (90MnCrV8)	100 - 180
H3 main H – Hardened materials, hardened cast iron, H3 Material classification: 1.2080 64HRC (X210Cr12) 1.2436 63HRC (X210CrW12-1, X210CrW12)	80 - 155
H4 main H – Hardened materials, hardened cast iron, H4 Material classification: 0.9620 52HRC (G-X260NiCr42) 0.9650 53HRC (G-X260Cr27)	110 - 190
clearance angle main cutting edge [AN]	15
inner circle [IC]	5
cutting edge height [S]	1.59
corner radius [RE]	2.5
insert execution r/n/l [IH] AExecution of indexable insert running direction R= Indexable insert right hand cutting L= Indexable insert left hand cutting N= for both cutting directions	N
insert height [S1]	1.59
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	BCH03M
coating [COATN] Description of coating.	PVD
Norm [NSM] Indicates the standard to which the product belongs.	DIN-4000-76
K1 secondary K – Cast iron materials, K1 Material classification: 0.6010 (GG-10, GG 10) 0.6015 (GG-15, GG 15) 0.6020 (GG-20, GG 20) 0.6025 (GG-25, GG 25) 0.6030 (GG-30, GG 30) 0.6035 (GG-35, GG 35) 0.6040 (GG-40, GG 40)	320 - 560
K2 secondary K – Cast iron materials, K2 Material classification: 0.7040 (GGG-40) 0.7050 (GGG-50) 0.7060 (GGG-60) 0.7070 (GGG-70) 5.3400 (EN-GJS-800-10) 5.3403 (EN-GJS-1050-6) 5.3404 (EN-GJS-1200-3)	180 - 380
K3 secondary K – Cast iron materials, K3 Material classification: 0.8035 (GTW-35-04, EN-GJMW-350-4) 0.8040 (EN-GJMW-400-5, GTW-40-05) 0.8045 (EN-GJMW-450-7) 0.8135 (EN-GJMB 350-10) 0.8145 (EN-GJMB 450-6, GTS-45-06) 0.8155 (EN-GJMB 550-4, GTS-55-04) 0.8165 (EN-GJMB 650-2, GTS-65-02) 0.8170 (EN-GJMB 700-2, GTS-70-02)	230 - 410
P1 secondary	280 - 500
P2 secondary P – Steel, P2 Material classification: 1.2312 (40CrMnNiMoS8-6-4) 1.2714 (55NiCrMoV7) 1.3505 (100Cr6) 1.6587 (17CrNiMo6, 18CrNiMo7-6) 1.7225 (42CrMo4) 1.7361 (32CrMo12) 1.7715 (14MoV6-3) 1.8523 (39CrMoV13-9)	240 - 450
P3 secondary P – Steel, P3 Material classification: 1.2085 (X33CrS16) 1.2343 (X38CrMoV5-1) 1.2379 (X153CrMoV12) 1.2581 (X30WCrV9-3) 1.2601 (X165CrMoV12) 1.3243 (HS6-5-2-5) 1.3343 (HS6-5-2) 1.7701 (51CrMoV4)	200 - 400
P5 secondary P – Steel, P5 Material classification: 1.1120 (GS-20Mn5) 1.5419 (GS-22Mo4) 1.6571 (GS-34CrNiMo6) 1.6750 (GS-20NiCrMo3-7) 1.7231 (G42CrMo4) 1.7379 (GS-18CrMo9-10)	190 - 410
coating coating type CVD or PVD.	Inoxacon BOE
insert size The size of the plate is specified in millimetres.	RDHW 0501
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	RDHW

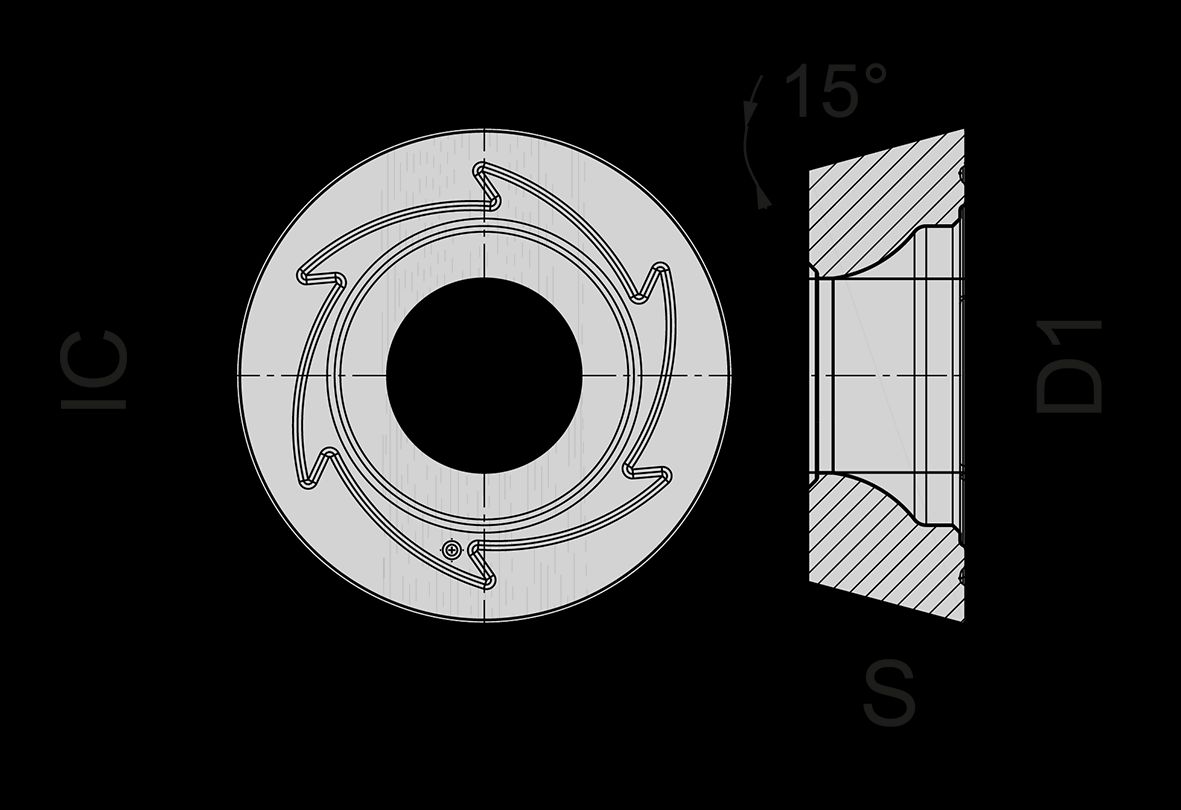

2D Drawing
