SDMW 180630 SR-RHH

Ordernumber

5117601

Indexable insert for high feed milling

Positive, 4-edged indexable insert with microcrystalline, stress-optimised PVD coating without chip control, for higher cutting rates use in high-feed machining of hardened materials up to max. 50 HRC under unstable conditions.

Product data

chip breaker Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)	RHH
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	BCH30M
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
name of tool system Description of the tool system.	DELTAtec 90P Feed
H1 main H – Hardened materials, hardened cast iron, H1 Material classification: 1.2343 52HRC (X38CrMoV5-1) 1.2767 54HRC (45NiCrMo16)	100 - 140
H2 main H – Hardened materials, hardened cast iron, H2 Material classification: 1.2714 60HRC (55NiCrMoV7) 1.2842 58HRC (90MnCrV8)	80 - 120
H4 main H – Hardened materials, hardened cast iron, H4 Material classification: 0.9620 52HRC (G-X260NiCr42) 0.9650 53HRC (G-X260Cr27)	90 - 130
corner angles [EPSR]	90
clearance angle main cutting edge [AN]	15
length of cutting edge [L]	18.7
inner circle [IC]	18,7
cutting edge height [S]	6.35
corner radius [RE]	3
insert execution r/n/l [IH] AExecution of indexable insert running direction R= Indexable insert right hand cutting L= Indexable insert left hand cutting N= for both cutting directions	R
insert height [S1]	6.35
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	BCH30M
coating [COATN] Description of coating.	PVD
Norm [NSM] Indicates the standard to which the product belongs.	DIN-4000-76
K1 secondary K – Cast iron materials, K1 Material classification: 0.6010 (GG-10, GG 10) 0.6015 (GG-15, GG 15) 0.6020 (GG-20, GG 20) 0.6025 (GG-25, GG 25) 0.6030 (GG-30, GG 30) 0.6035 (GG-35, GG 35) 0.6040 (GG-40, GG 40)	230 - 380
K2 secondary K – Cast iron materials, K2 Material classification: 0.7040 (GGG-40) 0.7050 (GGG-50) 0.7060 (GGG-60) 0.7070 (GGG-70) 5.3400 (EN-GJS-800-10) 5.3403 (EN-GJS-1050-6) 5.3404 (EN-GJS-1200-3)	160 - 210
K3 secondary K – Cast iron materials, K3 Material classification: 0.8035 (GTW-35-04, EN-GJMW-350-4) 0.8040 (EN-GJMW-400-5, GTW-40-05) 0.8045 (EN-GJMW-450-7) 0.8135 (EN-GJMB 350-10) 0.8145 (EN-GJMB 450-6, GTS-45-06) 0.8155 (EN-GJMB 550-4, GTS-55-04) 0.8165 (EN-GJMB 650-2, GTS-65-02) 0.8170 (EN-GJMB 700-2, GTS-70-02)	180 - 260
P1 secondary	230 - 300
P2 secondary P – Steel, P2 Material classification: 1.2312 (40CrMnNiMoS8-6-4) 1.2714 (55NiCrMoV7) 1.3505 (100Cr6) 1.6587 (17CrNiMo6, 18CrNiMo7-6) 1.7225 (42CrMo4) 1.7361 (32CrMo12) 1.7715 (14MoV6-3) 1.8523 (39CrMoV13-9)	200 - 260
P3 secondary P – Steel, P3 Material classification: 1.2085 (X33CrS16) 1.2343 (X38CrMoV5-1) 1.2379 (X153CrMoV12) 1.2581 (X30WCrV9-3) 1.2601 (X165CrMoV12) 1.3243 (HS6-5-2-5) 1.3343 (HS6-5-2) 1.7701 (51CrMoV4)	160 - 220
P5 secondary P – Steel, P5 Material classification: 1.1120 (GS-20Mn5) 1.5419 (GS-22Mo4) 1.6571 (GS-34CrNiMo6) 1.6750 (GS-20NiCrMo3-7) 1.7231 (G42CrMo4) 1.7379 (GS-18CrMo9-10)	150 - 230
coating coating type CVD or PVD.	Ferrocon BOE
insert size The size of the plate is specified in millimetres.	SDMW 1806
edges/ insert Number of usable cutting edges per indexable insert.	4
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	SDMW

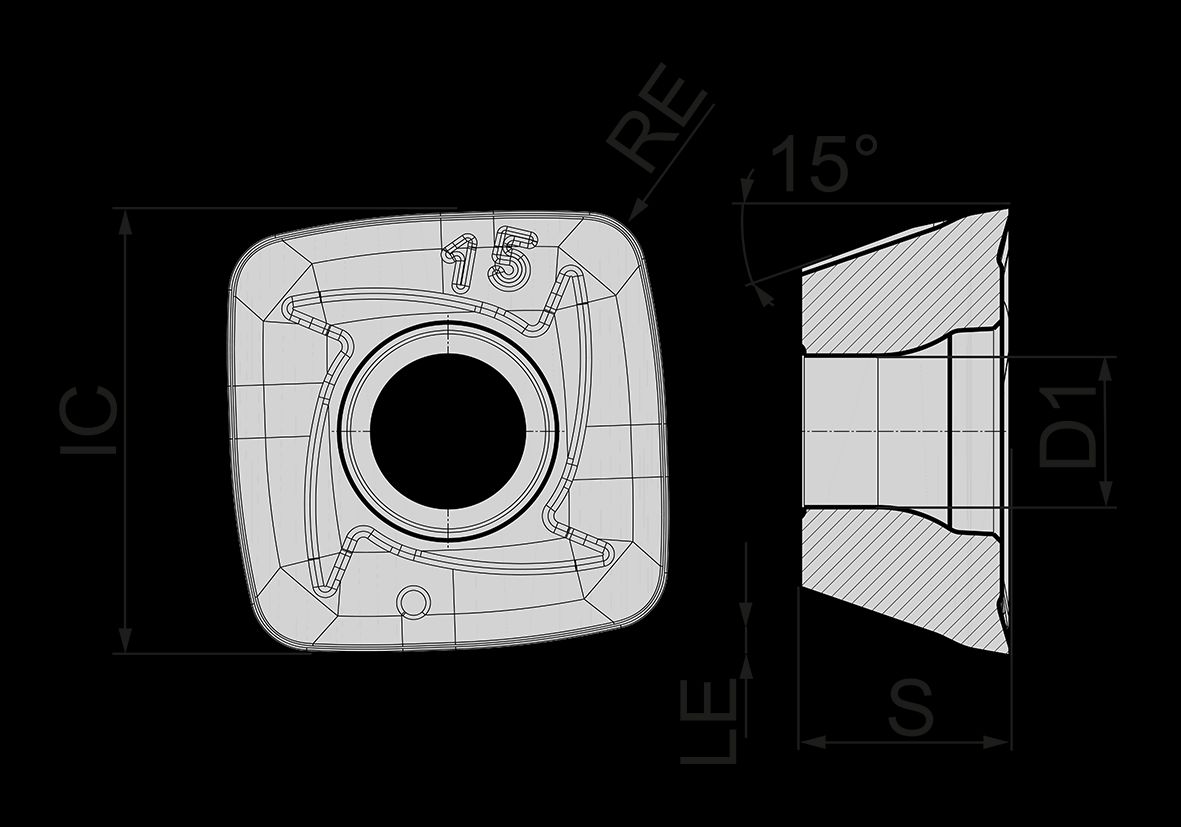

2D Drawing
