CEB00 BE32.032 Z02 190

Cutting Milling 3D Milling BALLtec

Ordernumber

5122839

End milling cutter BALLtec

Multifunctional base body made of solid carbide with soldered steel shaft, smooth shaft, cylindrical functional length and IC, for holding indexable inserts from the BALLtec/TORROtec system in system size 32.

Product data

delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	1
name of tool system Description of the tool system.	BALLtec
shank length [LS]	125
cutting direction [HAND]	R
cutting diamter [DC]	32
total length [OAL]	190
head length [LH]	65
number of edges usable, circumference [ZEFP] Number of edges usable, circumference.	2
number of edges usable, face side [ZEFF] number of edges usable, face side.	2
cutter type A distinction is made between the following milling cutter types: End milling cutter Face milling cutter Screw on type	Schaftfräser

2D Drawing

Downloads

CAD Files

Contact

Name*

E-Mail*

Company

Phone number*

Country*

Message*

Do you have any questions?

Your contact for Cutting:

Boehlerit Service+43 (3862) 300-0 [email protected]

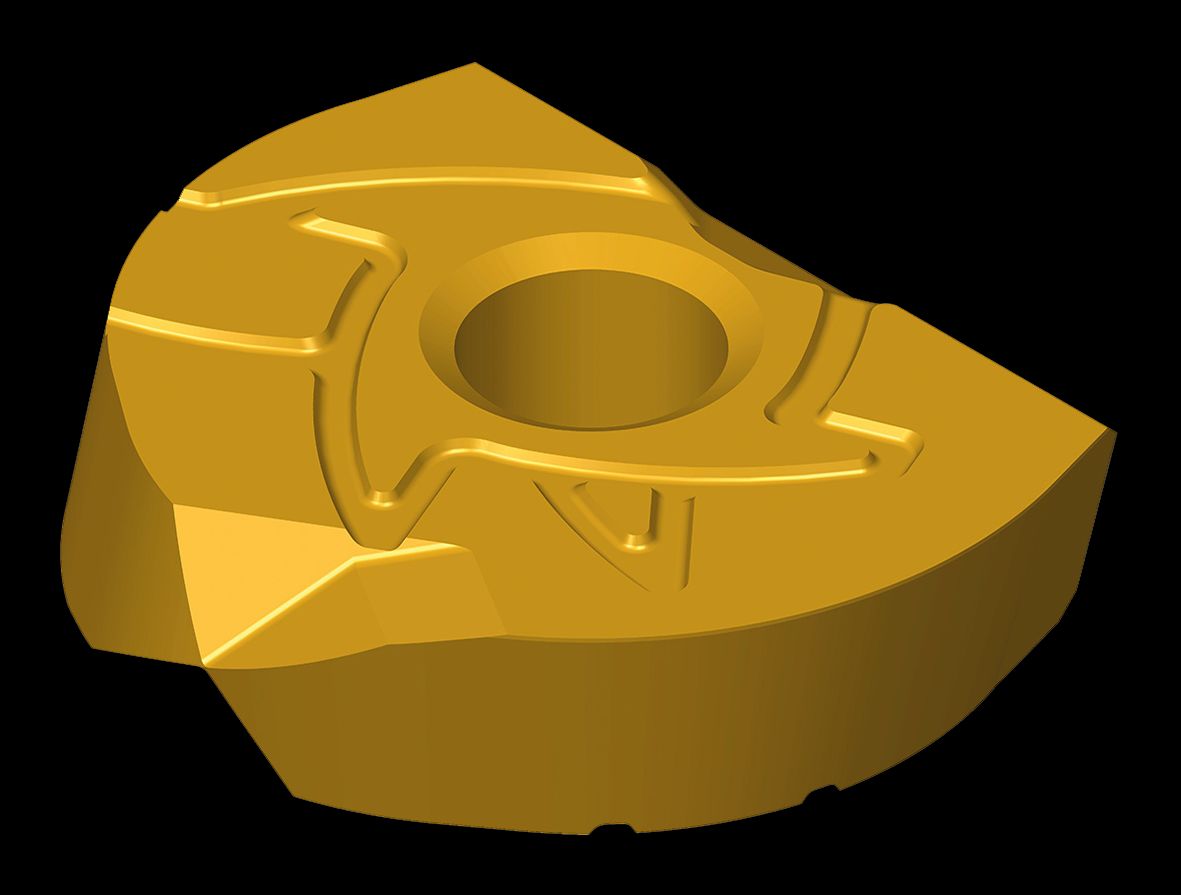

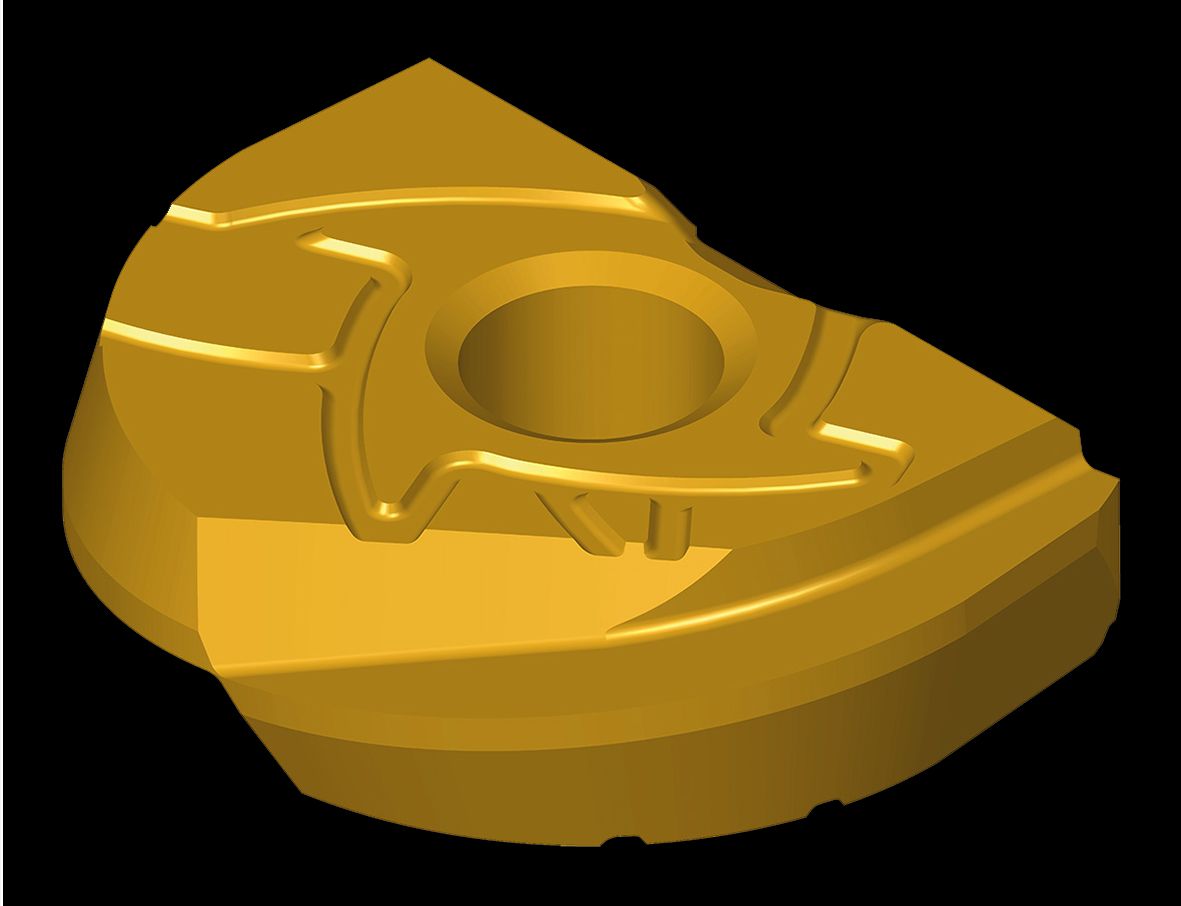

Suitable products
