ONMU 050608 SN-MM BCM35M

Ordernumber

5124906

Indexable insert for face milling

Negative, 16-edged indexable insert with wear-resistant fine-grained substrate and specially developed PVD coating for milling stainless and austenitic stainless materials. Also for wet machining, however MMS is recommended.

Product data

chip breaker Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)	MM
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	BCM35M
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
name of tool system Description of the tool system.	PItec 45N
M1 main M – Stainless steel, M1 Material classification: 1.4301 (X5CrNi18-10+F3:F21A3F3: F23F3:F24A3F3:F23F3:FF3:F24) 1.4305 (X8CrNiS18-9) 1.4401 (X5CrNiMo17-12-2, X4CrNiMo17-12-2, X5CrNiMo18-10) 1.4404 (X3CrNiMo17-12-2) 1.4541 (X6CrNiTi18-10) 1.4571 (X6CrNiMoTi17-12-2) 1.4841 (X15CrNiSi25-20) 1.4958 (X5NiCrAlTi31-20)	120 - 180
M2 main M – Stainless steel, M2 Material classification: 1.4362 (X2CrNiN23-4 (Ally 2304)) 1.4462 (X2CrNiMoN22-5-3) 1.4501 (X2CrNiMoCuWN25-7-4) 1.4871 (X53CrMnNiN21-9) 1.4310 (X9CrNi18-8, X10CrNi18-8)	80 - 130

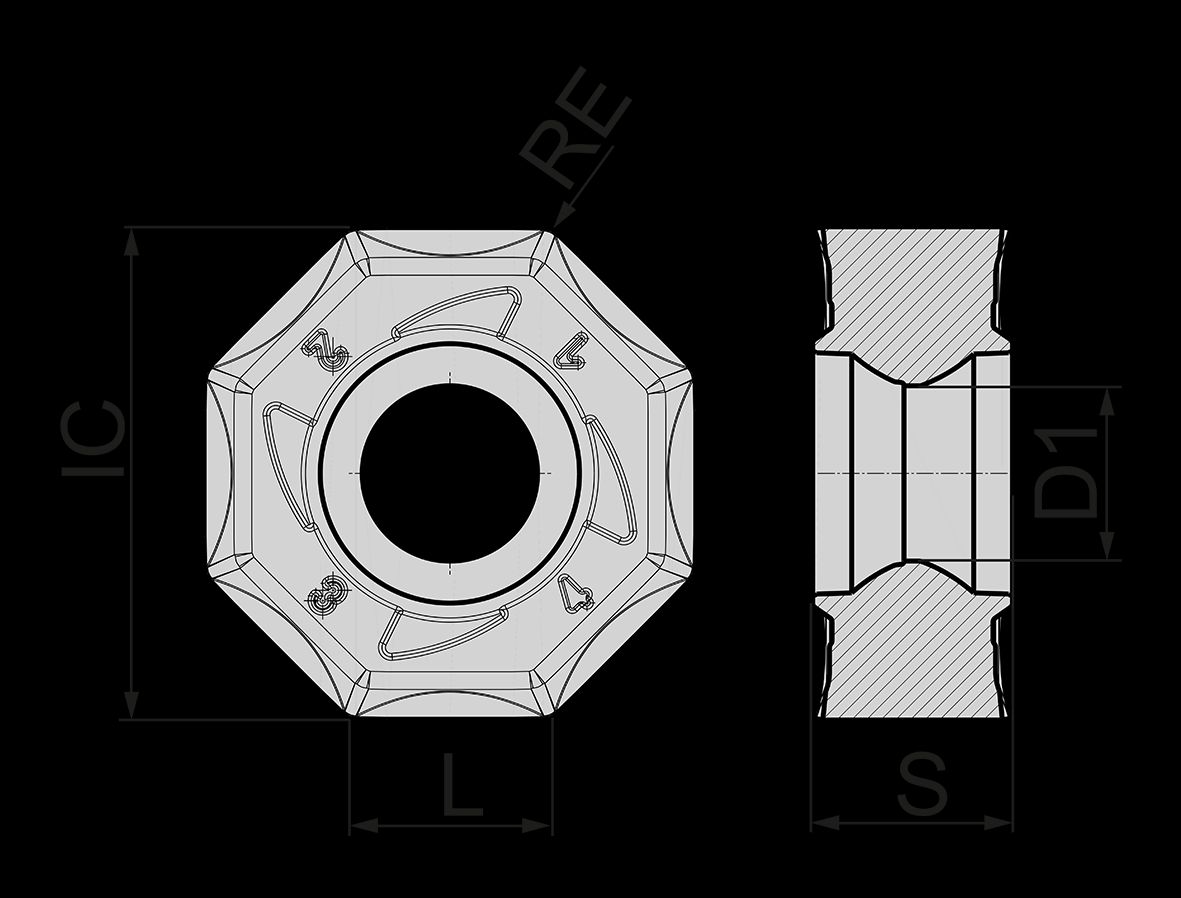

corner angles [EPSR]	135
length of cutting edge [L]	5
inner circle [IC]	12,7
cutting edge height [S]	5.8
corner radius [RE]	0.8
insert execution r/n/l [IH] AExecution of indexable insert running direction R= Indexable insert right hand cutting L= Indexable insert left hand cutting N= for both cutting directions	N
insert height [S1]	5.8
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	BCM35M
coating [COATN] Description of coating.	PVD
Norm [NSM] Indicates the standard to which the product belongs.	DIN-4000-76
H1 secondary H – Hardened materials, hardened cast iron, H1 Material classification: 1.2343 52HRC (X38CrMoV5-1) 1.2767 54HRC (45NiCrMo16)	100 - 140
H2 secondary H – Hardened materials, hardened cast iron, H2 Material classification: 1.2714 60HRC (55NiCrMoV7) 1.2842 58HRC (90MnCrV8)	80 - 120
H4 secondary H – Hardened materials, hardened cast iron, H4 Material classification: 0.9620 52HRC (G-X260NiCr42) 0.9650 53HRC (G-X260Cr27)	90 - 130
S1 secondary S – Super alloys, S1 Material classification: 3.7024 (Ti99.5) 3.7025x (Ti99.8) 3.7034 (Ti99.7)	70 - 90
S2 secondary S – Super alloys, S2 Material classification: 3.7115.1 (TiAl5Sn2.5) 3.7124 (TiCu2) 3.7164 (TiAl6V4) 3.7165 (TiAl6V4) 3.7174 (TiAl6V4Sn2)	35 - 45
S3 secondary S – Super alloys, S3 Material classification: 1.3912 (D1) 1.3926 (FeNi48)	50 - 100
S4 secondary S – Super alloys, S4 Material classification: 2.4375 (NiCu30Al3Ti) 2.4642 (NiCr30Fe) 2.4665 (NiCr22Fe18Mo) 2.4668 (NiCr19Fe19Nb5Mo3) 2.4669 (NiCr15Fe7Ti2Al) 2.4858 (NiFe30Cr21Mo3) 2.4819 (NiMo16Cr15W) 2.4856 (NiCr22Mo9Nb)	30 - 80
coating coating type CVD or PVD.	Chronos
insert size The size of the plate is specified in millimetres.	ONMU 0506
edges/ insert Number of usable cutting edges per indexable insert.	16
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	ONMU
