BC70 05 M18
Ordernumber
5127512
Cold forming tap - metric right
Cold forming tap made of powder metallurgical high-performance high-speed steel (HSSE PM) with B-XT high performance PVD coating. Suitable for machining steel, stainless steel, cast iron and superalloy materials as well as non-ferrous metals.
ISO metric right-hand thread - DIN13
Form C - Straight grooved for blind-hole and through-hole
Maximum thread depth 3xD
Tolerance class 6HX
Product data
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.). | HSS-E-PM |
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.). | HSSE PM |
coating [COATN] Description of coating. | B-XT |
| thread diameter metric [TD] | 18 |
| thread pitch [TP] | 2.5 |
| threading part length [THL] | 28 |
| total length [OAL] | 125 |
| connection diameter machine [DCONMS] | 14 |
| shank length [LS] | 125 |
| number of edges [NOF] | 4 |
| twist direction [FHH] | N |
| cutting direction [HAND] | R |
| tool execution [BMC] | S |
| former/ drill | Maschinengewindeformer |

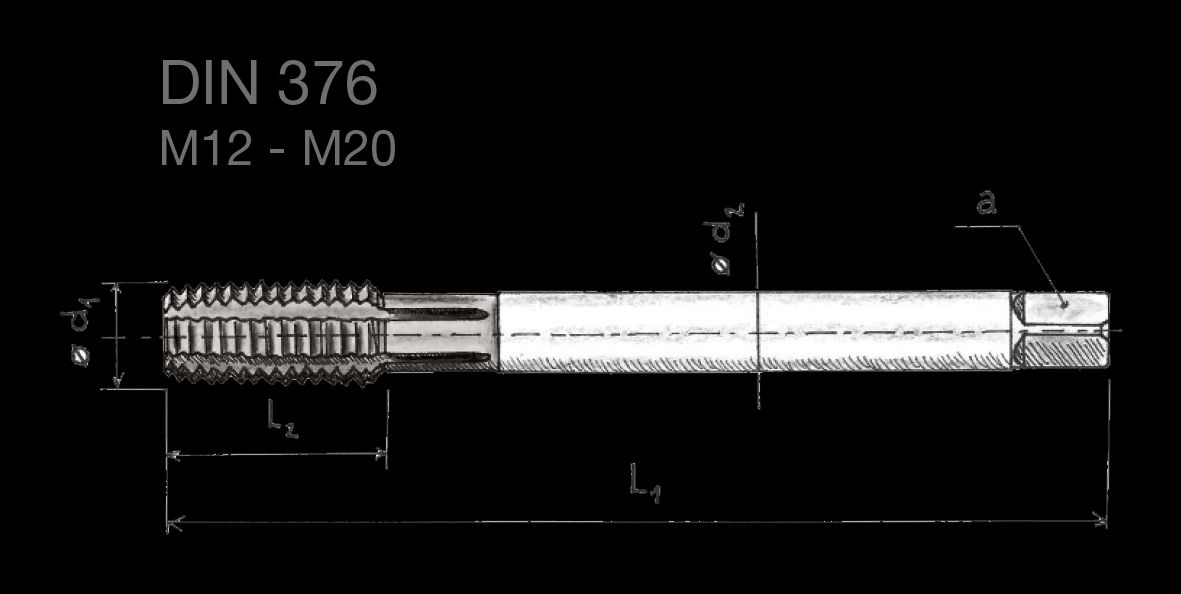

2D Drawing
