S190 L M4
Ordernumber
5127615
Round die - metric left
Round die made of high-performance high-speed steel (HSS) blank. Suitable for machining steel, stainless steel and cast iron materials as well as non-ferrous metals.
ISO metric left-hand thread - DIN13
Tolerance class ISO 6g
Product data
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.). | HSS |
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.). | HSS |
coating [COATN] Description of coating. | ohne |
| thread diameter metric [TD] | 4 |
| thread pitch [TP] | 0.7 |
| body diameter [BD] | 20 |
| cutting direction [HAND] | L |
| tool execution [BMC] | S |
| former/ drill | Schneideisen |

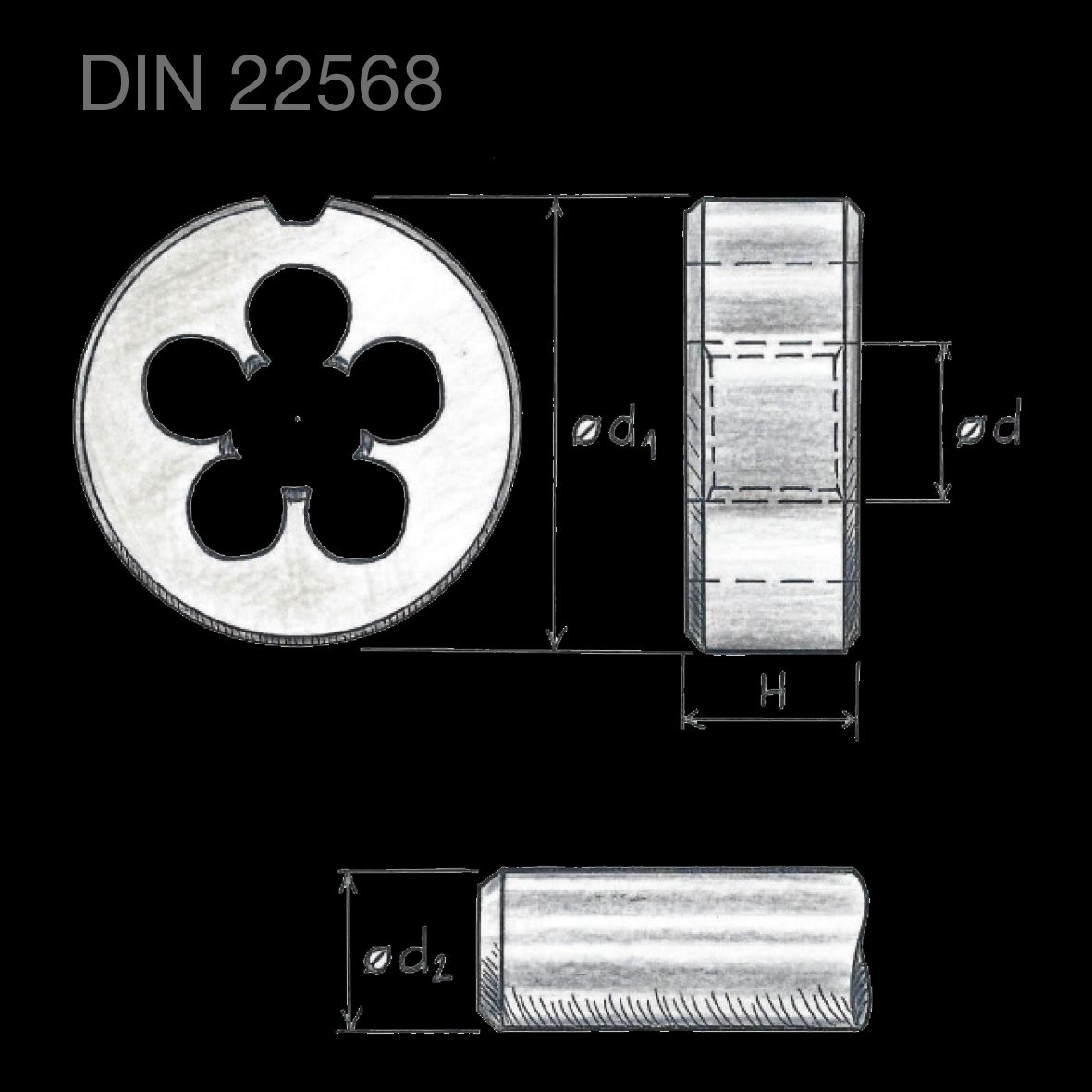

2D Drawing
