S193 G 1/8"
Ordernumber
5127780
Round die - British standard pipe thread
Round die made of high-performance high-speed steel (HSS) blank. Suitable for machining steel, stainless steel and cast iron materials as well as non-ferrous metals.
British standard right-hand pipe thread - EN ISO 228
Tolerance class A
Product data
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.). | HSS |
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.). | HSS |
coating [COATN] Description of coating. | ohne |
| thread diameter inch [TDIN] | 0.125 |
| thread diameter inch fraction [TDFR] | 1 |
| pitch per inch [TPI] | 28 |
| body diameter [BD] | 30 |
| cutting direction [HAND] | R |
| tool execution [BMC] | S |
| former/ drill | Schneideisen |

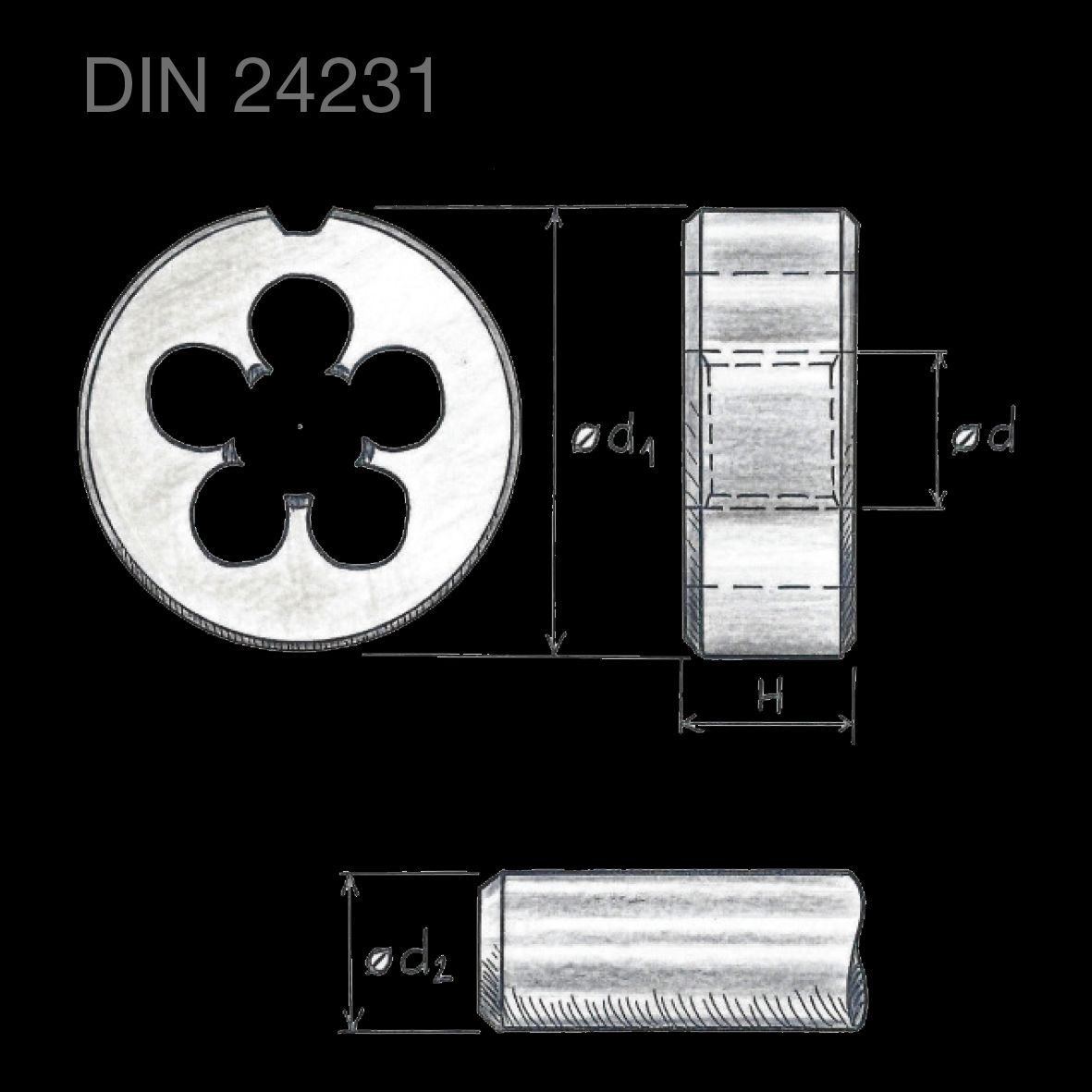

2D Drawing
