BE90 SD06.020 Z03
Ordernumber
5142941
End milling cutter DELTAtec 90P feed
Steel base body with shaft and weld-on clamping surface for holding HFC indexable inserts from the DELTAtec 90P feed system in system size 06.
Product data
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
name of tool system Description of the tool system. | DELTAtec 90P Feed |
| connection diameter machine [DCONMS] | 20 |
| shank length [LS] | 50 |
| cutting direction [HAND] | R |
| cutting diamter [DC] | 20 |
| total length [OAL] | 90 |
| head length [LH] | 40 |
number of edges usable, circumference [ZEFP] Number of edges usable, circumference. | 3 |
number of edges usable, face side [ZEFF] number of edges usable, face side. | 3 |
cutter type A distinction is made between the following milling cutter types:
| Schaftfräser |

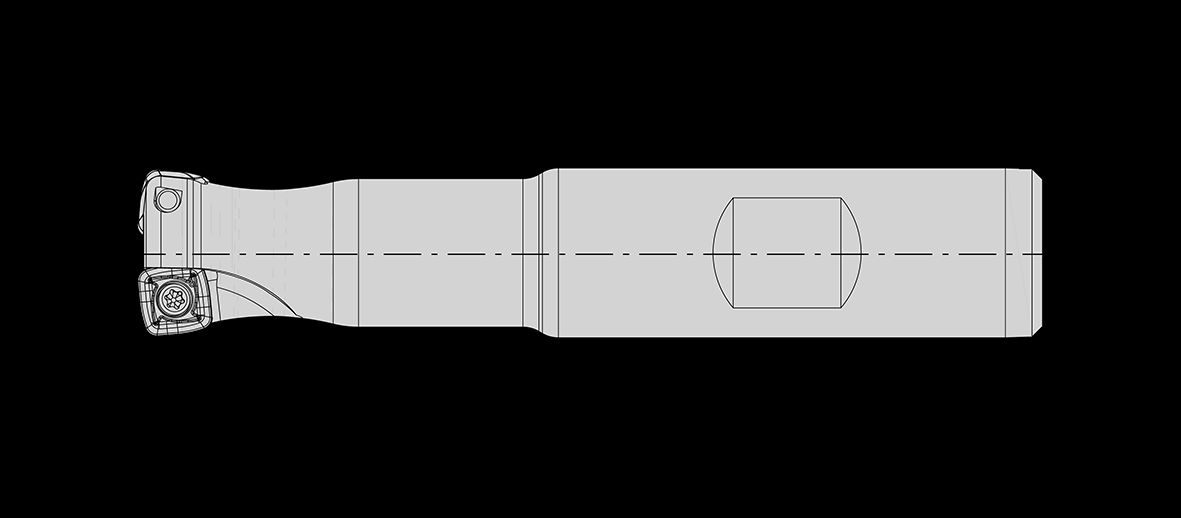

2D Drawing
Usage
