BE90 LP06.020 Z05
Ordernumber
5148554
End milling cutter BETAtec 90P feed
Multifunctional steel base body with shaft and weld-on clamping surface for holding HFC and 90° indexable inserts from the BETAtec 90P feed system in system size 06.
Product data
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
name of tool system Description of the tool system. | BETAtec 90P Feed |
| connection diameter machine [DCONMS] | 20 |
| shank length [LS] | 50 |
| cutting direction [HAND] | R |
| cutting diamter [DC] | 20 |
| total length [OAL] | 90 |
| head length [LH] | 40 |
number of edges usable, circumference [ZEFP] Number of edges usable, circumference. | 5 |
number of edges usable, face side [ZEFF] number of edges usable, face side. | 5 |
cutter type A distinction is made between the following milling cutter types:
| Schaftfräser |

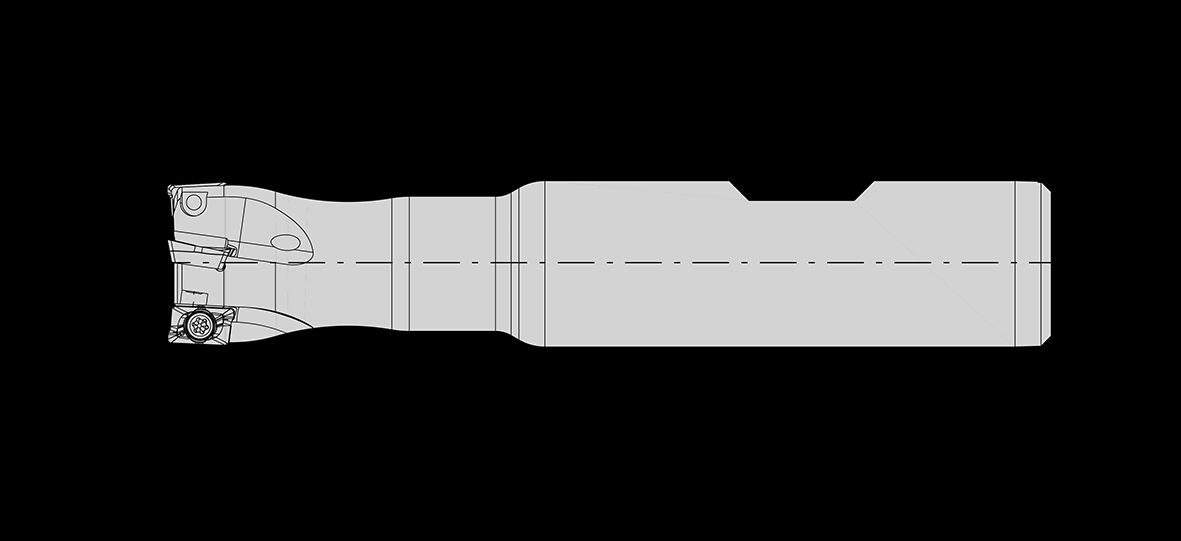

2D Drawing

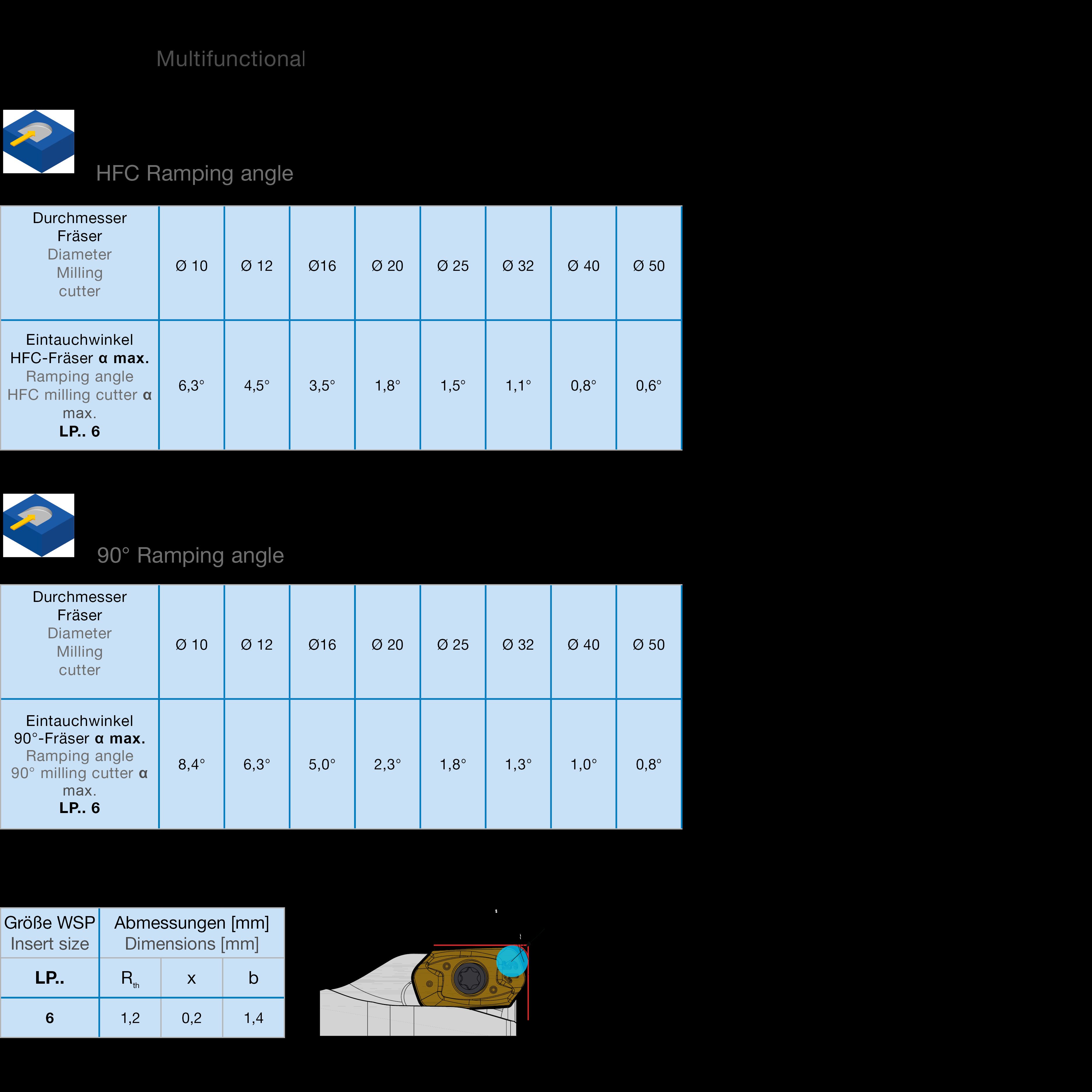

Usage
Downloads
Contact
Do you have any questions?
Suitable products
Milling
LPMX 060204 - MP BCP35M
Ordernumber
5150000

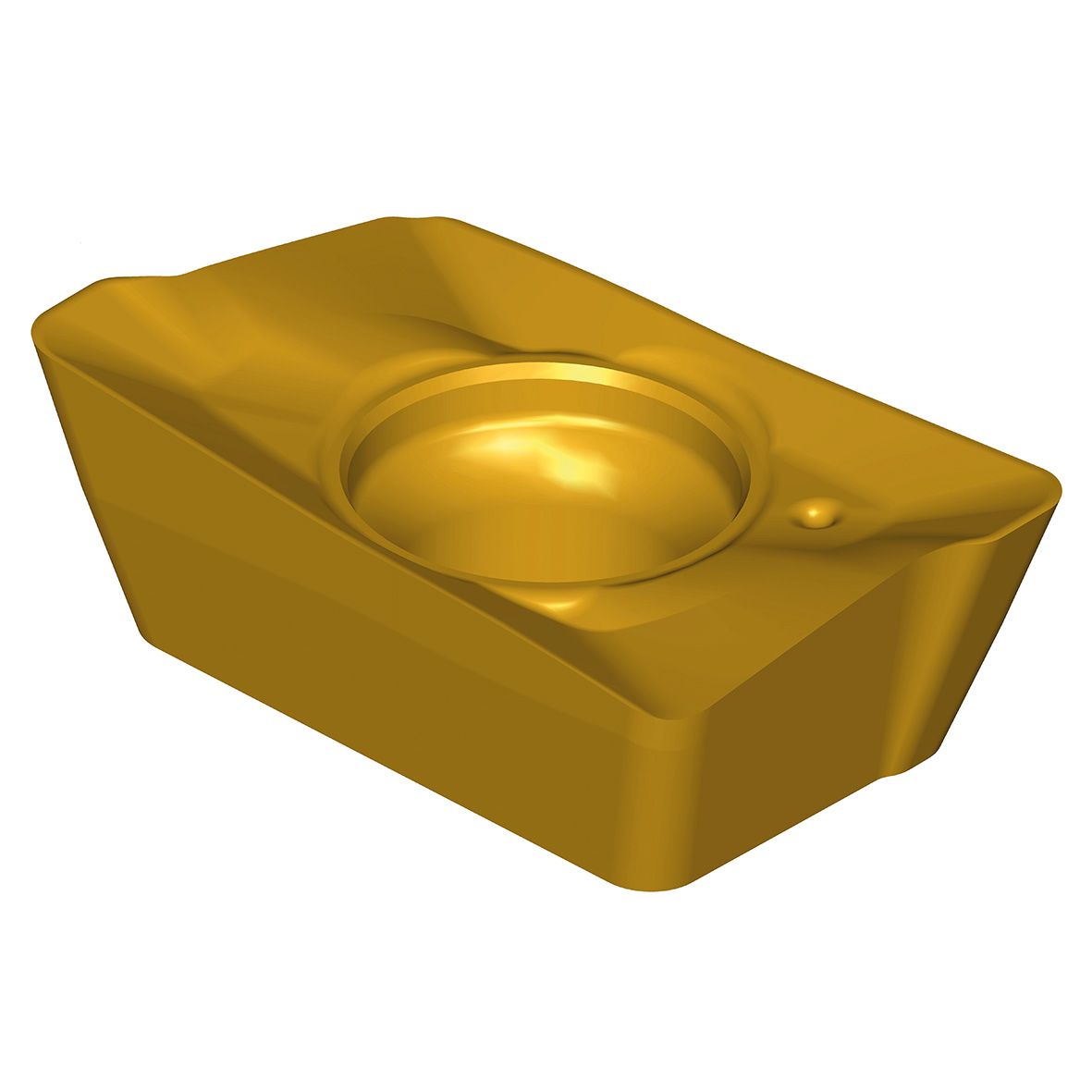

LPMX 060204 - MM BCM35M
Ordernumber
5150001
LPMX 060204 - MP BCP25M
Ordernumber
5149998
LPMX 060210-MMH BCM35M
Ordernumber
5150007

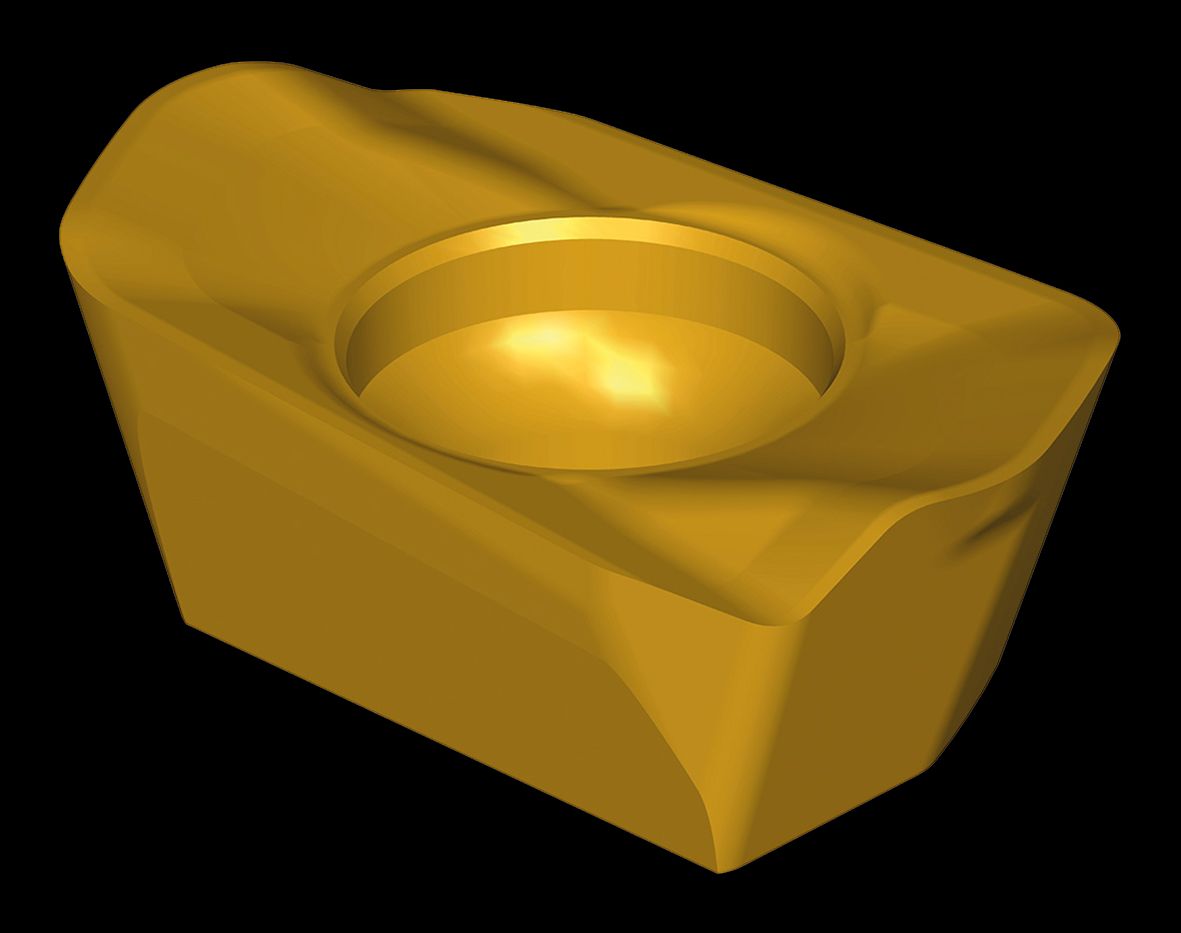

LPMX 060210-MPH BCP25M
