BSU90 LP06.0750 Z05 M10
Ordernumber
5156795
Screw on type BETAtec 90P feed
Multifunctional steel base body with M10 connection thread for holding HFC and 90° indexable inserts from the BETAtec 90P feed system in system size 06.
Product data
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
name of tool system Description of the tool system. | BETAtec 90P Feed inch |
| connection diameter machine [DCONMS] | 10 |
| shank length [LS] | 0.75 |
| cutting direction [HAND] | R |
| cutting diamter [DC] | 0.75 |
| total length [OAL] | 1.81 |
| head length [LH] | 1.06 |
number of edges usable, circumference [ZEFP] Number of edges usable, circumference. | 5 |
number of edges usable, face side [ZEFF] number of edges usable, face side. | 5 |
cutter type A distinction is made between the following milling cutter types:
| Einschraubfräser |

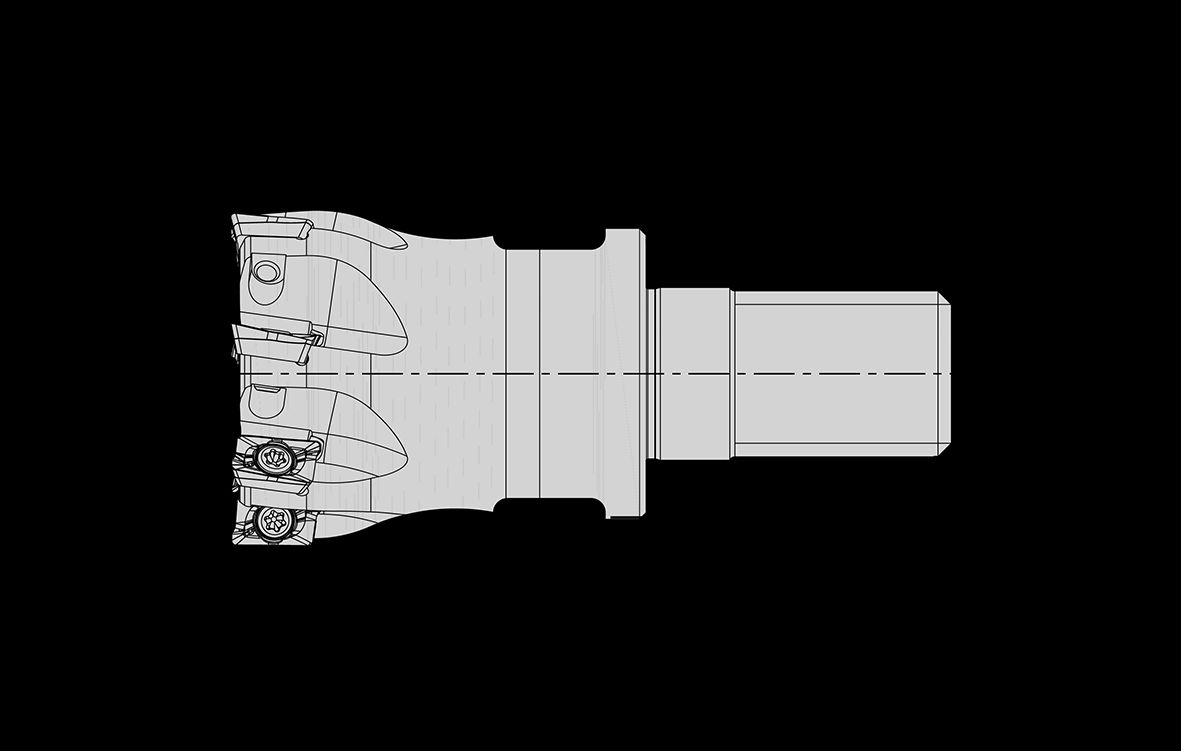

2D Drawing

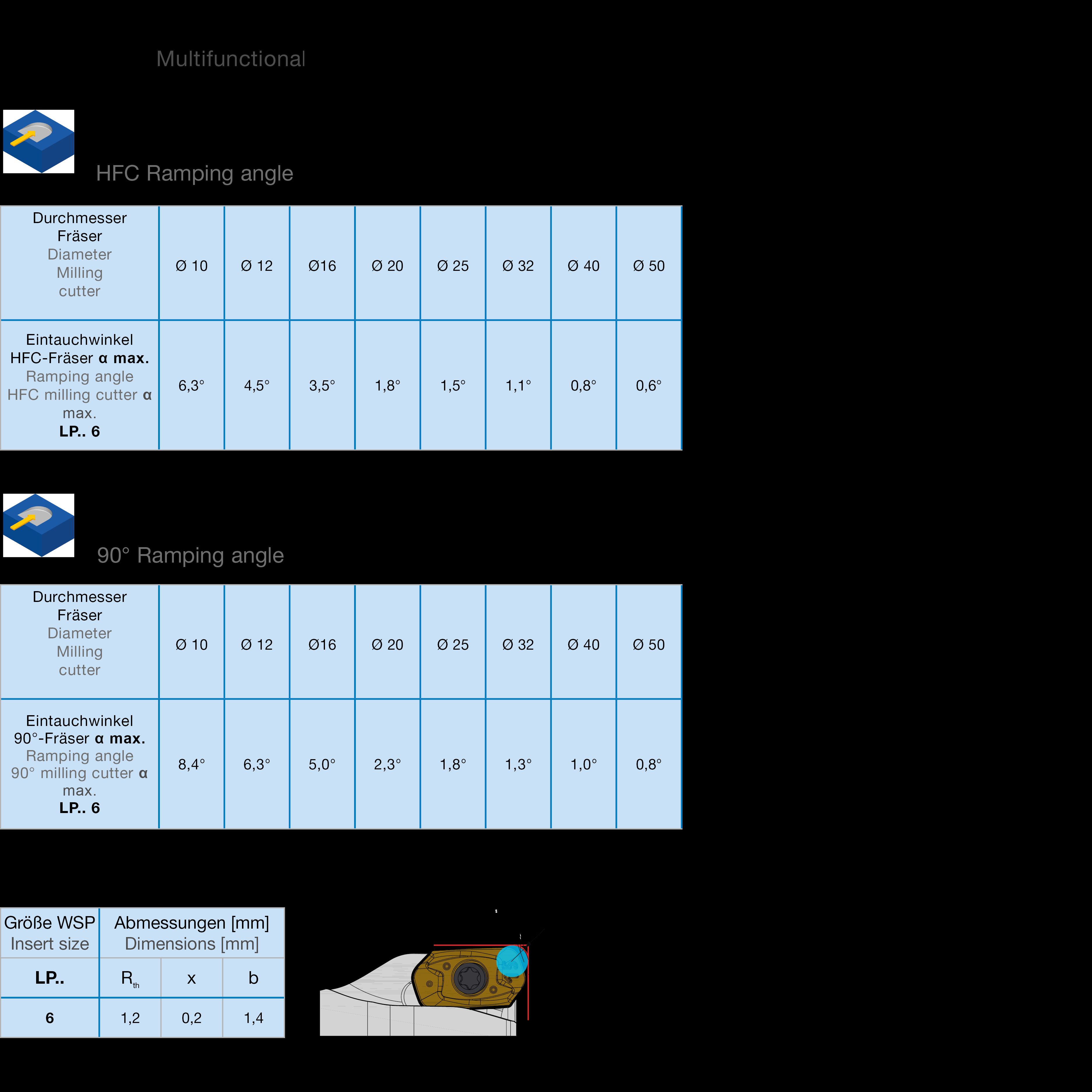

Usage
Downloads
Contact
Do you have any questions?
Suitable products
Milling
LPMX 060204 - MP BCP35M
Ordernumber
5150000
LPMX 060204 - MM BCM35M
Ordernumber
5150001
LPMX 060204 - MP BCP25M
Ordernumber
5149998
LPMX 060210-MMH BCM35M
Ordernumber
5150007
LPMX 060210-MPH BCP25M
Ordernumber
5150006
LPMX 060210-MHH BCH10M
Ordernumber
5150010
LPMX 060210-MPH BCP20M
Ordernumber
5150004
LPMX 060220-MH
Ordernumber
5168674
LPMX 060220-MH
Ordernumber
5168675
