BF00 RX12.040 Z04
Ordernumber
5171474
Face milling cutter VARIOtec 00P
Face milling cutter made of steel in neutral execution 0° axial, for holding indexable inserts from the VARIOtec 00P system in system size 12.
Product data
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
name of tool system Description of the tool system. | VARIOtec |
| cutting direction [HAND] | R |
| tool execution [BMC] | S |
| cutting diamter [DC] | 40 |
number of edges usable, face side [ZEFF] number of edges usable, face side. | 4 |
| depth of cut max. [APMX] | 6 |
| hub diameter [DHUB] | 35 |
cutter type A distinction is made between the following milling cutter types:
| Aufsteckfräser |

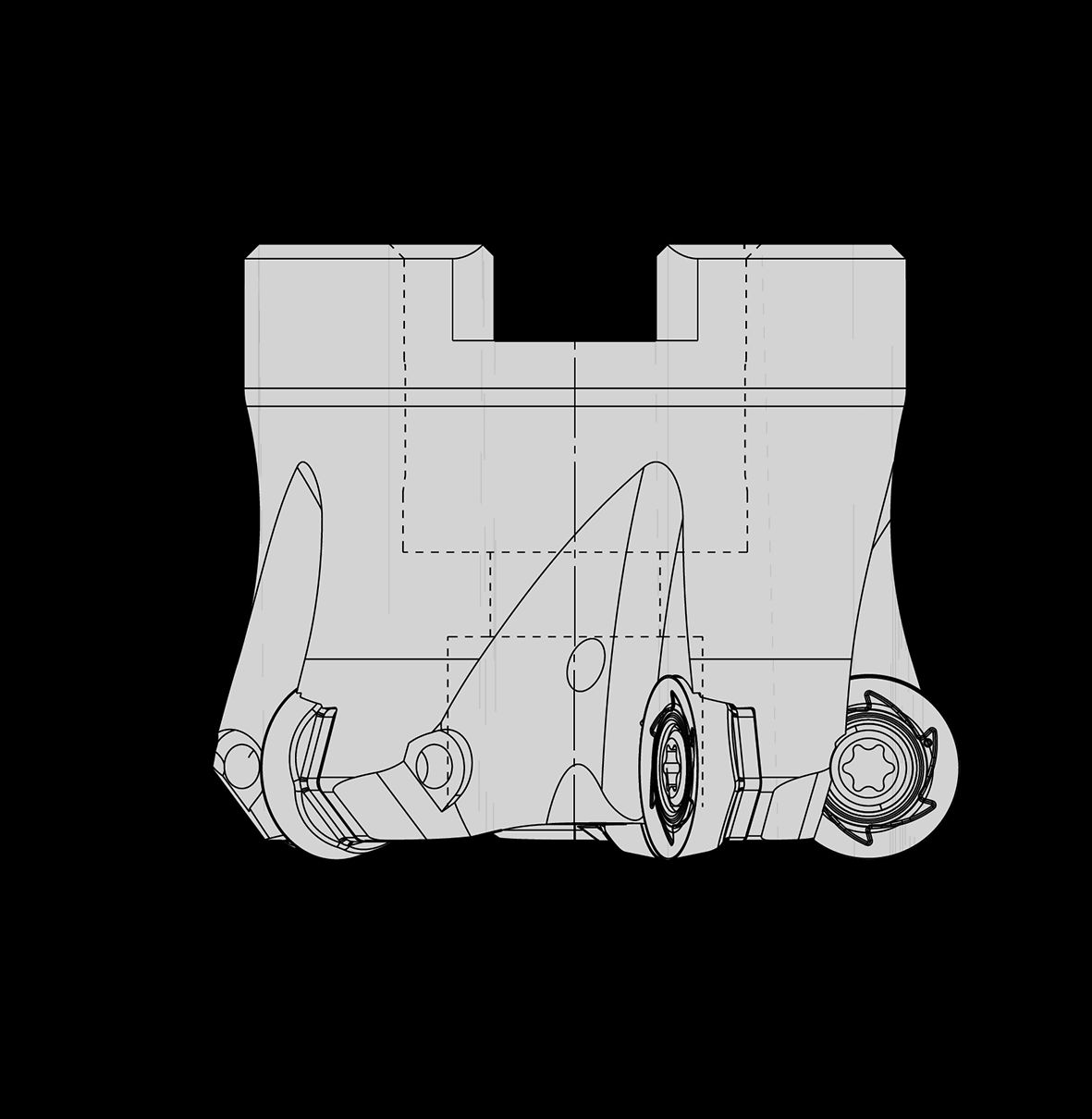

2D Drawing
Downloads
