BF90 LN09.080 Z10_ZUK
Ordernumber
5191041
Product data
| connection diameter machine [DCONMS] | 27 |
| cutting direction [HAND] | R |
| cutting diamter [DC] | 80 |
| total length [OAL] | 50 |
setting angle [KAPR] Positioning of the indexable insert in the carrier to the workpiece axis. | 90 |
number of edges usable, circumference [ZEFP] Number of edges usable, circumference. | 10 |
number of edges usable, face side [ZEFF] number of edges usable, face side. | 10 |
| depth of cut max. [APMX] | 8 |
| hub diameter [DHUB] | 58 |

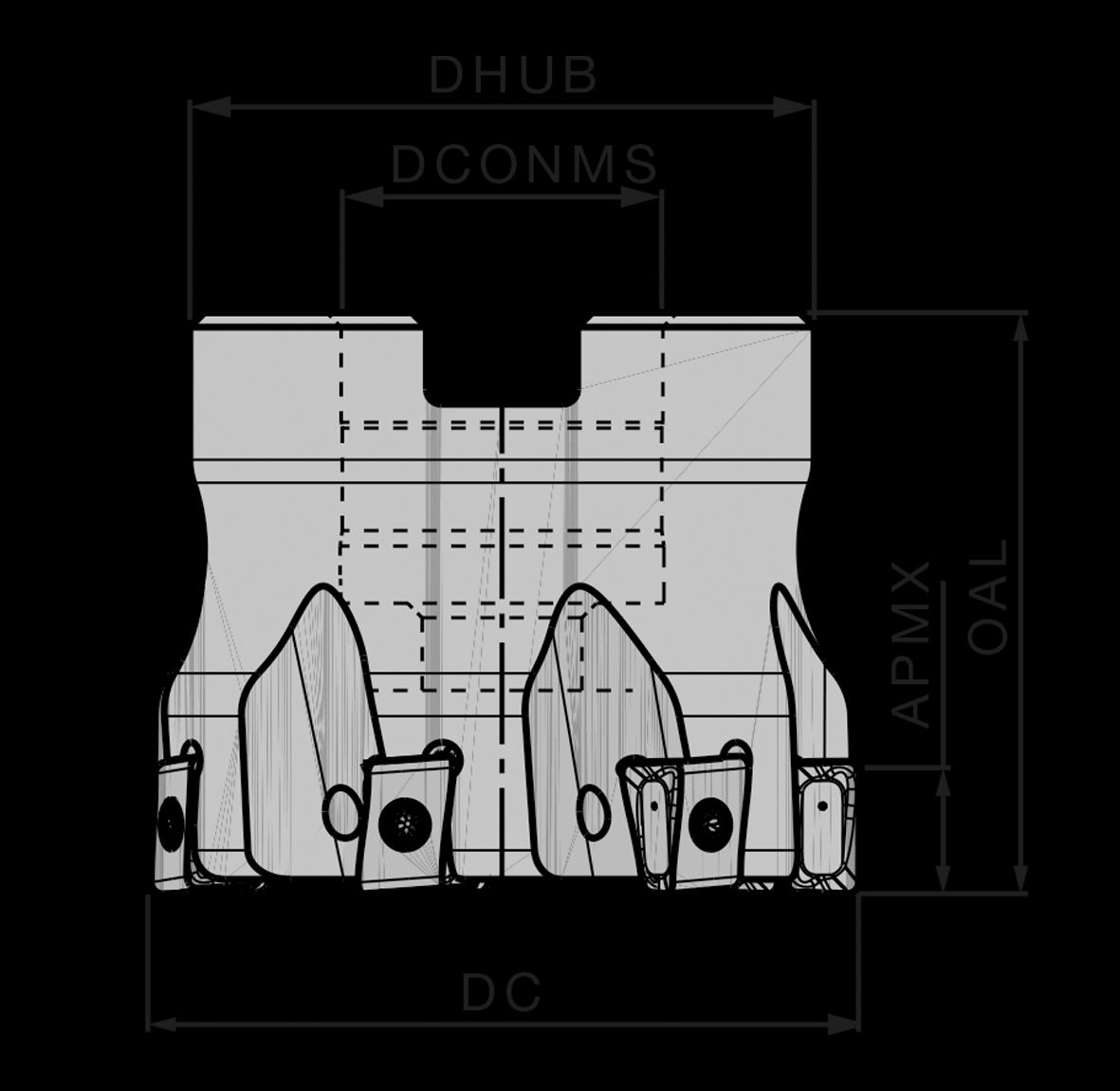

2D Drawing
