16IR 1.25ISO BCU20T

Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).

The minimum delivery quantity must be fulfilled for an order.

P – Steel, P1
Material classification:

1.0037 (S25GT)
1.0503 (C45)
1.0718 (11SMnPb30)
1.1158 (C25E)
1.1191 (C45E)
1.1203 (C55E)
1.1274 (C101E, C100S)

P – Steel, P2
Material classification:

1.2312 (40CrMnNiMoS8-6-4)
1.2714 (55NiCrMoV7)
1.3505 (100Cr6)
1.6587 (17CrNiMo6, 18CrNiMo7-6)
1.7225 (42CrMo4)
1.7361 (32CrMo12)
1.7715 (14MoV6-3)
1.8523 (39CrMoV13-9)

P – Steel, P3
Material classification:

1.2085 (X33CrS16)
1.2343 (X38CrMoV5-1)
1.2379 (X153CrMoV12)
1.2581 (X30WCrV9-3)
1.2601 (X165CrMoV12)
1.3243 (HS6-5-2-5)
1.3343 (HS6-5-2)
1.7701 (51CrMoV4)

P – Steel, P4
Material classification:

1.4006 (X12Cr13, X10Cr13)
1.4034 (X46Cr13)
1.4057 (X19CrNi17-2)
1.4510 (X3CrTi17)
1.4542 (X5CrNiCuNb16-4)
1.4747 (X80CrNiSi20)

P – Steel, P5
Material classification:

1.1120 (GS-20Mn5)
1.5419 (GS-22Mo4)
1.6571 (GS-34CrNiMo6)
1.6750 (GS-20NiCrMo3-7)
1.7231 (G42CrMo4)
1.7379 (GS-18CrMo9-10)

M – Stainless steel, M1
Material classification:

1.4301 (X5CrNi18-10+F3:F21A3F3: F23F3:F24A3F3:F23F3:FF3:F24)
1.4305 (X8CrNiS18-9)
1.4401 (X5CrNiMo17-12-2, X4CrNiMo17-12-2, X5CrNiMo18-10)
1.4404 (X3CrNiMo17-12-2)
1.4541 (X6CrNiTi18-10)
1.4571 (X6CrNiMoTi17-12-2)
1.4841 (X15CrNiSi25-20)
1.4958 (X5NiCrAlTi31-20)

M – Stainless steel, M2
Material classification:

1.4362 (X2CrNiN23-4 (Ally 2304))
1.4462 (X2CrNiMoN22-5-3)
1.4501 (X2CrNiMoCuWN25-7-4)
1.4871 (X53CrMnNiN21-9)
1.4310 (X9CrNi18-8, X10CrNi18-8)

K – Cast iron materials, K1
Material classification:

0.6010 (GG-10, GG 10)
0.6015 (GG-15, GG 15)
0.6020 (GG-20, GG 20)
0.6025 (GG-25, GG 25)
0.6030 (GG-30, GG 30)
0.6035 (GG-35, GG 35)
0.6040 (GG-40, GG 40)

K – Cast iron materials, K2
Material classification:

0.7040 (GGG-40)
0.7050 (GGG-50)
0.7060 (GGG-60)
0.7070 (GGG-70)
5.3400 (EN-GJS-800-10)
5.3403 (EN-GJS-1050-6)
5.3404 (EN-GJS-1200-3)

K – Cast iron materials, K3
Material classification:

0.8035 (GTW-35-04, EN-GJMW-350-4)
0.8040 (EN-GJMW-400-5, GTW-40-05)
0.8045 (EN-GJMW-450-7)
0.8135 (EN-GJMB 350-10)
0.8145 (EN-GJMB 450-6, GTS-45-06)
0.8155 (EN-GJMB 550-4, GTS-55-04)
0.8165 (EN-GJMB 650-2, GTS-65-02)
0.8170 (EN-GJMB 700-2, GTS-70-02)

N – Non ferrous materials, N1
Material classification:

3.0205 (Al99)
3.0305 (Al99.9)
3.0505 (AlMn0.5Mg0.5)
3.0915 (AlFeSi)
3.1255 (AlCuSiMn)
3.1325 (AlCuMg1)
3.1645 (AlCuMgPb)
3.1734 (AlCu4Mg1.5Ni2)

N – Non ferrous materials, N2
Material classification:

3.2134 (G-AlSi5Cu1Mg)
3.2373 (G-AlSi9Mg)
3.2383 (G-AlSi10MgCu)
3.2581 (G-AlSi12)
3.3261 (G-AlMg5Si)
3.3525 (AlMg2Mn0.3)
3.3545 (AlMg4Mn)
3.4345 (AlZnMgCu0.5)

N – Non ferrous materials, N3
Material classification:

2.0060 (E-Cu57)
2.0240 (CuZn15)
2.0360 (CuZn40)
2.0550 (CuZn40Al2)
2.0855 (CuNi2Si)
2.0978 (CuAl11Ni6Fe6)
2.1086 (G-CuSn10Zn)
2.1188 (CuSn5Pb20-C)

S – Super alloys, S1
Material classification:

3.7024 (Ti99.5)
3.7025x (Ti99.8)
3.7034 (Ti99.7)

S – Super alloys, S2
Material classification:

3.7115.1 (TiAl5Sn2.5)
3.7124 (TiCu2)
3.7164 (TiAl6V4)
3.7165 (TiAl6V4)
3.7174 (TiAl6V4Sn2)

S – Super alloys, S3
Material classification:

1.3912 (D1)
1.3926 (FeNi48)

S – Super alloys, S4
Material classification:

2.4375 (NiCu30Al3Ti)
2.4642 (NiCr30Fe)
2.4665 (NiCr22Fe18Mo)
2.4668 (NiCr19Fe19Nb5Mo3)
2.4669 (NiCr15Fe7Ti2Al)
2.4858 (NiFe30Cr21Mo3)
2.4819 (NiMo16Cr15W)
2.4856 (NiCr22Mo9Nb)

H – Hardened materials, hardened cast iron, H1
Material classification:

1.2343 52HRC (X38CrMoV5-1)
1.2767 54HRC (45NiCrMo16)

H – Hardened materials, hardened cast iron, H2
Material classification:

1.2714 60HRC (55NiCrMoV7)
1.2842 58HRC (90MnCrV8)

Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).

Description of coating.

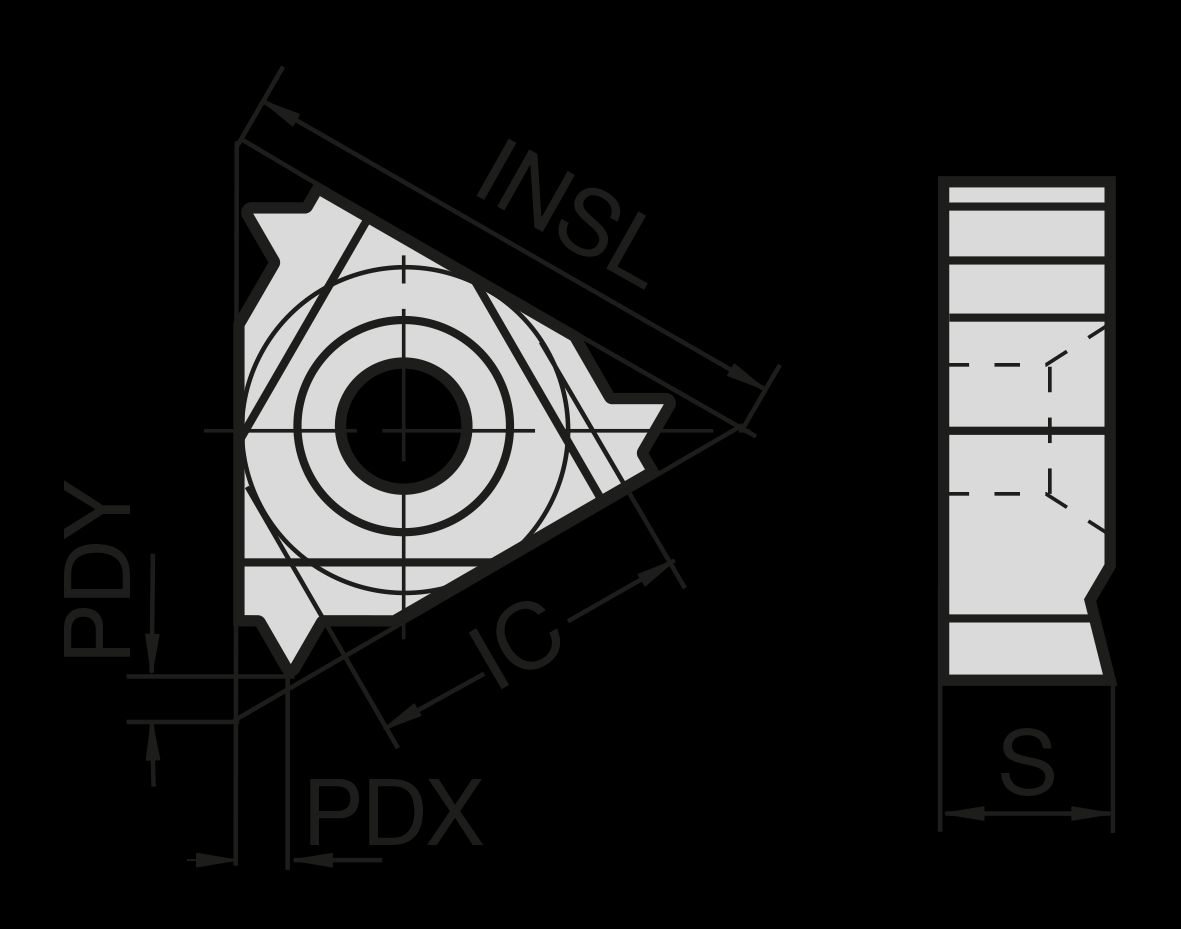

The size of the plate is specified in millimetres.

Number of usable cutting edges per indexable insert.

The insert-type describes the shape of the insert.
Example: CNMG, DCMT, XCMT etc.
