SCMT 120408-BSMS LC435D

Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)

Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).

The minimum delivery quantity must be fulfilled for an order.

Description of the tool system.

M – Stainless steel, M1
Material classification:

1.4301 (X5CrNi18-10+F3:F21A3F3: F23F3:F24A3F3:F23F3:FF3:F24)
1.4305 (X8CrNiS18-9)
1.4401 (X5CrNiMo17-12-2, X4CrNiMo17-12-2, X5CrNiMo18-10)
1.4404 (X3CrNiMo17-12-2)
1.4541 (X6CrNiTi18-10)
1.4571 (X6CrNiMoTi17-12-2)
1.4841 (X15CrNiSi25-20)
1.4958 (X5NiCrAlTi31-20)

M – Stainless steel, M2
Material classification:

1.4362 (X2CrNiN23-4 (Ally 2304))
1.4462 (X2CrNiMoN22-5-3)
1.4501 (X2CrNiMoCuWN25-7-4)
1.4871 (X53CrMnNiN21-9)
1.4310 (X9CrNi18-8, X10CrNi18-8)

AExecution of indexable insert running direction

R= Indexable insert right hand cutting

L= Indexable insert left hand cutting

N= for both cutting directions

Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).

Description of coating.

Indicates the standard to which the product belongs.

S – Super alloys, S1
Material classification:

3.7024 (Ti99.5)
3.7025x (Ti99.8)
3.7034 (Ti99.7)

S – Super alloys, S2
Material classification:

3.7115.1 (TiAl5Sn2.5)
3.7124 (TiCu2)
3.7164 (TiAl6V4)
3.7165 (TiAl6V4)
3.7174 (TiAl6V4Sn2)

S – Super alloys, S3
Material classification:

1.3912 (D1)
1.3926 (FeNi48)

S – Super alloys, S4
Material classification:

2.4375 (NiCu30Al3Ti)
2.4642 (NiCr30Fe)
2.4665 (NiCr22Fe18Mo)
2.4668 (NiCr19Fe19Nb5Mo3)
2.4669 (NiCr15Fe7Ti2Al)
2.4858 (NiFe30Cr21Mo3)
2.4819 (NiMo16Cr15W)
2.4856 (NiCr22Mo9Nb)

coating type CVD or PVD.

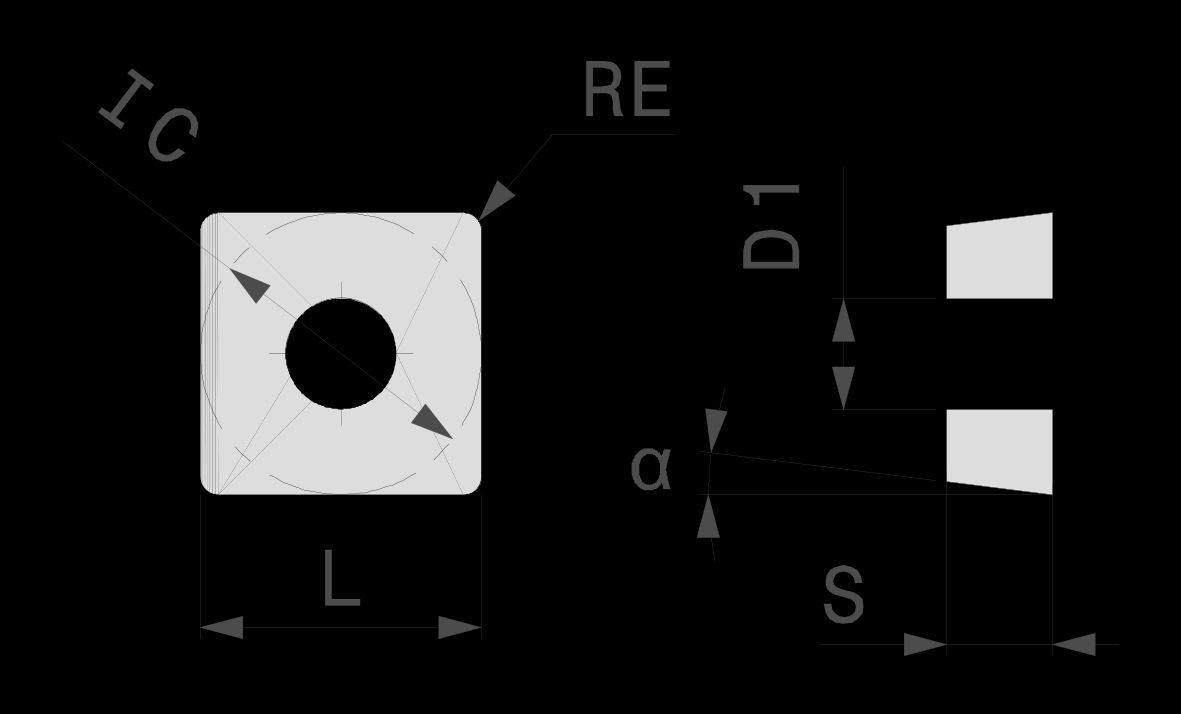

The size of the plate is specified in millimetres.

Number of usable cutting edges per indexable insert.

The insert-type describes the shape of the insert.
Example: CNMG, DCMT, XCMT etc.
