SDJCL 0808D07
Ordernumber
6406708
External turning tool holder
Left-hand tool holder with screw clamping, for indexable insert types:
DC.. 0702..
Product data
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
| cutting direction [HAND] | L |
| total length [OAL] | 60 |
setting angle [KAPR] Positioning of the indexable insert in the carrier to the workpiece axis. | 93 |
| cutting edge length [L] | 7 |
| functional range [WF] | 8 |

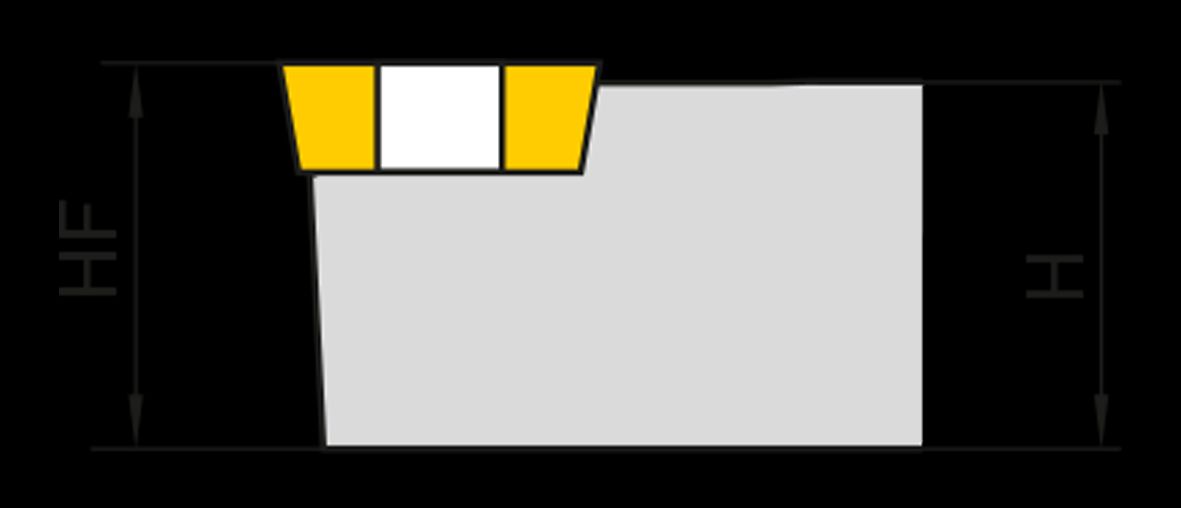

| function height [HF] | 8 |
| shank width [B] | 8 |
application type The application type indicates whether the tool is for internal or external machining | Außen |
tool holder type The tool holder type is described by the standard designation. | SDJCL |

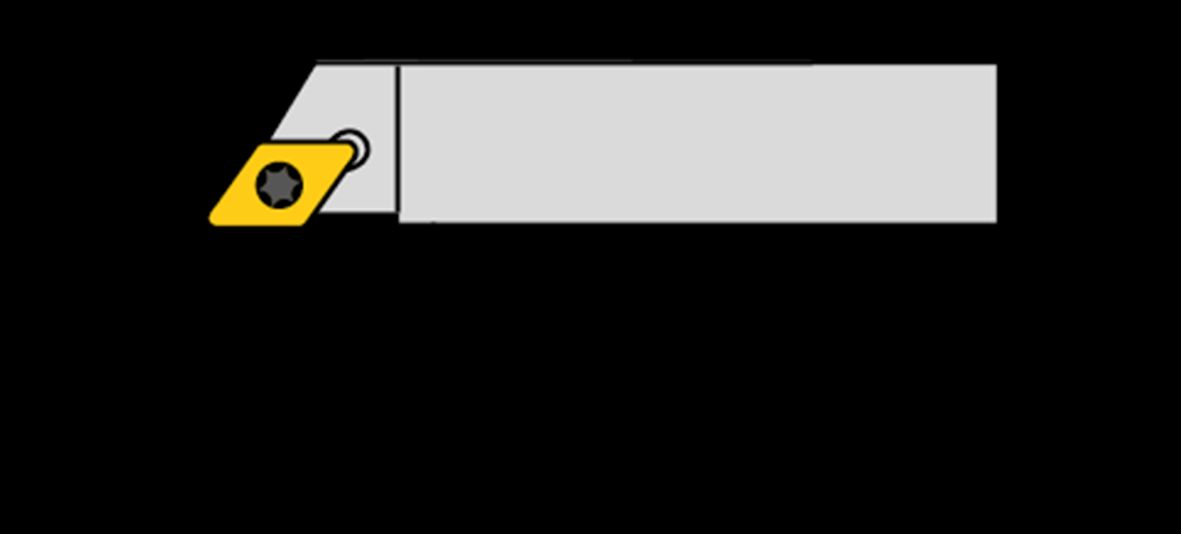

2D Drawing
Contact
Do you have any questions?
Suitable products
Turning
DCGT 0702008 FL-BC LC415X
Ordernumber
6424925
DCGT 0702008 LC415X
Ordernumber
6424927
DCGT 070204 EL-BC LC240F
Ordernumber
6413172
DCGT 0702015 LC415X
Ordernumber
6424930
DCGT 070204 EL-BC LCP25T
Ordernumber
5055892
DCMT 070202-FM LC435D
Ordernumber
5076858
DCMT 070202-FM LCM20T
Ordernumber
5093121
DCMT 070202-FP LCP15T
Ordernumber
5076855
DCMT 070202-MK BCK10T
Ordernumber
5138536
DCMT 070204-FM BCM40T
Ordernumber
5106901
DCMT 070202-FP LCP25T
Ordernumber
5076857
DCMT 070204-FM BCM25T
Ordernumber
5106904
DCMT 070202-MK BCK20T
Ordernumber
5138540
DCMT 070204-FP LCP25T
Ordernumber
5055898
DCMT 070204-MK BCK10T
Ordernumber
5138543
DCMT 070204-FP LCP15T
Ordernumber
5028117
DCMT 070204-MM LC435D
Ordernumber
5064311
DCMT 070204-MP LCP15T
Ordernumber
5028107
DCMT 070204-MP LCP25T
Ordernumber
5055899
DCMT 070204-MK BCK20T
Ordernumber
5138545
DCGT 070204-FN BCN10T
Ordernumber
5172782
DCGT 070204-FN BWN10T
Ordernumber
5170773
DCMT 070204-MM BCM25T
Ordernumber
5166568
DCMT 070202-FM BCM25T
Ordernumber
5166570
DCGT 070202-BAL LC610T
Ordernumber
6403379
DCGT 070204-BAL LC610T
Ordernumber
6403381
DCGT 070202-BAL LW610
Ordernumber
6403380
DCGT 070204-BAL LW610
Ordernumber
6403382
