WCGT 06T308-BAL LC610T

Cutting Turning Indexable inserts Turning

Ordernumber

6407947

Indexable insert for turning, internal & external

The LC610T is a coated aluminium grade. Very suitable for aluminium alloys with an Si content of over 5%. Can also be used for finishing steel and stainless steel.

The chip former BAL is suitable for finishing and medium machining of aluminium and non-ferrous metals.

Product data

chip breaker Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)	BAL
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	LC610T
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
name of tool system Description of the tool system.	Drehen-ISO
N1 main N – Non ferrous materials, N1 Material classification: 3.0205 (Al99) 3.0305 (Al99.9) 3.0505 (AlMn0.5Mg0.5) 3.0915 (AlFeSi) 3.1255 (AlCuSiMn) 3.1325 (AlCuMg1) 3.1645 (AlCuMgPb) 3.1734 (AlCu4Mg1.5Ni2)	500 - 3 000
N2 main N – Non ferrous materials, N2 Material classification: 3.2134 (G-AlSi5Cu1Mg) 3.2373 (G-AlSi9Mg) 3.2383 (G-AlSi10MgCu) 3.2581 (G-AlSi12) 3.3261 (G-AlMg5Si) 3.3525 (AlMg2Mn0.3) 3.3545 (AlMg4Mn) 3.4345 (AlZnMgCu0.5)	200 - 1 500
N3 main N – Non ferrous materials, N3 Material classification: 2.0060 (E-Cu57) 2.0240 (CuZn15) 2.0360 (CuZn40) 2.0550 (CuZn40Al2) 2.0855 (CuNi2Si) 2.0978 (CuAl11Ni6Fe6) 2.1086 (G-CuSn10Zn) 2.1188 (CuSn5Pb20-C)	150 - 400
N4 main	60 - 120

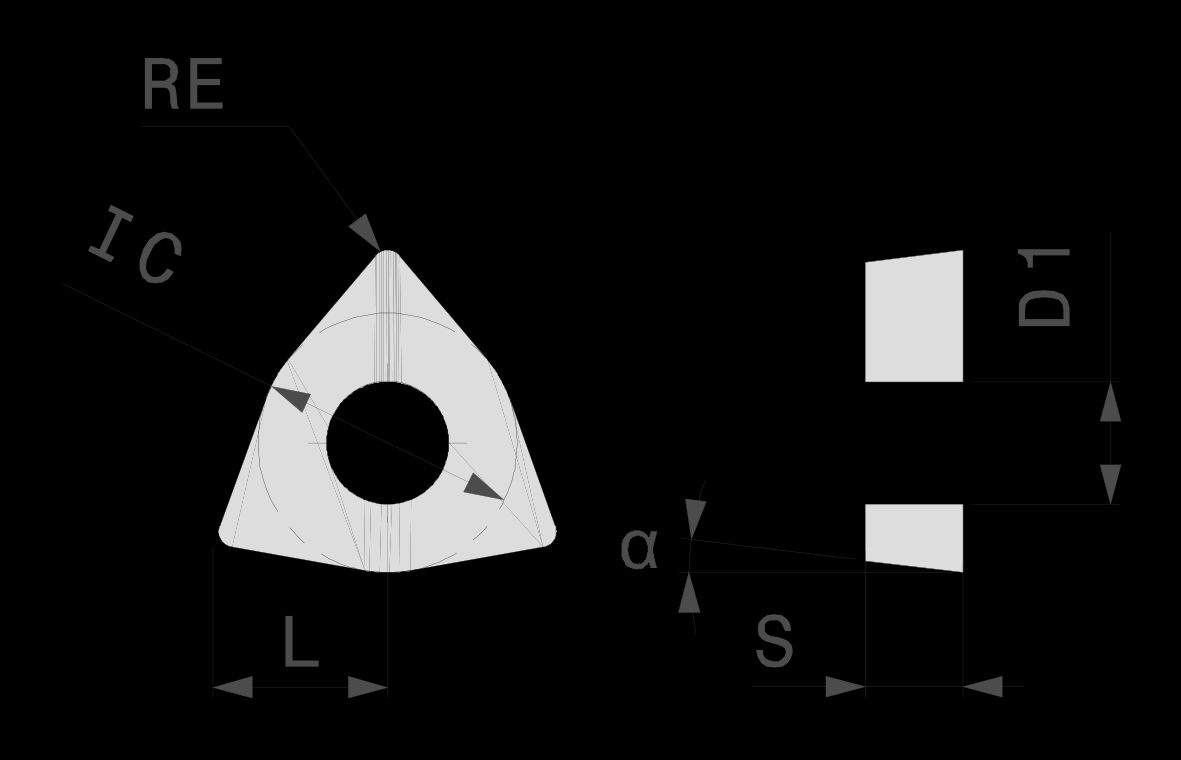

corner angles [EPSR]	80
clearance angle main cutting edge [AN]	7
length of cutting edge [L]	6.5
inner circle [IC]	9,52
cutting edge height [S]	3.97
corner radius [RE]	0.8
insert execution r/n/l [IH] AExecution of indexable insert running direction R= Indexable insert right hand cutting L= Indexable insert left hand cutting N= for both cutting directions	N
insert height [S1]	3.97
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	LC610T
coating [COATN] Description of coating.	PVD
Norm [NSM] Indicates the standard to which the product belongs.	DIN-4000-76
coating coating type CVD or PVD.	Tinalox
insert size The size of the plate is specified in millimetres.	WCGT 06T3
edges/ insert Number of usable cutting edges per indexable insert.	3
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	WCGT
