WNMG 080404 ER-BC LC240F

Cutting Turning Indexable inserts Turning

Ordernumber

6412839

Indexable insert for turning, internal & external

The tough steel grade LC240F is suitable for universal applications and interrupted cuts.

The chip former BC has a steep rake angle, especially suitable for applications with a tendency to vibrate (boring bar). Exact application details can be found in product data.

Product data

chip breaker Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)	ER-BC
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	LC240F
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
name of tool system Description of the tool system.	Drehen-ISO
P1 main P – Steel, P1 Material classification: 1.0037 (S25GT) 1.0503 (C45) 1.0718 (11SMnPb30) 1.1158 (C25E) 1.1191 (C45E) 1.1203 (C55E) 1.1274 (C101E, C100S)	60 - 200
P2 main P – Steel, P2 Material classification: 1.2312 (40CrMnNiMoS8-6-4) 1.2714 (55NiCrMoV7) 1.3505 (100Cr6) 1.6587 (17CrNiMo6, 18CrNiMo7-6) 1.7225 (42CrMo4) 1.7361 (32CrMo12) 1.7715 (14MoV6-3) 1.8523 (39CrMoV13-9)	55 - 160
P3 main P – Steel, P3 Material classification: 1.2085 (X33CrS16) 1.2343 (X38CrMoV5-1) 1.2379 (X153CrMoV12) 1.2581 (X30WCrV9-3) 1.2601 (X165CrMoV12) 1.3243 (HS6-5-2-5) 1.3343 (HS6-5-2) 1.7701 (51CrMoV4)	50 - 140
P4 main P – Steel, P4 Material classification: 1.4006 (X12Cr13, X10Cr13) 1.4034 (X46Cr13) 1.4057 (X19CrNi17-2) 1.4510 (X3CrTi17) 1.4542 (X5CrNiCuNb16-4) 1.4747 (X80CrNiSi20)	50 - 140
P5 main P – Steel, P5 Material classification: 1.1120 (GS-20Mn5) 1.5419 (GS-22Mo4) 1.6571 (GS-34CrNiMo6) 1.6750 (GS-20NiCrMo3-7) 1.7231 (G42CrMo4) 1.7379 (GS-18CrMo9-10)	60 - 150
M1 main M – Stainless steel, M1 Material classification: 1.4301 (X5CrNi18-10+F3:F21A3F3: F23F3:F24A3F3:F23F3:FF3:F24) 1.4305 (X8CrNiS18-9) 1.4401 (X5CrNiMo17-12-2, X4CrNiMo17-12-2, X5CrNiMo18-10) 1.4404 (X3CrNiMo17-12-2) 1.4541 (X6CrNiTi18-10) 1.4571 (X6CrNiMoTi17-12-2) 1.4841 (X15CrNiSi25-20) 1.4958 (X5NiCrAlTi31-20)	60 - 110

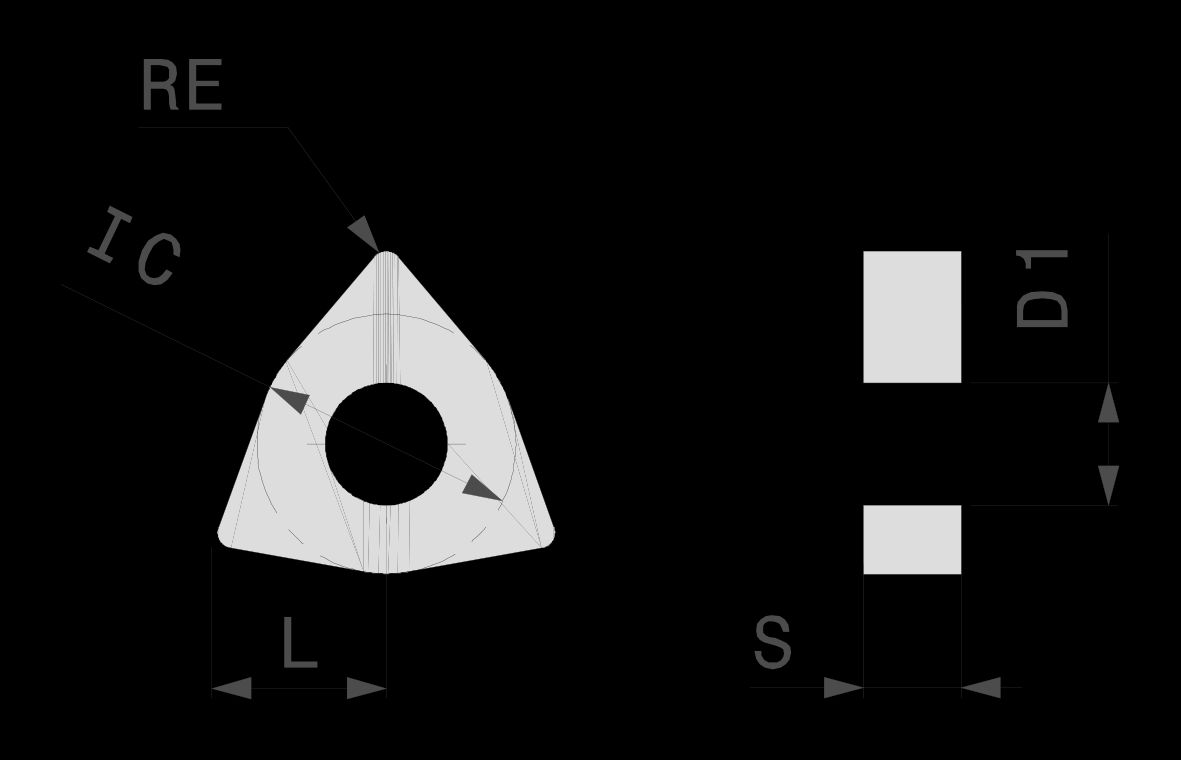

corner angles [EPSR]	80
length of cutting edge [L]	8.6
inner circle [IC]	12,7
cutting edge height [S]	4.76
corner radius [RE]	0.4
insert execution r/n/l [IH] AExecution of indexable insert running direction R= Indexable insert right hand cutting L= Indexable insert left hand cutting N= for both cutting directions	R
insert height [S1]	4.86
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	LC240F
coating [COATN] Description of coating.	CVD
Norm [NSM] Indicates the standard to which the product belongs.	DIN-4000-76
coating coating type CVD or PVD.	Nanolock gelb
insert size The size of the plate is specified in millimetres.	WNMG 0804
edges/ insert Number of usable cutting edges per indexable insert.	6
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	WNMG
