SNMX 1206 ANSN-MP BCP35M

Ordernumber

5081011

Indexable insert for face milling

Negative, 8-edged indexable insert with universal substrate and PVD coating concept for machining unalloyed, low-alloy and high-alloy steels under unstable ambient conditions. Particularly suitable for dry milling at low to medium cutting speeds.

Product data

chip breaker Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)	MP
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	BCP35M
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10

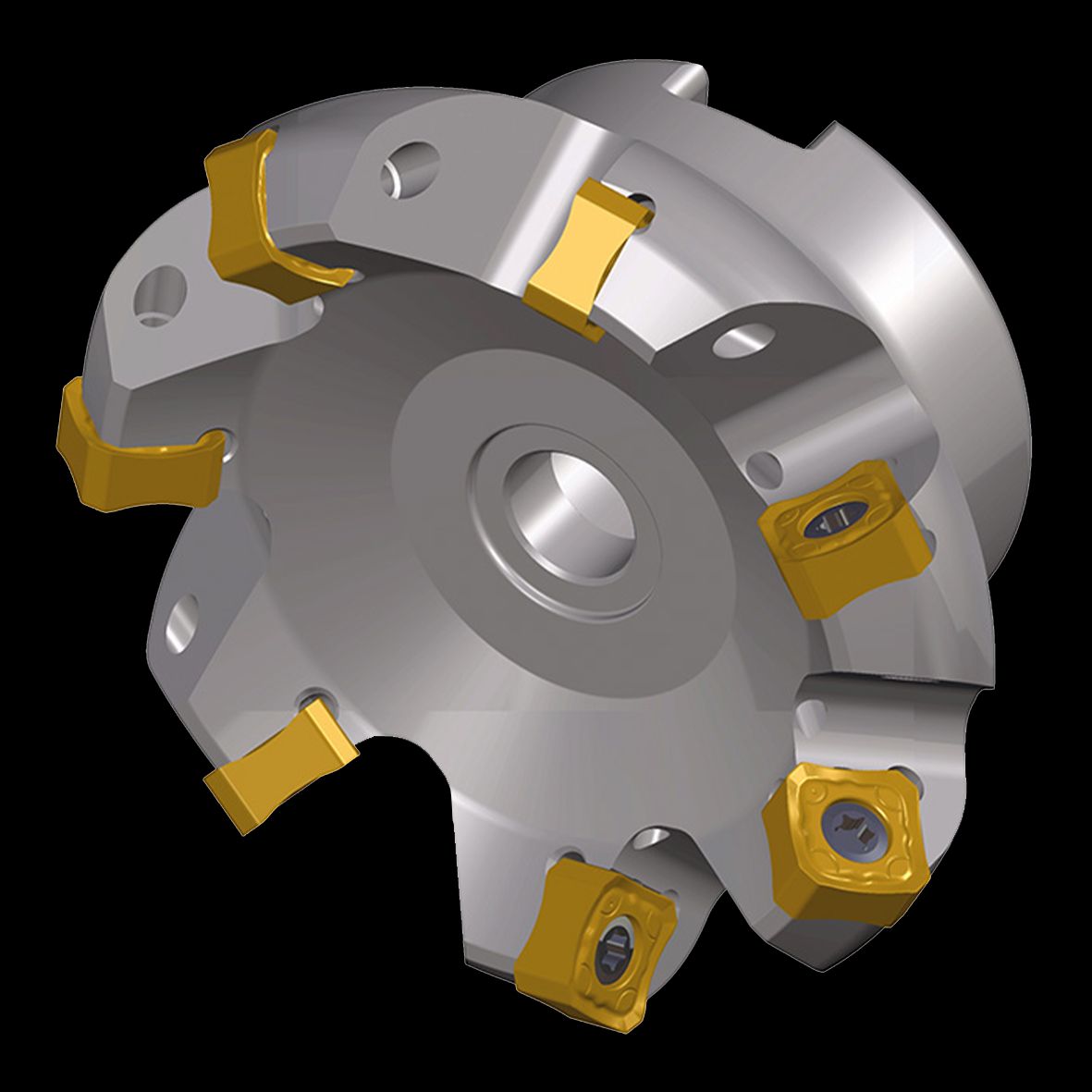

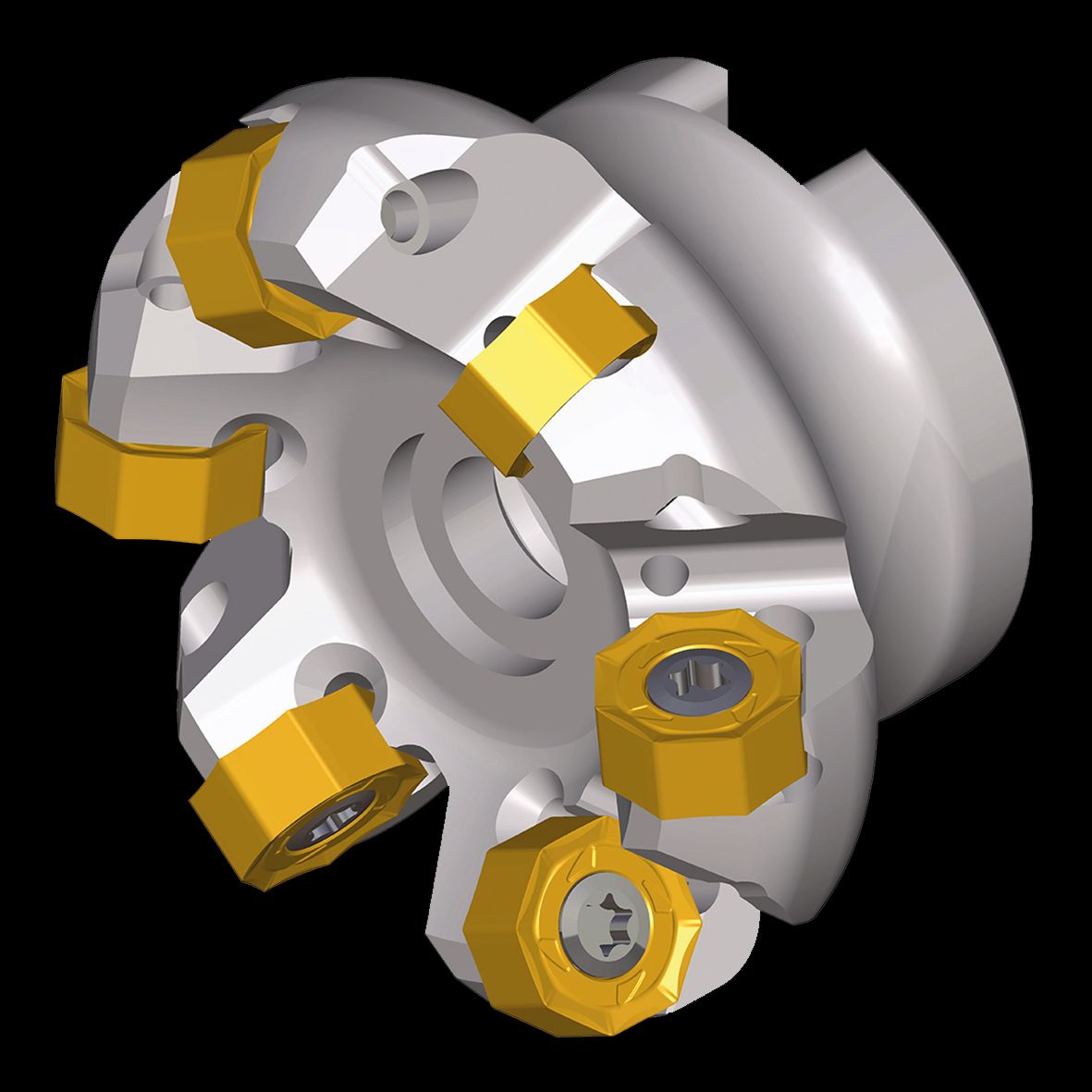

name of tool system Description of the tool system.	THETAtec 45N
P1 main P – Steel, P1 Material classification: 1.0037 (S25GT) 1.0503 (C45) 1.0718 (11SMnPb30) 1.1158 (C25E) 1.1191 (C45E) 1.1203 (C55E) 1.1274 (C101E, C100S)	180 - 260
P2 main P – Steel, P2 Material classification: 1.2312 (40CrMnNiMoS8-6-4) 1.2714 (55NiCrMoV7) 1.3505 (100Cr6) 1.6587 (17CrNiMo6, 18CrNiMo7-6) 1.7225 (42CrMo4) 1.7361 (32CrMo12) 1.7715 (14MoV6-3) 1.8523 (39CrMoV13-9)	160 - 200
P3 main P – Steel, P3 Material classification: 1.2085 (X33CrS16) 1.2343 (X38CrMoV5-1) 1.2379 (X153CrMoV12) 1.2581 (X30WCrV9-3) 1.2601 (X165CrMoV12) 1.3243 (HS6-5-2-5) 1.3343 (HS6-5-2) 1.7701 (51CrMoV4)	120 - 160
P4 main P – Steel, P4 Material classification: 1.4006 (X12Cr13, X10Cr13) 1.4034 (X46Cr13) 1.4057 (X19CrNi17-2) 1.4510 (X3CrTi17) 1.4542 (X5CrNiCuNb16-4) 1.4747 (X80CrNiSi20)	110 - 150
P5 main P – Steel, P5 Material classification: 1.1120 (GS-20Mn5) 1.5419 (GS-22Mo4) 1.6571 (GS-34CrNiMo6) 1.6750 (GS-20NiCrMo3-7) 1.7231 (G42CrMo4) 1.7379 (GS-18CrMo9-10)	120 - 170
corner angles [EPSR]	90

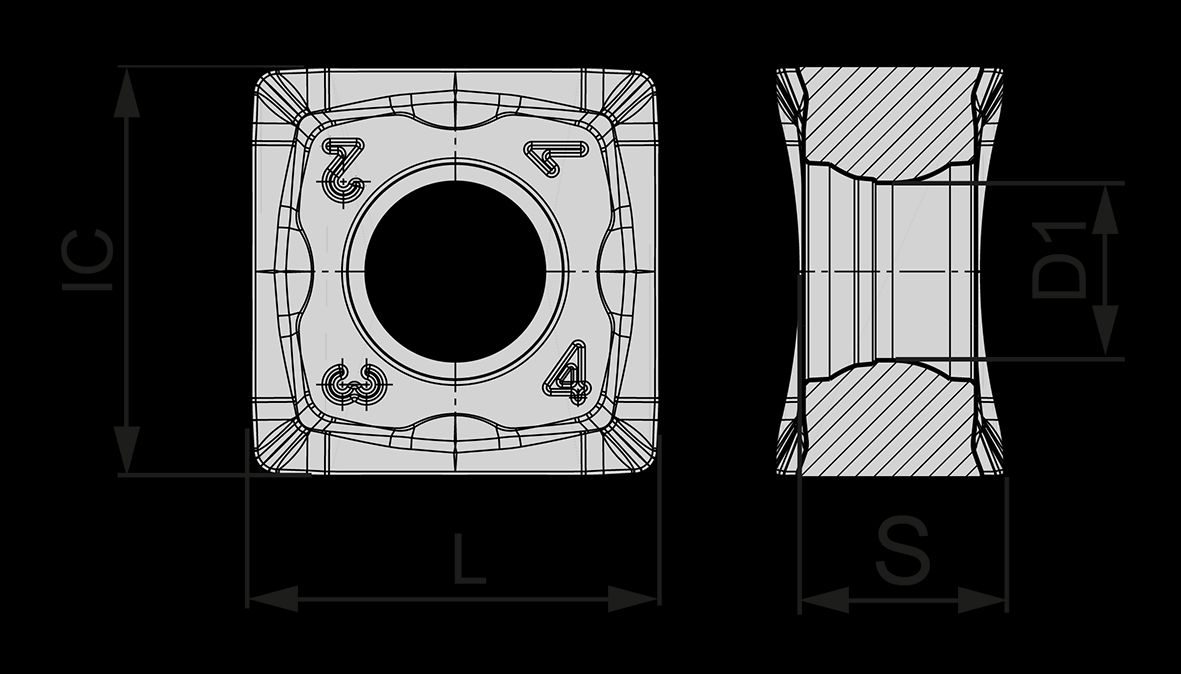

length of cutting edge [L]	12.7
inner circle [IC]	12,7
cutting edge height [S]	5.8
insert execution r/n/l [IH] AExecution of indexable insert running direction R= Indexable insert right hand cutting L= Indexable insert left hand cutting N= for both cutting directions	N
insert height [S1]	6.35
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	BCP35M
coating [COATN] Description of coating.	PVD
Norm [NSM] Indicates the standard to which the product belongs.	DIN-4000-76
coating coating type CVD or PVD.	Goldlox PVD
insert size The size of the plate is specified in millimetres.	SNMX 1206
edges/ insert Number of usable cutting edges per indexable insert.	8
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	SNMX
