BF45 SN12.200 Z26 NC

Ordernumber

5085873

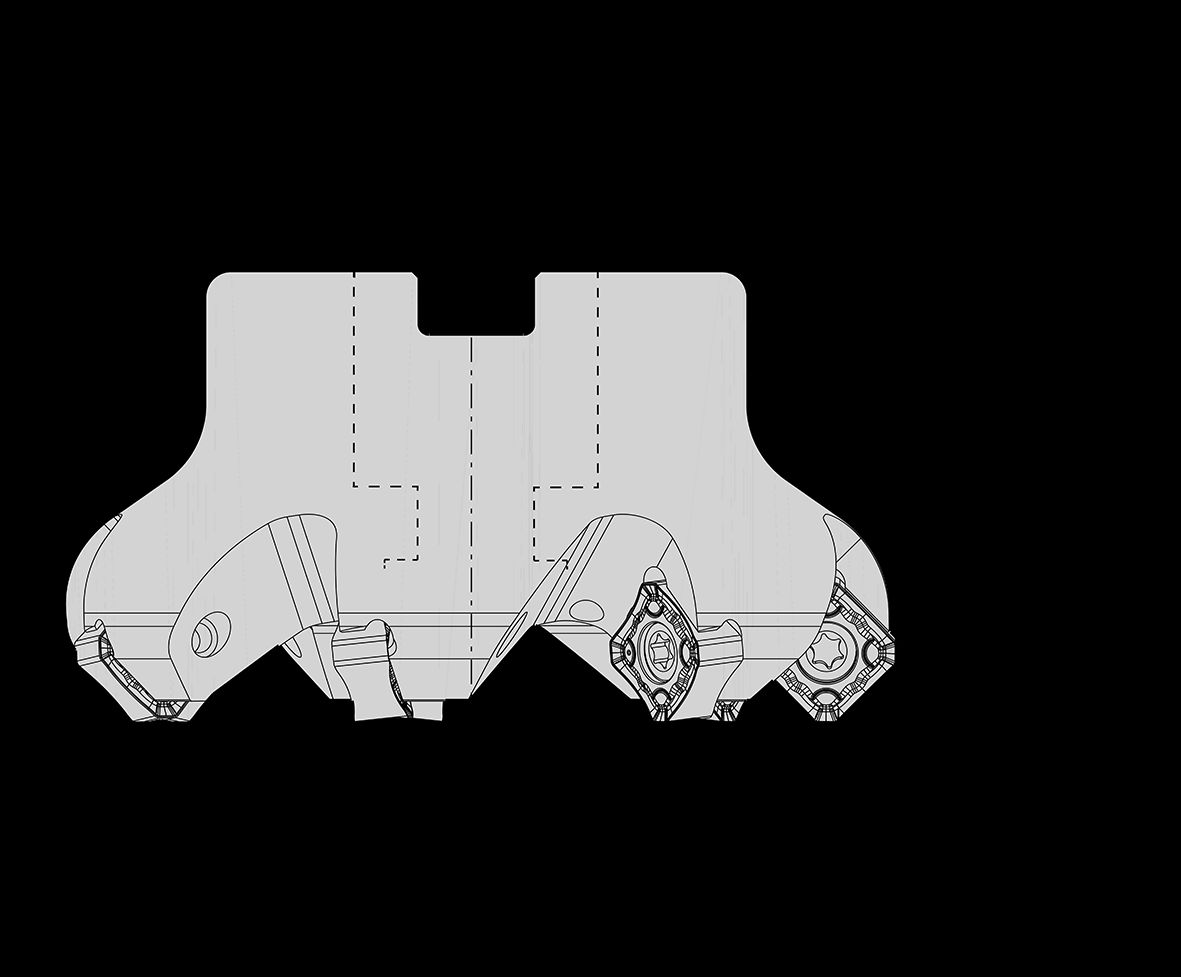

Face milling cutter THETAtec 45N

Face milling cutter made of steel without IC for holding indexable inserts from the THETAtec 45N system in system size 12.

Product data

delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	1
name of tool system Description of the tool system.	THETAtec 45N
connection diameter machine [DCONMS]	60
cutting direction [HAND]	R
tool execution [BMC]	S
cutting diamter [DC]	200
total length [OAL]	63
number of edges usable, face side [ZEFF] number of edges usable, face side.	26
cutting diamter 2 [DC2]	213.4
depth of cut max. [APMX]	6.5
hub diameter [DHUB]	164
cutter type A distinction is made between the following milling cutter types: End milling cutter Face milling cutter Screw on type	Aufsteckfräser
