BF45 XE04.052 Z05
Ordernumber
5103596
Face milling cutter ETAtec 45P
Multifunctional face milling cutter made of steel for holding indexable inserts for face or form milling from the ETAtec 45P system in system size XE04/ RE13.
Product data
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
name of tool system Description of the tool system. | ETAtec 45P |
| connection diameter machine [DCONMS] | 22 |
| cutting direction [HAND] | R |
| tool execution [BMC] | S |
| cutting diamter [DC] | 52 |
| total length [OAL] | 40 |
ramping angle max [RMPX] Maximum ramping angle of milling cutter. | 3.3 |
number of edges usable, face side [ZEFF] number of edges usable, face side. | 5 |
| cutting diamter 2 [DC2] | 59.5 |
| depth of cut max. [APMX] | 4 |
| hub diameter [DHUB] | 43 |
cutter type A distinction is made between the following milling cutter types:
| Aufsteckfräser |

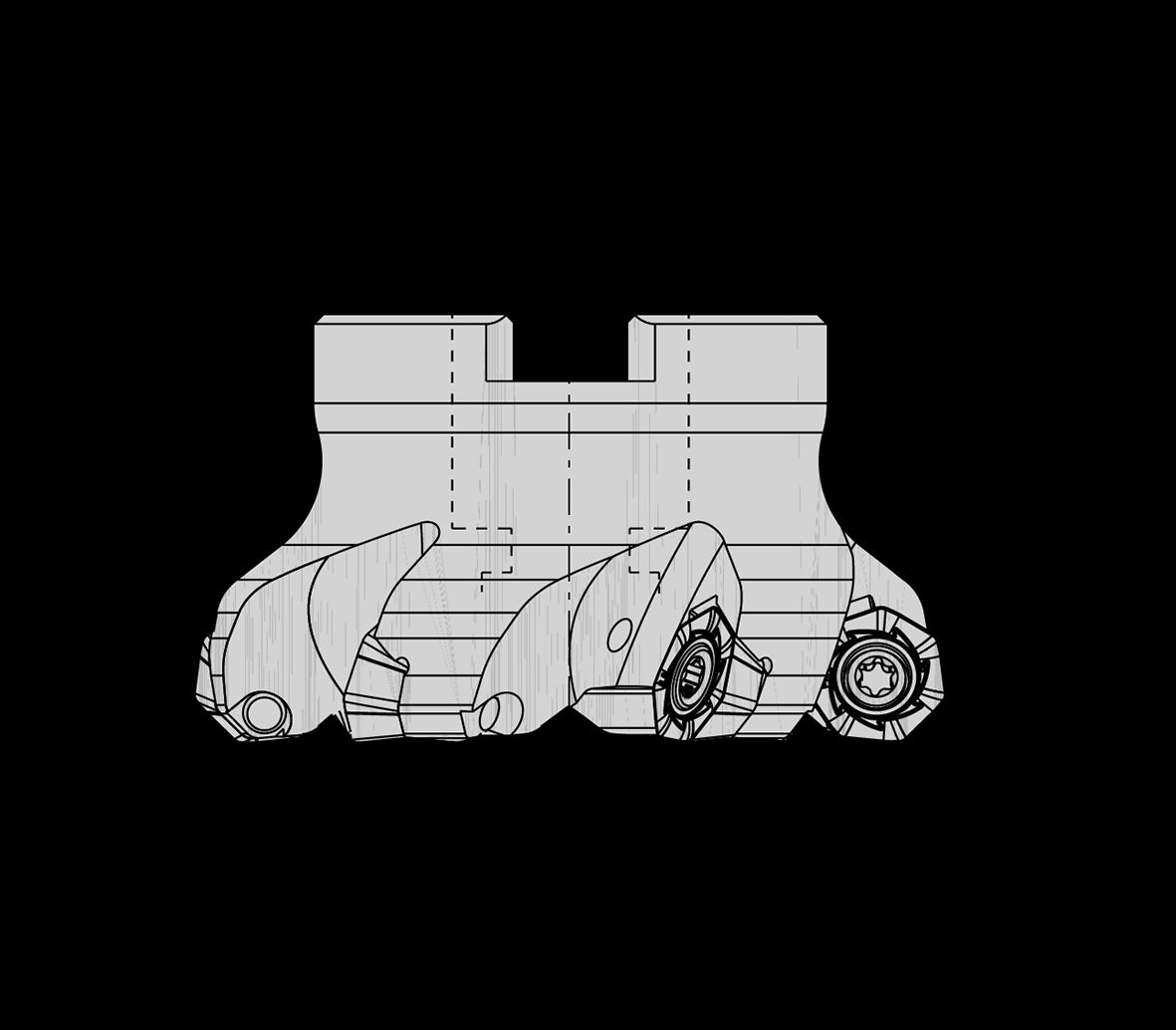

2D Drawing
