XEMW 040408-MH BCH10M

Ordernumber

5117579

Indexable insert for face milling

Positive, 7-edged indexable insert with microcrystalline, abrasive wear-resistant PVD coating, for medium machining in face milling of hardened materials up to max. 60 HRC.

Product data

chip breaker Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)	MH
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	BCH10M
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
name of tool system Description of the tool system.	ETAtec 45P
H1 main H – Hardened materials, hardened cast iron, H1 Material classification: 1.2343 52HRC (X38CrMoV5-1) 1.2767 54HRC (45NiCrMo16)	110 - 160
H2 main H – Hardened materials, hardened cast iron, H2 Material classification: 1.2714 60HRC (55NiCrMoV7) 1.2842 58HRC (90MnCrV8)	90 - 130
H3 main H – Hardened materials, hardened cast iron, H3 Material classification: 1.2080 64HRC (X210Cr12) 1.2436 63HRC (X210CrW12-1, X210CrW12)	70 - 110
H4 main H – Hardened materials, hardened cast iron, H4 Material classification: 0.9620 52HRC (G-X260NiCr42) 0.9650 53HRC (G-X260Cr27)	100 - 150

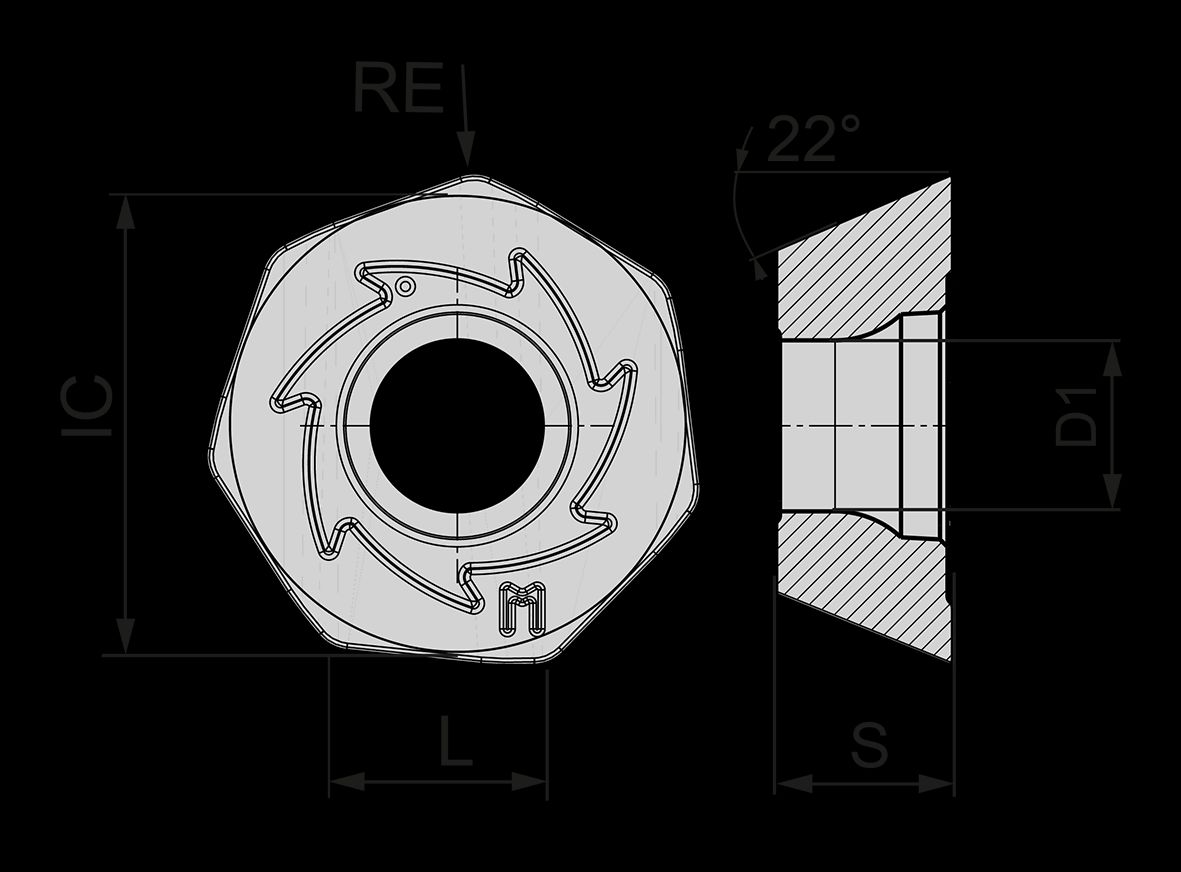

corner angles [EPSR]	45
clearance angle main cutting edge [AN]	20
length of cutting edge [L]	4
inner circle [IC]	12,7
cutting edge height [S]	6.55
corner radius [RE]	0.8
insert execution r/n/l [IH] AExecution of indexable insert running direction R= Indexable insert right hand cutting L= Indexable insert left hand cutting N= for both cutting directions	R
insert height [S1]	6.55
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	BCH10M
coating [COATN] Description of coating.	PVD
Norm [NSM] Indicates the standard to which the product belongs.	DIN-4000-76
K1 secondary K – Cast iron materials, K1 Material classification: 0.6010 (GG-10, GG 10) 0.6015 (GG-15, GG 15) 0.6020 (GG-20, GG 20) 0.6025 (GG-25, GG 25) 0.6030 (GG-30, GG 30) 0.6035 (GG-35, GG 35) 0.6040 (GG-40, GG 40)	280 - 490
K2 secondary K – Cast iron materials, K2 Material classification: 0.7040 (GGG-40) 0.7050 (GGG-50) 0.7060 (GGG-60) 0.7070 (GGG-70) 5.3400 (EN-GJS-800-10) 5.3403 (EN-GJS-1050-6) 5.3404 (EN-GJS-1200-3)	160 - 300
K3 secondary K – Cast iron materials, K3 Material classification: 0.8035 (GTW-35-04, EN-GJMW-350-4) 0.8040 (EN-GJMW-400-5, GTW-40-05) 0.8045 (EN-GJMW-450-7) 0.8135 (EN-GJMB 350-10) 0.8145 (EN-GJMB 450-6, GTS-45-06) 0.8155 (EN-GJMB 550-4, GTS-55-04) 0.8165 (EN-GJMB 650-2, GTS-65-02) 0.8170 (EN-GJMB 700-2, GTS-70-02)	220 - 340
P1 secondary	240 - 350
P2 secondary P – Steel, P2 Material classification: 1.2312 (40CrMnNiMoS8-6-4) 1.2714 (55NiCrMoV7) 1.3505 (100Cr6) 1.6587 (17CrNiMo6, 18CrNiMo7-6) 1.7225 (42CrMo4) 1.7361 (32CrMo12) 1.7715 (14MoV6-3) 1.8523 (39CrMoV13-9)	200 - 300
P3 secondary P – Steel, P3 Material classification: 1.2085 (X33CrS16) 1.2343 (X38CrMoV5-1) 1.2379 (X153CrMoV12) 1.2581 (X30WCrV9-3) 1.2601 (X165CrMoV12) 1.3243 (HS6-5-2-5) 1.3343 (HS6-5-2) 1.7701 (51CrMoV4)	170 - 250
P5 secondary P – Steel, P5 Material classification: 1.1120 (GS-20Mn5) 1.5419 (GS-22Mo4) 1.6571 (GS-34CrNiMo6) 1.6750 (GS-20NiCrMo3-7) 1.7231 (G42CrMo4) 1.7379 (GS-18CrMo9-10)	160 - 260
coating coating type CVD or PVD.	Ferrocon BOE
insert size The size of the plate is specified in millimetres.	XEMW 0404
edges/ insert Number of usable cutting edges per indexable insert.	7
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	XEMW
