BS45 XE04.040 Z04 M16
Ordernumber
5103628
Screw on type ETAtec 45P
Multifunctional steel base body with M16 connection thread for holding indexable inserts from the ETAtec 45P system in system size XE04/ RE13.
Product data
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
name of tool system Description of the tool system. | ETAtec 45P |
| connection diameter machine [DCONMS] | 16 |
| shank length [LS] | 23 |
| cutting direction [HAND] | R |
| cutting diamter [DC] | 40 |
| total length [OAL] | 66 |
| head length [LH] | 43 |
number of edges usable, circumference [ZEFP] Number of edges usable, circumference. | 4 |
number of edges usable, face side [ZEFF] number of edges usable, face side. | 4 |
cutter type A distinction is made between the following milling cutter types:
| Einschraubfräser |

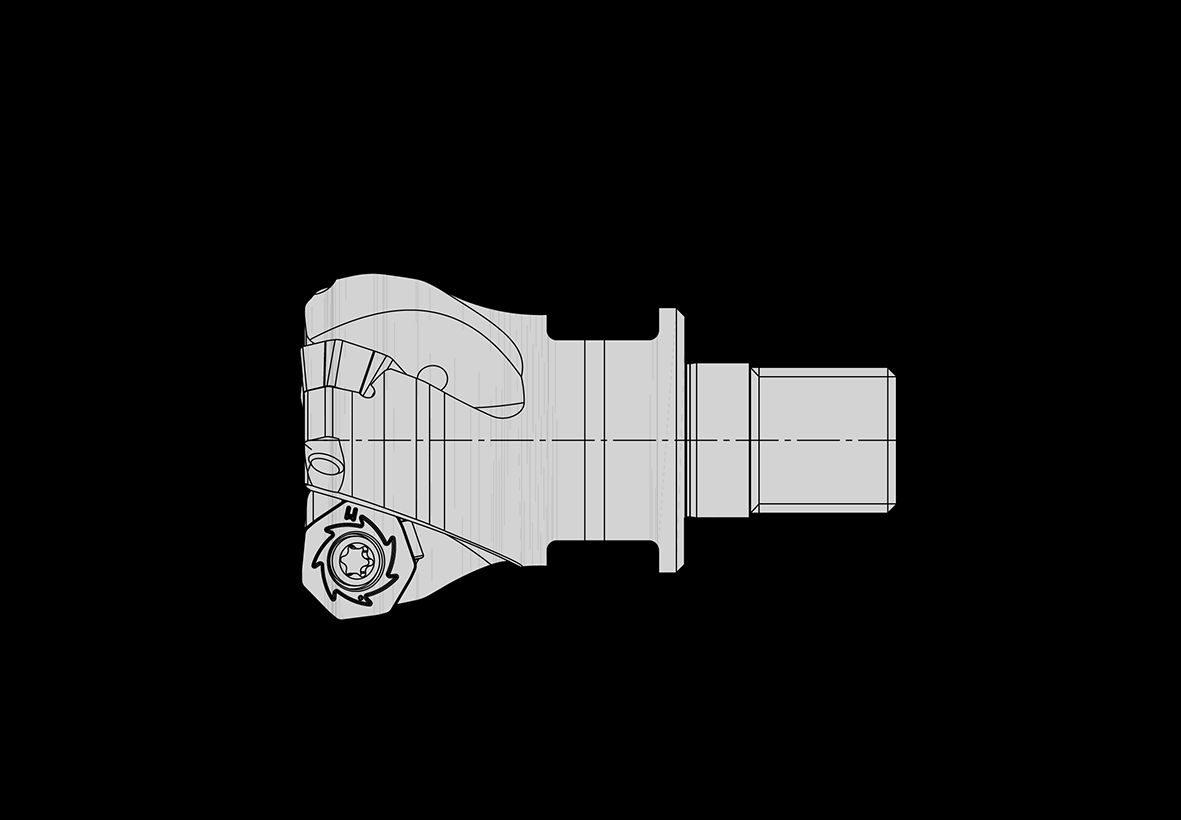

2D Drawing
