CCMT 060202-FM BCM40T

Cutting Turning Indexable inserts Turning

Ordernumber

5106721

Indexable insert for turning, internal & external

The tough stainless grade BCM40T has excellent emergency running properties and is ideal for frequently changing materials or workpieces. It is also ideal for superalloy applications with interrupted cuts.

The FM finishing geometry is ideally suited for low feed rates. Exact application details can be found in product data.

Product data

chip breaker Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)	FM
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	BCM40T
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
name of tool system Description of the tool system.	Drehen-ISO
M1 main M – Stainless steel, M1 Material classification: 1.4301 (X5CrNi18-10+F3:F21A3F3: F23F3:F24A3F3:F23F3:FF3:F24) 1.4305 (X8CrNiS18-9) 1.4401 (X5CrNiMo17-12-2, X4CrNiMo17-12-2, X5CrNiMo18-10) 1.4404 (X3CrNiMo17-12-2) 1.4541 (X6CrNiTi18-10) 1.4571 (X6CrNiMoTi17-12-2) 1.4841 (X15CrNiSi25-20) 1.4958 (X5NiCrAlTi31-20)	100 - 180
M2 main M – Stainless steel, M2 Material classification: 1.4362 (X2CrNiN23-4 (Ally 2304)) 1.4462 (X2CrNiMoN22-5-3) 1.4501 (X2CrNiMoCuWN25-7-4) 1.4871 (X53CrMnNiN21-9) 1.4310 (X9CrNi18-8, X10CrNi18-8)	70 - 160

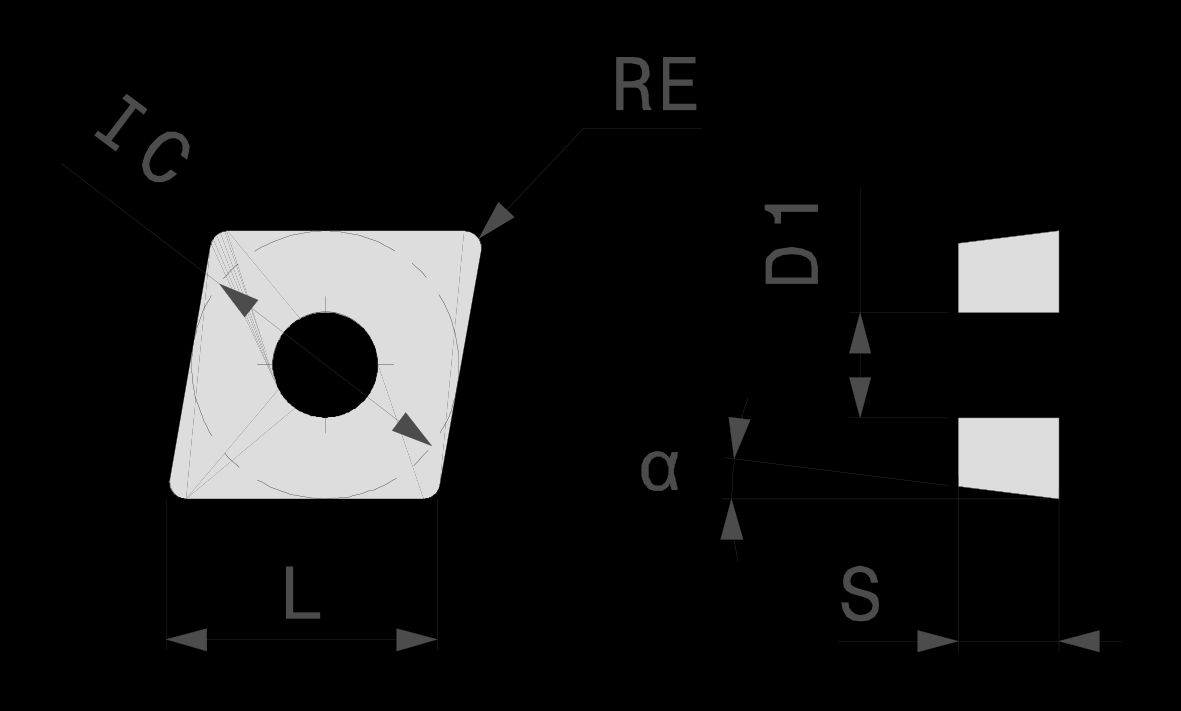

corner angles [EPSR]	80
clearance angle main cutting edge [AN]	7
length of cutting edge [L]	6.4
inner circle [IC]	6,35
cutting edge height [S]	2.38
corner radius [RE]	0.2
insert execution r/n/l [IH] AExecution of indexable insert running direction R= Indexable insert right hand cutting L= Indexable insert left hand cutting N= for both cutting directions	N
insert height [S1]	2.38
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	BCM40T
coating [COATN] Description of coating.	PVD
Norm [NSM] Indicates the standard to which the product belongs.	DIN-4000-76
S1 secondary S – Super alloys, S1 Material classification: 3.7024 (Ti99.5) 3.7025x (Ti99.8) 3.7034 (Ti99.7)	20 - 40
S2 secondary S – Super alloys, S2 Material classification: 3.7115.1 (TiAl5Sn2.5) 3.7124 (TiCu2) 3.7164 (TiAl6V4) 3.7165 (TiAl6V4) 3.7174 (TiAl6V4Sn2)	15 - 35
S3 secondary S – Super alloys, S3 Material classification: 1.3912 (D1) 1.3926 (FeNi48)	25 - 45
S4 secondary S – Super alloys, S4 Material classification: 2.4375 (NiCu30Al3Ti) 2.4642 (NiCr30Fe) 2.4665 (NiCr22Fe18Mo) 2.4668 (NiCr19Fe19Nb5Mo3) 2.4669 (NiCr15Fe7Ti2Al) 2.4858 (NiFe30Cr21Mo3) 2.4819 (NiMo16Cr15W) 2.4856 (NiCr22Mo9Nb)	15 - 40
coating coating type CVD or PVD.	Hyper-8
insert size The size of the plate is specified in millimetres.	CCMT 0602
edges/ insert Number of usable cutting edges per indexable insert.	2
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	CCMT
