RDKW 0702 MOS-MH BCH05M

Ordernumber

5117501

Indexable insert for 3D and face milling

Positive indexable insert with innovative nanostructured HR-CVD coating, high hot hardness and wear resistance without chip control, for finishing in die and mould making of materials up to max. 62 HRC under very stable ambient conditions.

Product data

chip breaker Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)	MH
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	BCH05M
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
name of tool system Description of the tool system.	ISO 00P
H1 main H – Hardened materials, hardened cast iron, H1 Material classification: 1.2343 52HRC (X38CrMoV5-1) 1.2767 54HRC (45NiCrMo16)	110 - 190
H2 main H – Hardened materials, hardened cast iron, H2 Material classification: 1.2714 60HRC (55NiCrMoV7) 1.2842 58HRC (90MnCrV8)	90 - 155
H3 main H – Hardened materials, hardened cast iron, H3 Material classification: 1.2080 64HRC (X210Cr12) 1.2436 63HRC (X210CrW12-1, X210CrW12)	70 - 130
H4 main H – Hardened materials, hardened cast iron, H4 Material classification: 0.9620 52HRC (G-X260NiCr42) 0.9650 53HRC (G-X260Cr27)	100 - 180

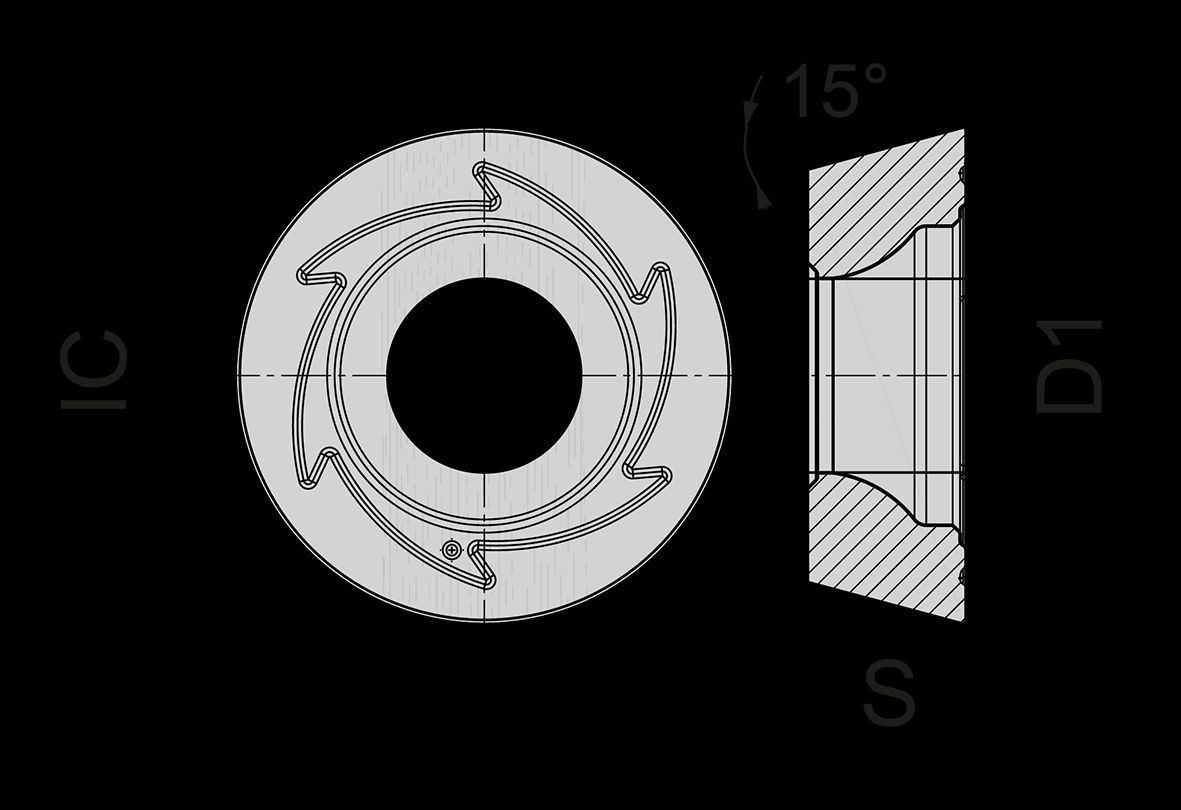

clearance angle main cutting edge [AN]	15
inner circle [IC]	7
cutting edge height [S]	2.38
corner radius [RE]	3.5
insert execution r/n/l [IH] AExecution of indexable insert running direction R= Indexable insert right hand cutting L= Indexable insert left hand cutting N= for both cutting directions	N
insert height [S1]	2.38
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	BCH05M
coating [COATN] Description of coating.	CVD
Norm [NSM] Indicates the standard to which the product belongs.	DIN-4000-76
K1 secondary K – Cast iron materials, K1 Material classification: 0.6010 (GG-10, GG 10) 0.6015 (GG-15, GG 15) 0.6020 (GG-20, GG 20) 0.6025 (GG-25, GG 25) 0.6030 (GG-30, GG 30) 0.6035 (GG-35, GG 35) 0.6040 (GG-40, GG 40)	280 - 490
K2 secondary K – Cast iron materials, K2 Material classification: 0.7040 (GGG-40) 0.7050 (GGG-50) 0.7060 (GGG-60) 0.7070 (GGG-70) 5.3400 (EN-GJS-800-10) 5.3403 (EN-GJS-1050-6) 5.3404 (EN-GJS-1200-3)	160 - 310
K3 secondary K – Cast iron materials, K3 Material classification: 0.8035 (GTW-35-04, EN-GJMW-350-4) 0.8040 (EN-GJMW-400-5, GTW-40-05) 0.8045 (EN-GJMW-450-7) 0.8135 (EN-GJMB 350-10) 0.8145 (EN-GJMB 450-6, GTS-45-06) 0.8155 (EN-GJMB 550-4, GTS-55-04) 0.8165 (EN-GJMB 650-2, GTS-65-02) 0.8170 (EN-GJMB 700-2, GTS-70-02)	220 - 330
P1 secondary	260 - 440
P2 secondary P – Steel, P2 Material classification: 1.2312 (40CrMnNiMoS8-6-4) 1.2714 (55NiCrMoV7) 1.3505 (100Cr6) 1.6587 (17CrNiMo6, 18CrNiMo7-6) 1.7225 (42CrMo4) 1.7361 (32CrMo12) 1.7715 (14MoV6-3) 1.8523 (39CrMoV13-9)	220 - 400
P3 secondary P – Steel, P3 Material classification: 1.2085 (X33CrS16) 1.2343 (X38CrMoV5-1) 1.2379 (X153CrMoV12) 1.2581 (X30WCrV9-3) 1.2601 (X165CrMoV12) 1.3243 (HS6-5-2-5) 1.3343 (HS6-5-2) 1.7701 (51CrMoV4)	180 - 360
P5 secondary P – Steel, P5 Material classification: 1.1120 (GS-20Mn5) 1.5419 (GS-22Mo4) 1.6571 (GS-34CrNiMo6) 1.6750 (GS-20NiCrMo3-7) 1.7231 (G42CrMo4) 1.7379 (GS-18CrMo9-10)	170 - 370
coating coating type CVD or PVD.	Teraspeed 2
insert size The size of the plate is specified in millimetres.	RDKW 0702
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	RDKW
