RDKW 0702 MOS-MM BCM40M

Ordernumber

5117539

Indexable insert for 3D and face milling

Positive indexable insert with fine-grained substrate and specially developed PVD coating for milling austenitic, stainless materials and the duplex group. Also for wet machining, however MMS is recommended.

Product data

chip breaker Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)	MM
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	BCM40M
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
name of tool system Description of the tool system.	ISO 00P
M1 main M – Stainless steel, M1 Material classification: 1.4301 (X5CrNi18-10+F3:F21A3F3: F23F3:F24A3F3:F23F3:FF3:F24) 1.4305 (X8CrNiS18-9) 1.4401 (X5CrNiMo17-12-2, X4CrNiMo17-12-2, X5CrNiMo18-10) 1.4404 (X3CrNiMo17-12-2) 1.4541 (X6CrNiTi18-10) 1.4571 (X6CrNiMoTi17-12-2) 1.4841 (X15CrNiSi25-20) 1.4958 (X5NiCrAlTi31-20)	110 - 190
M2 main M – Stainless steel, M2 Material classification: 1.4362 (X2CrNiN23-4 (Ally 2304)) 1.4462 (X2CrNiMoN22-5-3) 1.4501 (X2CrNiMoCuWN25-7-4) 1.4871 (X53CrMnNiN21-9) 1.4310 (X9CrNi18-8, X10CrNi18-8)	70 - 145

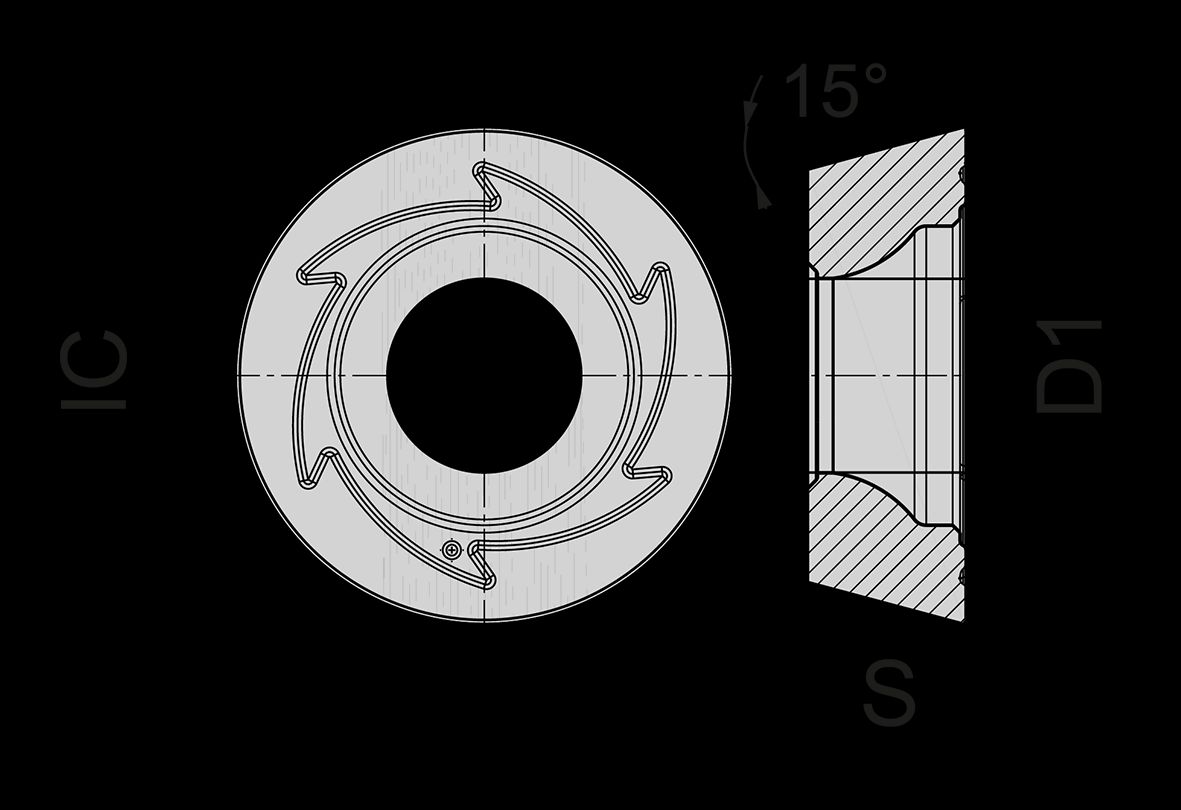

clearance angle main cutting edge [AN]	15
inner circle [IC]	7
cutting edge height [S]	2.38
corner radius [RE]	3.5
insert execution r/n/l [IH] AExecution of indexable insert running direction R= Indexable insert right hand cutting L= Indexable insert left hand cutting N= for both cutting directions	N
insert height [S1]	2.38
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	BCM40M
coating [COATN] Description of coating.	PVD
Norm [NSM] Indicates the standard to which the product belongs.	DIN-4000-76
S1 secondary S – Super alloys, S1 Material classification: 3.7024 (Ti99.5) 3.7025x (Ti99.8) 3.7034 (Ti99.7)	55 - 95
S2 secondary S – Super alloys, S2 Material classification: 3.7115.1 (TiAl5Sn2.5) 3.7124 (TiCu2) 3.7164 (TiAl6V4) 3.7165 (TiAl6V4) 3.7174 (TiAl6V4Sn2)	25 - 50
S3 secondary S – Super alloys, S3 Material classification: 1.3912 (D1) 1.3926 (FeNi48)	30 - 90
S4 secondary S – Super alloys, S4 Material classification: 2.4375 (NiCu30Al3Ti) 2.4642 (NiCr30Fe) 2.4665 (NiCr22Fe18Mo) 2.4668 (NiCr19Fe19Nb5Mo3) 2.4669 (NiCr15Fe7Ti2Al) 2.4858 (NiFe30Cr21Mo3) 2.4819 (NiMo16Cr15W) 2.4856 (NiCr22Mo9Nb)	25 - 65
P1 secondary	200 - 310
P2 secondary P – Steel, P2 Material classification: 1.2312 (40CrMnNiMoS8-6-4) 1.2714 (55NiCrMoV7) 1.3505 (100Cr6) 1.6587 (17CrNiMo6, 18CrNiMo7-6) 1.7225 (42CrMo4) 1.7361 (32CrMo12) 1.7715 (14MoV6-3) 1.8523 (39CrMoV13-9)	160 - 265
P3 secondary P – Steel, P3 Material classification: 1.2085 (X33CrS16) 1.2343 (X38CrMoV5-1) 1.2379 (X153CrMoV12) 1.2581 (X30WCrV9-3) 1.2601 (X165CrMoV12) 1.3243 (HS6-5-2-5) 1.3343 (HS6-5-2) 1.7701 (51CrMoV4)	130 - 205
P4 secondary P – Steel, P4 Material classification: 1.4006 (X12Cr13, X10Cr13) 1.4034 (X46Cr13) 1.4057 (X19CrNi17-2) 1.4510 (X3CrTi17) 1.4542 (X5CrNiCuNb16-4) 1.4747 (X80CrNiSi20)	120 - 180
P5 secondary P – Steel, P5 Material classification: 1.1120 (GS-20Mn5) 1.5419 (GS-22Mo4) 1.6571 (GS-34CrNiMo6) 1.6750 (GS-20NiCrMo3-7) 1.7231 (G42CrMo4) 1.7379 (GS-18CrMo9-10)	130 - 220
coating coating type CVD or PVD.	Chronos
insert size The size of the plate is specified in millimetres.	RDKW 0702
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	RDKW
