BF90 VC22.066 Z04
Ordernumber
5154261
Face milling cutter ISO Plunge 90P
Face milling cutter made of steel for holding 90° indexable inserts from the ISO Plunge 90P system in system size 22.
Product data
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
name of tool system Description of the tool system. | ISO Plunge |
| cutting direction [HAND] | R |
| tool execution [BMC] | S |
| cutting diamter [DC] | 66 |
ramping angle max [RMPX] Maximum ramping angle of milling cutter. | 12.5 |
number of edges usable, face side [ZEFF] number of edges usable, face side. | 4 |
| depth of cut max. [APMX] | 15 |
| hub diameter [DHUB] | 50 |
cutter type A distinction is made between the following milling cutter types:
| Aufsteckfräser |

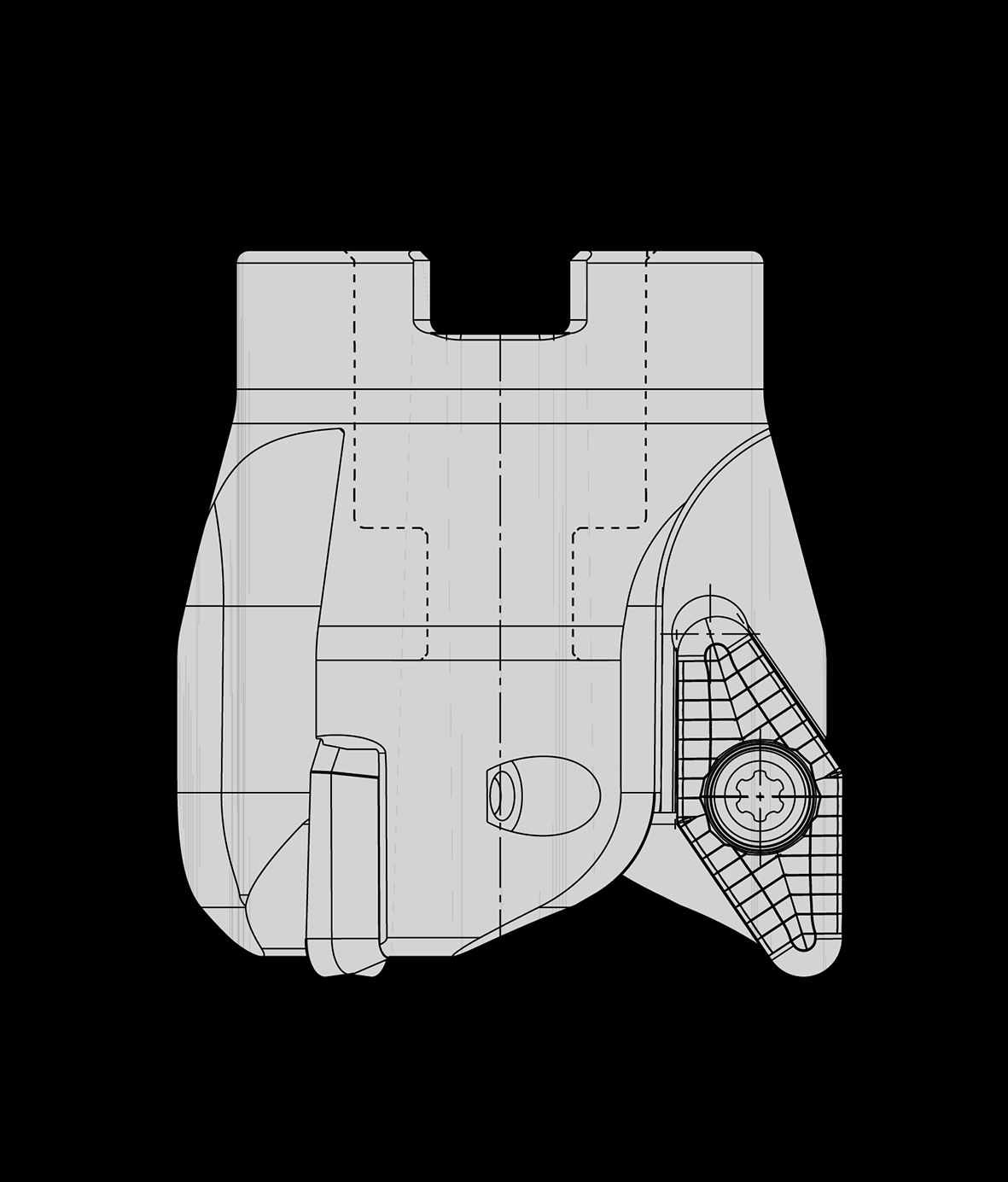

2D Drawing
