BS90 VC22.042 Z03 M16
Ordernumber
5154299
Screw on type ISO Plunge 90P
Steel base body with M16 connection thread and cylindrical functional length for holding indexable inserts from the ISO Plunge 90P system in system size 22.
Product data
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
name of tool system Description of the tool system. | ISO Plunge |
| connection diameter machine [DCONMS] | 16 |
| shank length [LS] | 24 |
| cutting direction [HAND] | R |
| cutting diamter [DC] | 42 |
| total length [OAL] | 71 |
| head length [LH] | 47 |
number of edges usable, circumference [ZEFP] Number of edges usable, circumference. | 3 |
number of edges usable, face side [ZEFF] number of edges usable, face side. | 3 |
cutter type A distinction is made between the following milling cutter types:
| Einschraubfräser |

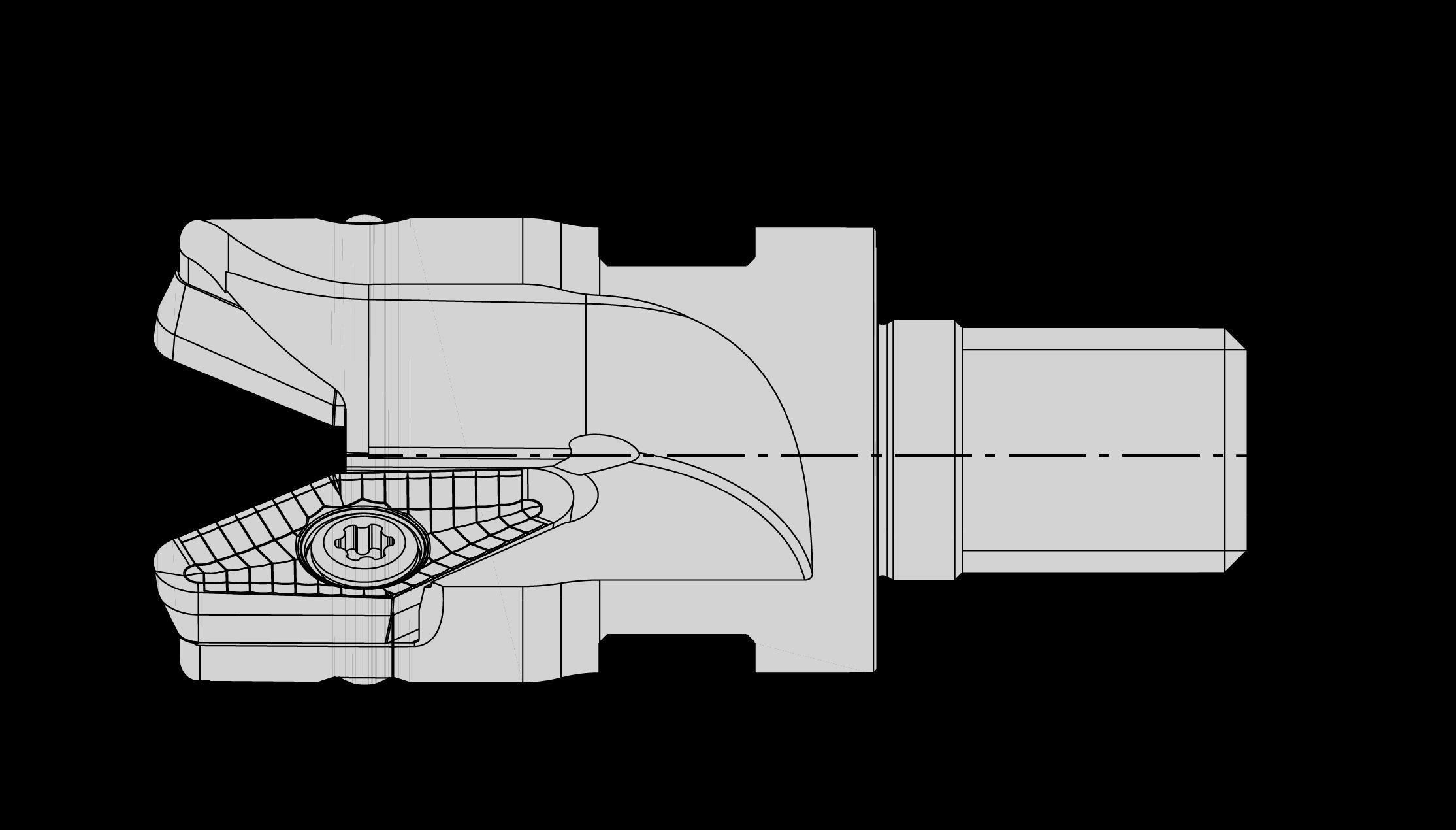

2D Drawing
