RPMX 10T3 MO-MS BCS35M

Ordernumber

5155839

Indexable insert for 3D and face milling

Positive, 8-fold indexable insert with specially designed chip control and a balanced hardness-toughness ratio and high-feed machining on materials with a high Cr content, Ni-based and titanium alloys. Higher cutting speeds required to increase the hot hardness of this grade.

Product data

chip breaker Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)	MS
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	BCS35M
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
S1 main S – Super alloys, S1 Material classification: 3.7024 (Ti99.5) 3.7025x (Ti99.8) 3.7034 (Ti99.7)	65 - 80
S2 main S – Super alloys, S2 Material classification: 3.7115.1 (TiAl5Sn2.5) 3.7124 (TiCu2) 3.7164 (TiAl6V4) 3.7165 (TiAl6V4) 3.7174 (TiAl6V4Sn2)	30 - 45
S3 main S – Super alloys, S3 Material classification: 1.3912 (D1) 1.3926 (FeNi48)	40 - 90
S4 main S – Super alloys, S4 Material classification: 2.4375 (NiCu30Al3Ti) 2.4642 (NiCr30Fe) 2.4665 (NiCr22Fe18Mo) 2.4668 (NiCr19Fe19Nb5Mo3) 2.4669 (NiCr15Fe7Ti2Al) 2.4858 (NiFe30Cr21Mo3) 2.4819 (NiMo16Cr15W) 2.4856 (NiCr22Mo9Nb)	30 - 70
clearance angle main cutting edge [AN]	11
inner circle [IC]	10
cutting edge height [S]	3.97
corner radius [RE]	5
insert execution r/n/l [IH] AExecution of indexable insert running direction R= Indexable insert right hand cutting L= Indexable insert left hand cutting N= for both cutting directions	N
insert height [S1]	3.97
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	BCS35M
coating [COATN] Description of coating.	PVD
Norm [NSM] Indicates the standard to which the product belongs.	DIN-4000-76
M1 secondary M – Stainless steel, M1 Material classification: 1.4301 (X5CrNi18-10+F3:F21A3F3: F23F3:F24A3F3:F23F3:FF3:F24) 1.4305 (X8CrNiS18-9) 1.4401 (X5CrNiMo17-12-2, X4CrNiMo17-12-2, X5CrNiMo18-10) 1.4404 (X3CrNiMo17-12-2) 1.4541 (X6CrNiTi18-10) 1.4571 (X6CrNiMoTi17-12-2) 1.4841 (X15CrNiSi25-20) 1.4958 (X5NiCrAlTi31-20)	100 - 150
M2 secondary M – Stainless steel, M2 Material classification: 1.4362 (X2CrNiN23-4 (Ally 2304)) 1.4462 (X2CrNiMoN22-5-3) 1.4501 (X2CrNiMoCuWN25-7-4) 1.4871 (X53CrMnNiN21-9) 1.4310 (X9CrNi18-8, X10CrNi18-8)	70 - 110
coating coating type CVD or PVD.	Inoxacon BOE
insert size The size of the plate is specified in millimetres.	RPMX 10T3
edges/ insert Number of usable cutting edges per indexable insert.	8
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	RPMX

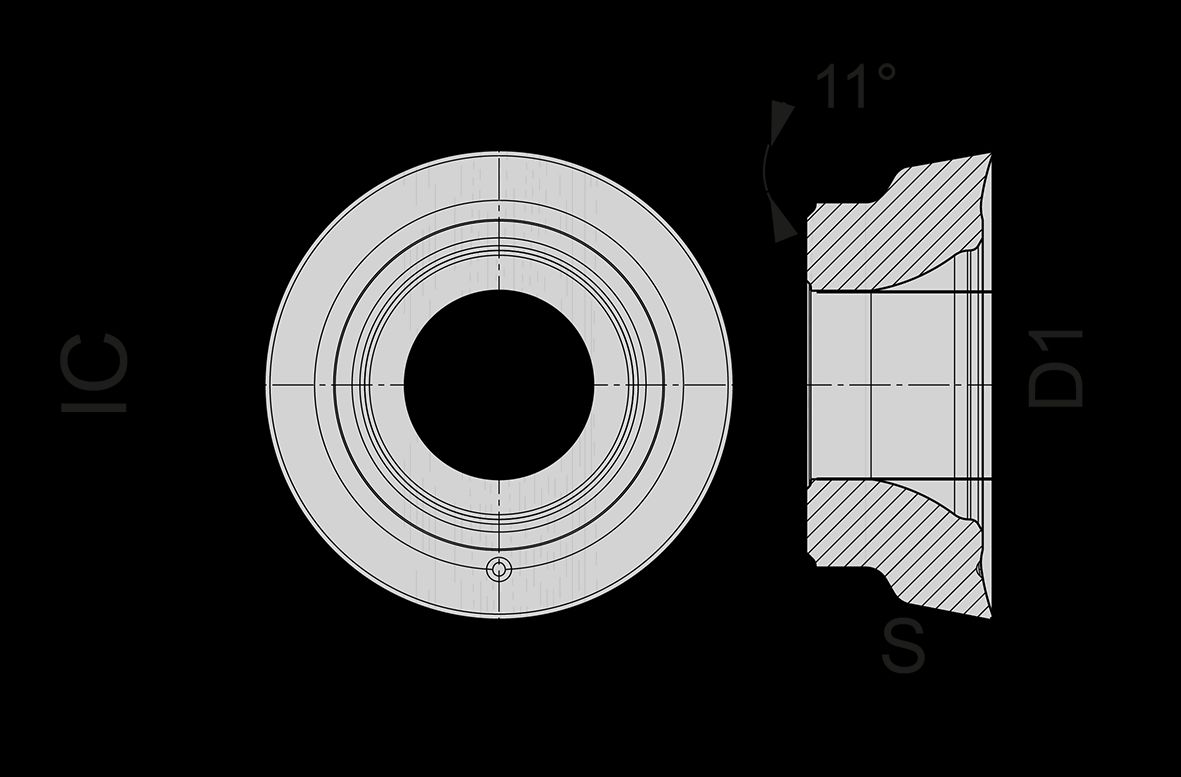

2D Drawing
