BS03 RX10.032 Z04 M16
Ordernumber
5157171
Screw on type VARIOtec 00P
Steel base body with M16 connection thread and cylindrical functional length for holding indexable inserts from the VARIOtec 00P system in system size 10.
Product data
delivery quantiy min The minimum delivery quantity must be fulfilled for an order. | 1 |
name of tool system Description of the tool system. | VARIOtec |
| connection diameter machine [DCONMS] | 16 |
| cutting direction [HAND] | R |
| cutting diamter [DC] | 32 |
number of edges usable, circumference [ZEFP] Number of edges usable, circumference. | 4 |
number of edges usable, face side [ZEFF] number of edges usable, face side. | 4 |
cutter type A distinction is made between the following milling cutter types:
| Einschraubfräser |

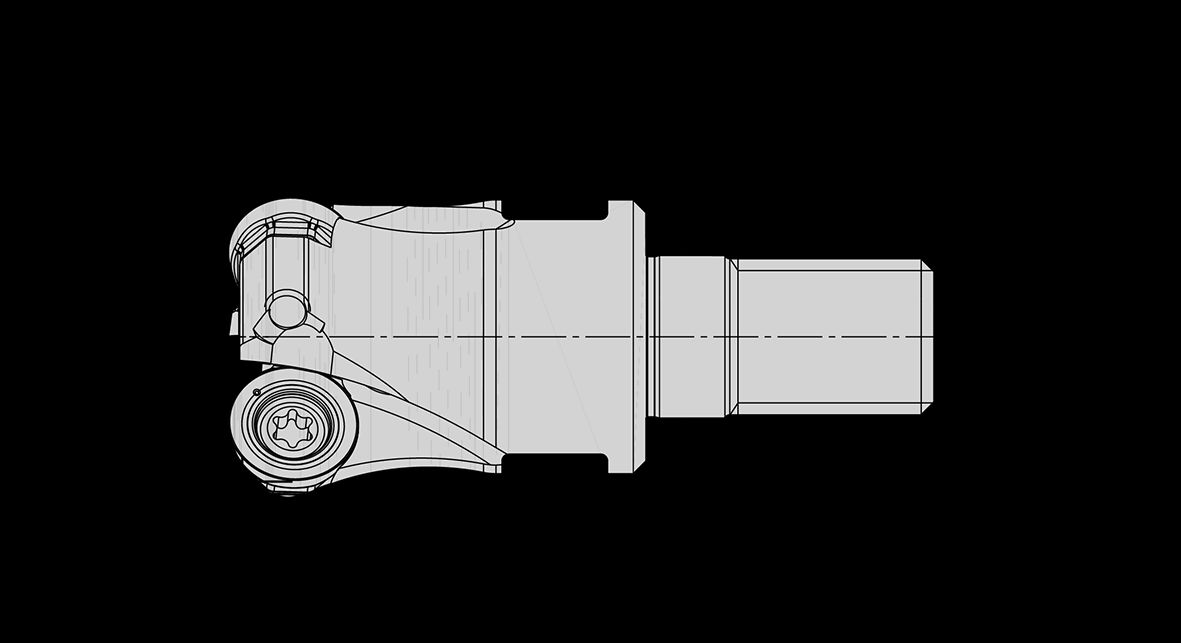

2D Drawing
