RPMX 10T3 M0-MS BCS40M

Ordernumber

5167407

Indexable insert for 3D and face milling

Positive, 8-fold indexable insert with specially designed chip control and tough fine-grained substrate for high-feed machining on materials on Ni-based and titanium alloys. Higher cutting speeds required to increase the hot hardness of this grade.

Product data

chip breaker Description of chip breaker (z.B.: MP= medium application steel , RKH= roughing application cast ironHFC, FMP= Fine and medium application steel,...)	MS
grade Description of cutting grade (f.e. BCP25M, BCK20M, BCP20T, etc.).	BCS40M
delivery quantiy min The minimum delivery quantity must be fulfilled for an order.	10
name of tool system Description of the tool system.	VARIOtec 00P
S1 main S – Super alloys, S1 Material classification: 3.7024 (Ti99.5) 3.7025x (Ti99.8) 3.7034 (Ti99.7)	65 - 100
S2 main S – Super alloys, S2 Material classification: 3.7115.1 (TiAl5Sn2.5) 3.7124 (TiCu2) 3.7164 (TiAl6V4) 3.7165 (TiAl6V4) 3.7174 (TiAl6V4Sn2)	30 - 70
S3 main S – Super alloys, S3 Material classification: 1.3912 (D1) 1.3926 (FeNi48)	40 - 115
S4 main S – Super alloys, S4 Material classification: 2.4375 (NiCu30Al3Ti) 2.4642 (NiCr30Fe) 2.4665 (NiCr22Fe18Mo) 2.4668 (NiCr19Fe19Nb5Mo3) 2.4669 (NiCr15Fe7Ti2Al) 2.4858 (NiFe30Cr21Mo3) 2.4819 (NiMo16Cr15W) 2.4856 (NiCr22Mo9Nb)	30 - 90
clearance angle main cutting edge [AN]	11
inner circle [IC]	10
cutting edge height [S]	3.97
corner radius [RE]	5
insert execution r/n/l [IH] AExecution of indexable insert running direction R= Indexable insert right hand cutting L= Indexable insert left hand cutting N= for both cutting directions	N
insert height [S1]	3.97
cutting material [GRADE] Description of grade(f.e.BCP25M, BCK20M, BCP20T, etc.).	BCS40M
coating [COATN] Description of coating.	PVD
Norm [NSM] Indicates the standard to which the product belongs.	DIN-4000-76
M1 secondary M – Stainless steel, M1 Material classification: 1.4301 (X5CrNi18-10+F3:F21A3F3: F23F3:F24A3F3:F23F3:FF3:F24) 1.4305 (X8CrNiS18-9) 1.4401 (X5CrNiMo17-12-2, X4CrNiMo17-12-2, X5CrNiMo18-10) 1.4404 (X3CrNiMo17-12-2) 1.4541 (X6CrNiTi18-10) 1.4571 (X6CrNiMoTi17-12-2) 1.4841 (X15CrNiSi25-20) 1.4958 (X5NiCrAlTi31-20)	100 - 180
M2 secondary M – Stainless steel, M2 Material classification: 1.4362 (X2CrNiN23-4 (Ally 2304)) 1.4462 (X2CrNiMoN22-5-3) 1.4501 (X2CrNiMoCuWN25-7-4) 1.4871 (X53CrMnNiN21-9) 1.4310 (X9CrNi18-8, X10CrNi18-8)	70 - 130
coating coating type CVD or PVD.	Inoxacon BOE
insert size The size of the plate is specified in millimetres.	RPMX 10T3
edges/ insert Number of usable cutting edges per indexable insert.	8
insert shape The insert-type describes the shape of the insert. Example: CNMG, DCMT, XCMT etc.	RPMX

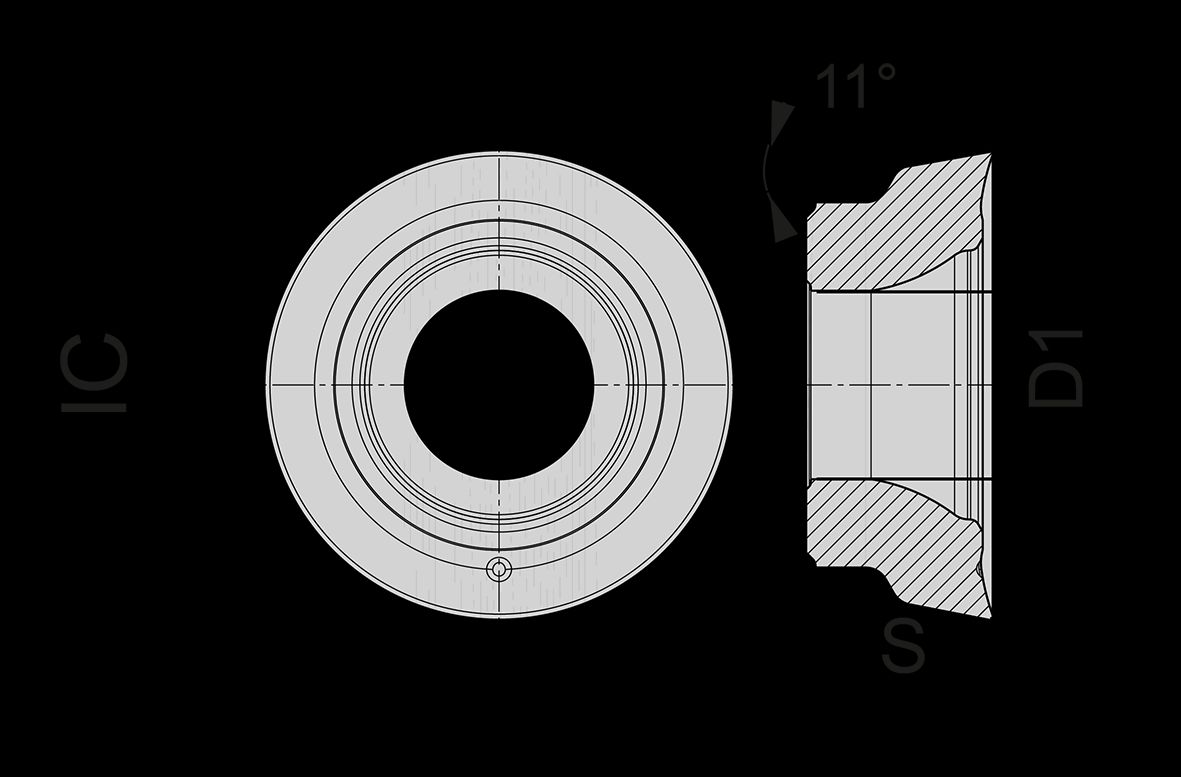

2D Drawing
